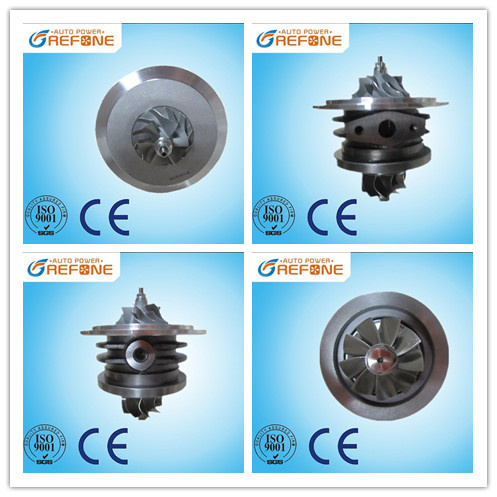

Citroen, Peugeot GT1549P Turbo core assy chra cartridge 707240-0003
Product Description
| Part Number | 707240-5003S |
| Previous Version | 707240-0003, 707240-0002, 707240-5002S |
| OE number | 9649588680, 71783737, 0375J4, 9662465180, 71723518 |
| Year | 2001- |
| Description | Citroen Evasion 2 (Synergie 2), Lancia ZETA 2, Phedra 2.2L HDI, Peugeot 807 2.2L HDi, Fiat Ulysse II |
| CHRA | 702378-0013 (702378-5013S, 702378-0015) |
| Turbo Model | GT1549P |
| Engine | DW12TED4S |
| Displacement | 2.2L, 2200 ccm, 4 Cylinders |
| KW | 95/129 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 48º |
| Angle β (turbine housing) | 144º |
| Bearing Housing | 701198-0009/713782-0004 |
| Turbine Wheel | 702177-0002 |
| Comp. Wheel | 703928-0002/436132-0002 |
| Back plate | 700593-0003/703682-0056 |
| Heat shield Number | 702177-0002 |
| Repair Kit | 732252-0001 $97.60 |
| Turbine Housing AR | VNTOP |
| Gasket (turbine inlet) | 210243 |
| Gasket (oil outlet) | 210500 |
| Replaced by | 707240-5002S |
Applications:
2001-07 Peugeot 807 2.2L HDi with DW12TED4S Engine
2001- Lancia ZETA 2, Phedra 2.2L HDI with DW12TED4S Engine
2001- Citroen Evasion 2 (Synergie 2) 2.2L HDi with DW12TED4S Engine
2001- Fiat Ulysse II 2.2 JTD with DW12TED4S Engine
Company Description:
Refone is a group company which engaged in turbocharger and turbo parts manufacturing and exporting.
Our teams are excellent technical engineers and experienced sales. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly.
We are looking forward to build long business relationship with worldwide friends.
Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Advantage
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Produce turbo as customer's requirment.
Our After-sale Service
1. Take photos, sending back for testing
2. Send new turbo to customer
Welcome to inquire! We will feedback within 24 hours!
Contact us
Gavin Wang
Tel: 86055165617152
Fax: 86055165613152
Mobile: 8618133658726
| CT | 17201-0L030 | Toyota Hilux D Cab 2.5L D;
Toyota Land Cruiser 2KD-FTV;
Toyota Hiace, Hilux Vigo 2KD-FTV D |
| CT, CT16V | 17201-30010/30011 | 2000- Toyota Land Cruiser with 1KD-FTV Engine |
| CT16V | 17201-0L040 | 2006- Toyota Hilux SW4 and Landcruiser 1KD-FTV |
| CT, CT16V | 17201-30100/30110 | 2000- Toyota Land Cruiser D-4D With 1KD-FTV Engine |
| CT16V | 17201-30110 | 2005- Toyota Hi-Lux, Landcruiser with 1KD-FTV Engine
Daihatsu Delta 3.0L 1KD |
| CT10, CT9 | 17201-30030 | 2001- Toyota HIACE, Land Cruiser 2KD-FTV |
| CT | 17201-30120 | Toytoa Land Cruiser, Hi-Lux with 2KD-FTV Engine |
| CT9, CT2 | 17201-33010 | 2002-2006 BMW Mini One D (R50) Engine W17
2001- Toyota Yaris D4-D Engine NLP20 |
| CT9 | 17201-33020 | 2001- Toyota Yaris D4-D Engine NLP20
2002-2006 BMW Mini One D (R50) Engine W17 |
| CT20 | 17201-54081 | Toyota 2L-T engine |
| CT9 | 17201-54090 | 1998- Toyota Hiace, Hilux, Land Cruiser with 2L-T Engine |
| CT12 | 17201-64020 | TOYOTA 2C FWD Engine |
| CT12B | 17201-58040 | 1996- Toyota Hiace, Mega Cruiser Engine 15BFT |
| CT12B | 17201-58050 | 1996- Toyota Hiace, Mega Cruiser Engine 15BFT |
| CT12, CT2063 | 17201-64040 | 1988-1991 Toyota Camry (CV10) with 2CT Engine |
| CT12B | 17201-67010 | 1993- Toyota Runner with 1KZTE - KNZ130 Engine
1996- Toyota Land Cruiser with 1KZTE - KNZ130 Engine |
| CT12B | 17201-67040 | 2000- Toyota Land Cruiser TD with 1KZ-TE Engine |
| CT12 | 17201-64050 | Toyota 2CT engine |
| CT9 | 17201-64090 | 1998- Toyota Hiace, Hilux, Land Cruiser with 2L-T Engine |
| CT9, CT12B | 17201-64110 | 1996- Toyota Carina E with 2CT Engine
1997- Toyota Avensis with 2CT Engine |
