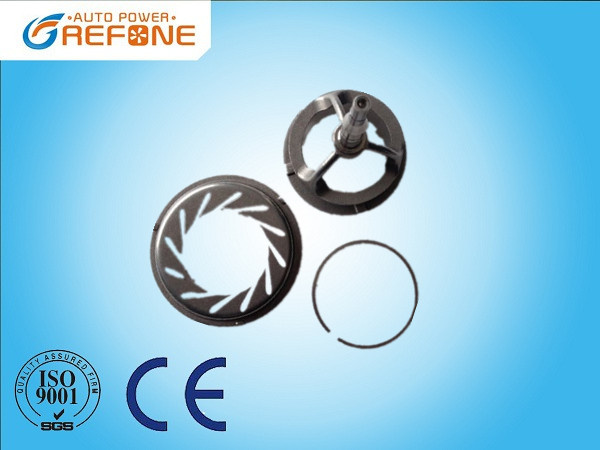

GT1549P 707240-1 turbo nozzle ring 433404-0008 715620-0001 VNT geometry
Product Description
| Part Number | 707240-5001S |
| Previous Version | 707240-0001, 732252-1 |
| OE number | 9641192380, 71723516, 0375H0 |
| Year | 2001- |
| Description | Citroen Evasion 2 (Synergie 2), Lancia ZETA 2, Phedra 2.2L HDI, Peugeot 807 2.2L HDi, Fiat Ulysse II |
| CHRA | 702378-0013 (702378-5013S, 702378-0015) |
| Turbo Model | GT1549P |
| Engine | DW12TED4S |
| Displacement | 2.2L, 2200 ccm, 4 Cylinders |
| KW | 95/129 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 48º |
| Angle β (turbine housing) | 144º |
| Bearing Housing | 701198-0009/713782-0004 |
| Turbine Wheel | 702177-0002 |
| Comp. Wheel | 703928-0002/436132-0002 |
| Back plate | 700593-0003/703682-0056 |
| Heat shield Number | 702177-0002 |
| Repair Kit | 732252-0001 |
| Turbine Housing AR | VNTOP |
| Gasket (turbine inlet) | 210243 |
| Gasket (oil outlet) | 210500 |
| Replaced by | 707240-5002S |
Applications
2001-07 Peugeot 807 2.2L HDi with DW12TED4S Engine
2001- Lancia ZETA 2, Phedra 2.2L HDI with DW12TED4S Engine
2001- Citroen Evasion 2 (Synergie 2) 2.2L HDi with DW12TED4S Engine
2001- Fiat Ulysse II 2.2 JTD with DW12TED4S Engine
Company Description:
Refone is a group company which engaged in turbocharger and turbo parts manufacturing and exporting.
Our teams are excellent technical engineers and experienced sales. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly.
We are looking forward to build long business relationship with worldwide friends.
Why choose us:
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and durable
5) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. Besides the price is at factory price, competitive
Our Service
1.12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
Welcome to contact us! We will feedback in 24 hours.
Contact us
Contact us
Gavin wang
Tel: 86055165617152
Fax: 86055165613152
Mobile: 8618133658726
| Model | Part Number | OE Number | Application |
| GT2256MS | 704136-5003S, 704136-0003, 704136-0001, 704136-0002, 704136-3 | 8973267520, 8972083520, 8972083521, 8971784860 | 1999- Isuzu Truck NPR with 4HG1-T Euro-1 Engine
|
| GT2256V | 751758-5001S 751758-0001 707114-0001 | 500379251 / 5001855042 | 2000 Iveco Commercial CAR VAN with 8140.43K.4000 Engine
2000 Iveco Commercial Daily 3.5 tonne with 8140.43K.4000 Engine
2000 Iveco Commercial Daily 6.5 tonne with 8140.43K.4000 Engine
2000 Iveco Commercial Daily C15 with 8140.43K.4000 Engine
2000 Renault Commercial Mascotte with 140.43K.4000 Engine
|
| GT2256V | 709838-0001 709837-0001, 709837-0002 | 6120960299, A6120960299, 6120960099, A6120960099 | 99-03 Mercedes Benz E270, M270 with OM612 Engine
1999-2002 Mercedes E-Class 270 CDI (W210) Engine OM612
1999-2002 Mercedes M-Class 270 CDI (W210) Engine OM612
|
| GT2256VK | 736088-0003 736088-0001 736088-0005 | 736088-0003, 736088-0001, 736088-0005, 736088-1, 736088-5 | 2004- Mercedes Benz Commercial Vehicle with OM647 DE LA 27Engine
|
| GT2359V | 709841-5001S 709841-0001, 709841-0002 | 6130960199, A6130960199 | 1999-2000 Mercedes E-Class 320 CDI (W210) Engine OM613
1998-2002 Mercedes S-Class 320 CDI (W220) Engine OM613 6 Cyl
|
| GT3576 | 750849-1, 479016-0001, 479016-0002, 750849-0001, 750849-0002, 750849-5001S | 241003251, 241003251C, 24100-3251C, 24100-3251 | 1997-2004 Hino Highway Truck with J08C-TI Engine
|
| GT3776 | 452159-5001S, 452159-0001, 452159-9001, 452159-0002, 452159-0003, 452159-1 | 87841189, 87801427 | 1994- Ford New Holland Agricultural Combine Harvester with EP040B Engine
1994- Ford Tractor TC 59 with CNH Engine
|
| GT37VA | 736554-5011S 736554-0007 736554-0006 736554-0011, 736554-0001, 736554-0002, 736554-0003, 736554-0004, 736554-0005, 736554-0006, 736554-0007, 736554-0008, 736554-9011 | 8973868232 , 8973878962 , 8973527060 , 8973527061 , 897352706C , 8973527064 8973527065 , 8973527066 , 8973527067 , 97387896, 8-97386-8232 , 8-97387-8962 , 8-97352-7060 , 8-97352-7061 , 8-97352-706C , 8-97352-7064 8-97352-7065 , 8-97352-7066 , 8-97352-7067 | 2003-06 GMC, Chevrolet Duramax 6.6L LLY Engine
2004-07 GMC, Chevrolet 7.8L Diesel, GMC T or C-Series, Isuzu F-Series
GMC LBZ DURAMAX
|
