Gt1544V 740611-5001s 782403-5001S 28201-2A100 Garrett Universal Turbocharger for Hyundai
Products Details| Part Number | 782403-5001S |
| Previous Version | 740611-0001, 740611-5001S, 782403-0001, 782403-1 |
| OE number | 282012A100, 28201-2A100, 28201A120, 28201-A120 |
| Year | 2005- |
| Description | Hyundai Matrix Getz KIA Cerato Rio |
| Turbo Model | GT1544V |
| Engine Manufacturer | Hyundai |
| Displacement | 1.5L, 1493/1500/1582 ccm, 4 Cylinders |
| KW | 65/75/81/85/102 HP |
| RPM Max | 4000 |
| Fuel | Diesel |
| Bearing Housing | Oil Cooled |
| Turbine Wheel | Inducer:39mm; Exducer:33.1mm, 11 Blades Call For Price |
| Comp. Wheel | Inducer:31.1mm; Exducer:44mm, 6 long 6 short Call For Price |
| Nozzle Ring Assembly | 750841-0003 Call For Price |
| Back plate | Call For Price |
| Heat shield Number | Call For Price |
| Turbine Housing AR | VNT1 |
| Gasket (turbine outlet) | 210611 (2405494, Metal Triangular) |
| Gasket (turbine inlet) | 210818 (2495168, Metal Triangular) |
| Gasket (oil outlet) | 210243 (2455001, Non Metallic) |
| Manufacturer | Honeywell-Garrett |
04-08 HYUNDAI Matrix U1.5L 102HP 1.5L Euro3
05-09 HYUNDAI Getz CRTD U1.5L 109HP 1.5L Euro3
2005- KIA Cerato 1.6L CRDi Engine D4FB
2005- KIA Rio 1.5L CRDi Engine U1.5L Euro 3

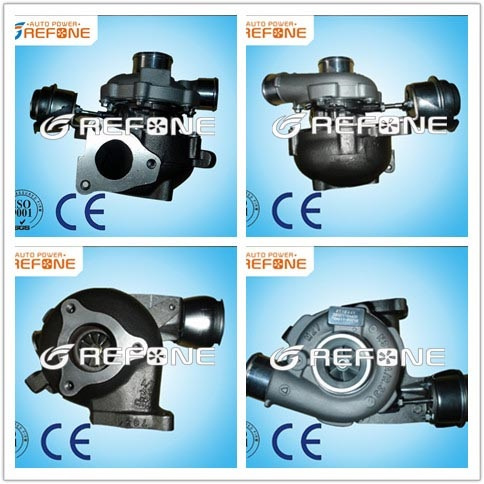

Product Pictures

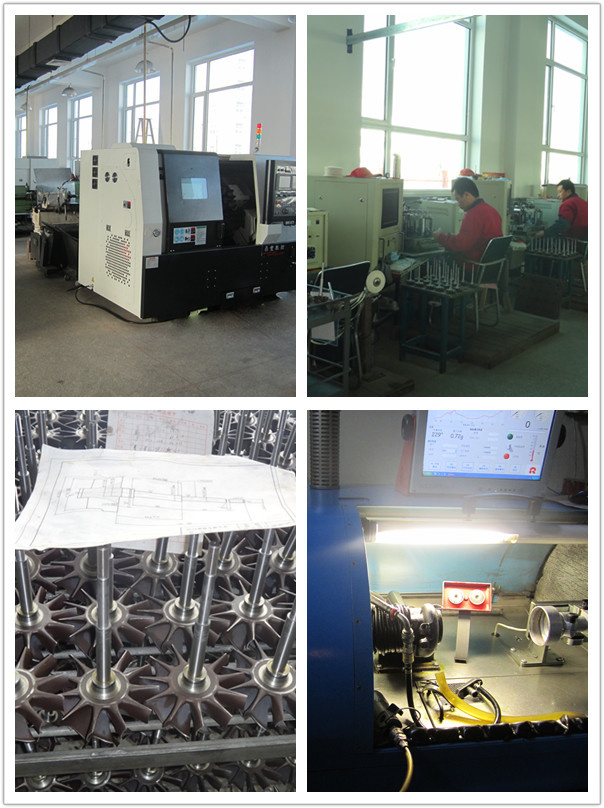

Factory Images
Our Service
1. 12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
Packing Images
Company Imformation
Refone Auto Power Co.,Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading.Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
We Also Provide
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
GT TA TB TO K03 K04 K14 K16 K24 K26 K27 K29 K31 K33 BV43 KP35 KP39
TDO TFO CT RHB RHC RHF RHG H1C H2C H1E WH1C WH1E H2D HX HY
HE HP 4LE 4LGZ S 3LM-319 J08C HT12 HT18 PC200 SJ KTR
Why Choose Us
1. 1 Year quality warranty.
2.High speed balancing tested.
3.Meeting customers' needs.
4.Convenient and effective after-sales service.
Contact Us Now:
Refone Auto Power Co., Ltd
Tina Meng
Tel: +86 551 65617152
Fax: +86 551 65613152
| Part Number | 740611-0001, 740611-5001S, 782403-0001, 782403-5001S |
| OE number | 282012A100, 28201-2A100, 28201A120, 28201-A120 |
| Description | Hyundai Matrix Getz KIA Cerato Rio |
| CHRA | |
| Turbo Model | GT1544V |
| Engine | Euro3 |
| Engine Manufacturer | Hyundai |
| Displacement | 1.5L, 1493/1500/1582 ccm, 4 Cylinders |
| KW | 65/75/81/85/102 HP |
| RPM Max | 4000 |
| Manufacturer | Honeywell-Garrett |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
