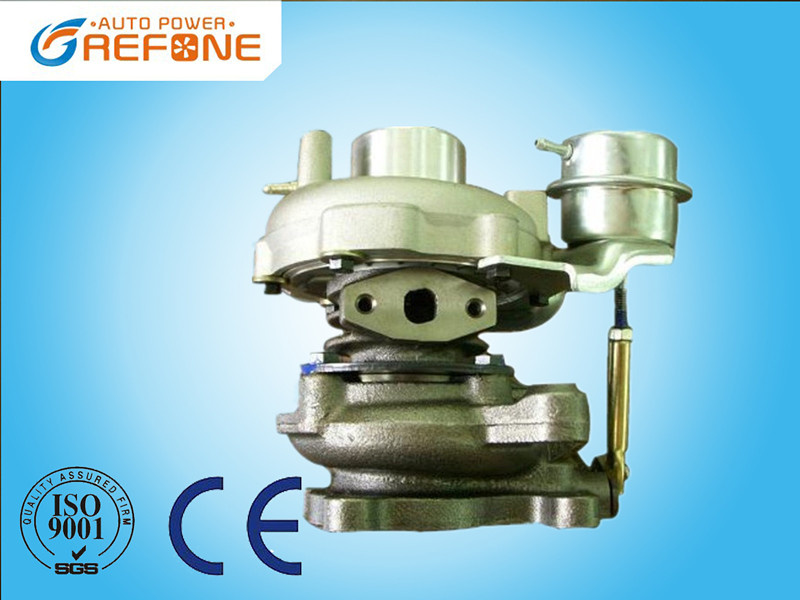

GT1544S 454083-0002 454083-0001 Turbocharger for Volkswagen, Ford
1.Product Description
| Part Number | 454083-5002S |
| Previous Version | 454083-0001, 454083-0002 |
| OE number | 95VW6K682AA, 1002829, 028145701Q |
| Year | 95-99 |
| Description | Volkswagen Golf, Passat Seat Toledo |
| CHRA | 433289-0050 |
| Turbo Model | GT1544S |
| Engine | TDI 90 |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm, 4 Cyl |
| KW | 90/110 |
| RPM Max | 4000/4400 |
| Fuel | Diesel |
| Angle α (compressor housing) | 273 |
| Angle β (turbine housing) | 190 |
| Bearing Housing | 433275-0002 (Oil Cooling Type) |
| Turbine Wheel | 433290-0042 |
| Comp. Wheel | 433287-0004 |
| Back plate | 700593-0001 |
| Heat Shield | 434302-0001 |
| Repair Kit | 732252-0001 |
| Turbine Housing | 435788-0016 |
| Compressor Cover | 435791-0056 |
| Turbine Housing AR | 0.35 |
| Actuator | 435176-0020 |
| Settings Waste gate (pressure) | 0.770-0.830 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 210292 |
| Gasket (turbine outlet) | 210296 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Honeywell-Garrett |
| Condition | Rebuilt |
3. Packing & Shipping
1)TNT,DHL,FEDEX,UPS,EMS
2)By sea ,by air
3)Take your requirements into consideration
4. Company Information
Refone is a professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends
5. Our Service
Δ Fast response and good service
Δ Sample order acceptable
Δ ODM&OEM service available
Δ 1year warranty
Δ All turbochargers and chras performance balanced.
6. Contact Person:
Ms Gina Mu
Tel:+86 551 65617152
Fax:+86 551 65613152
7.We Also Provide
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
1)GT TA TB TO
2)K03 K04 K14 K16 K24 K26 K27 K29 K31 K33
3)BV43 KP35 KP39
4)TDO TFO CT
5)RHB RHC RHF RHG
6)H1C H2C H1E H2D HX HY
7)WH1C WH1E
8)HE HP 4LE 4LGZ S 3LM-319 J08C
9)HT12 HT18 PC200 SJ KTR
8.Related Products:
Model | Part No. | OEM NO. | Application |
| GT1649V / GTB1649V | 757886-5003S, 757886-0003 | 2823127400, 28231-27400 | Hyundai Tucson 2.0 CRDi / Kia SPORTAGE CRDi Engine D4EA |
| GT1852V | 709835-5002S | 6110960399/6110960799 | Mercedes-PKW E-Klasse 220 CDI (W210) |
| GT1852V | 709836-0004 | A6110960899 | Mercedes Sprinter OM611 |
| GT1852V | 717625-5001S/1 | 86005024445061 | Opel Astra G 2.2 DTI |
| GT1852V | 7176265001S/1/2/5002S | 860055-24443096
860051-24445062 | Opel Signum 2.2 DTI |
| GT1852V | 718089-5008S/5/6/5007S | 8200267138/7701475282
8200447624/7711134877
8200447624A | Renault Avantime 2.2 dCi |
| GT1852V | 726698-0001/2/3/5003S
778794-0001
709836-0001/5004S | A6110960899
A6110961699
A6110961599 | Mercedes Sprinter I 211/311/411CDI OM611 109HP 00-06 |
| GT2052V | 7246390002/5002S/5006S 705954-0009/0015/0017 | 14411-2X900 14411-VC100 | Nissan Terrano II 3.0L Di 229 |
| GT2052V | 454135-0001/2//5006S/5009S/5010S | 059145701G/GZ/GV/C/CX/CV | Audi A4 2.5 TDI (B5) |
| GT2052V | 454205-0006 | 074145701DV248 | VW LT II 2.5TDI |
| GT2052V | 710415-0001/5003S | 11657781434/5 7781436
/7780199D | BMW 525 d (E39) |
| GT2052S | 452301-0001 | 2674A326/391 | Perkins 4000 - T4.40(0.0) |
| GT2052S | 703389-0001 | 28230-41450 | Hyundai Mighty Truck |
| GT22 | 709838-5004/5S/3/1 | A6120960399 | Mercedes Sprinter I 216/316/416CDI |
| GT2252 | 452187-0006 | 1441169T00 | BD-30Ti |
| GT2252V | 454192-0001 | 074145703E | V.W. T4 Transporter 2.5L |
| GT2556V | 454191-0001/0003/5012S/5015S | 11652248906/11652248907/11652247691 | BMW 530 d (E39) |
| GT2256V | 704361-0004/5/5006S | 11652249950/11652248834 | 330 d (E46) |
| GT2256V | 709838-0001/3/4/5005S | 05104006AAA6120960399 | BENZ,DODGESprinter |
| GT2256V | 710811-5002S | 55191597 | ALFA ROMEO |
| GT2256V | 751758-0001/5001S 707114-0001 | 5001855042/500379251 | Iveco Daily |
