GT1544s 454083-0001 1002829 garrett engine turbo for VW PASSAT Products DetailsPart Number: 454083-5002S
Previous Version: 454083-0001, 454083-0002
OE number: 95VW6K682AA, 1002829, 028145701Q
Year: 95-99
Description: Volkswagen Golf, Passat Seat Toledo
CHRA: 433289-0050
Turbo Model: GT1544S
Engine: TDI 90
Engine Manufacturer: VW
Displacement: 1.9L, 1896 ccm, 4 Cyl
KW: 90/110
RPM Max: 4000/4400
Fuel:Diesel
Angle α (compressor housing): 273
Angle β (turbine housing): 190
Bearing Housing: 433275-0002 (Oil Cooling Type) $79.68
Turbine Wheel: 433290-0042 $121.80
Comp. Wheel: 433287-0004 $55.20
Back plate: 700593-0001 $22.52
Heat Shield: 434302-0001 $11.52
Repair Kit: 732252-0001 $66.80
Turbine Housing: 435788-0016
Compressor Cover: 435791-0056
Turbine Housing AR: 0.35
Actuator: 435176-0020
Settings Waste gate (pressure): 0.770-0.830 bar
Settings Waste gate (lift shaft): 1.00 mm
Gasket (turbine inlet): 210292
Gasket (turbine outlet): 210296
ManufacturerHoneywell-Garrett
1995- Ford Galaxy with TDI 90 Engine
95-97 Seat Toledo TDI with TDI 90 Engine
1997- Seat Alhambra TDI with TDI 90 Engine
97-99 Seat Cordoba TDI with TDI 90 Engine
1997- Seat Ibiza TDI with TDI 90 Engine
95-97 Volkswagen Passat TDI with TDI 90 Engine
1995- Volkswagen Sharan TDI / Vento TDI with TDI 90 Engine
95-97 Volkswagen Golf TDI with TDI 90 Engine

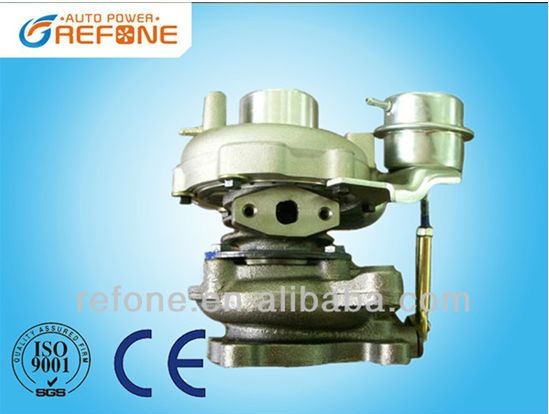

Product Pictures

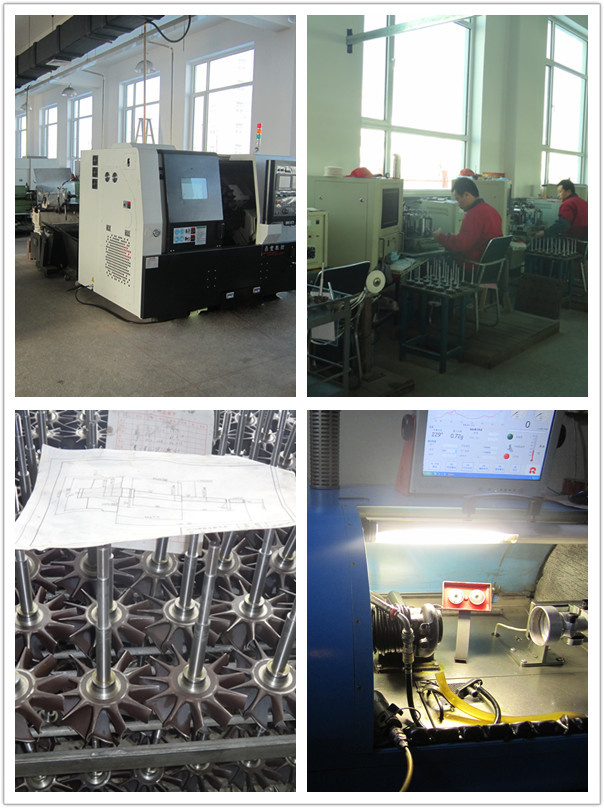

Factory Images
Our Service
1. 12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
Packing Images
Company Imformation
Refone Auto Power Co.,Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading.Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
We Also Provide
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
GT TA TB TO K03 K04 K14 K16 K24 K26 K27 K29 K31 K33 BV43 KP35 KP39
TDO TFO CT RHB RHC RHF RHG H1C H2C H1E WH1C WH1E H2D HX HY
HE HP 4LE 4LGZ S 3LM-319 J08C HT12 HT18 PC200 SJ KTR
Why Choose Us
1. 1 Year quality warranty.
2.High speed balancing tested.
3.Meeting customers' needs.
4.Convenient and effective after-sales service.
Contact Us Now:
Refone Auto Power Co., Ltd
Tina Meng
Tel: +86 551 65617152
Fax: +86 551 65613152
|
Part Number |
454083-5002S, 454083-0001, 454083-0002 |
|
OE number |
95VW6K682AA, 1002829, 028145701Q |
|
Description |
Volkswagen Golf, Passat Seat Toledo |
|
CHRA |
433289-0050 |
|
Turbo Model |
GT1544S |
|
Engine |
TDI 90 |
|
Engine Manufacturer |
VW |
|
Displacement |
1.9L, 1896 ccm, 4 Cyl |
|
KW |
90/110 |
|
RPM Max |
4000/4400 |
|
Manufacturer |
Honeywell-Garrett |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
