| Prod Model: |
GT1241Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
756068-5001s |
| Oe Number: |
036145701 |
| Chra: |
757864-0001 |
| Engine Model: |
Ea111 |
| Bearing Housing: |
757865-0001 |
| Turbine Wheel: |
703145-0002 |
| Comp. Wheel: |
708205-0002 |
| Turbine Housing: |
711404-0008 |
| Compressor Cover: |
756072-0001 |
| Actuator: |
712738-0002 |
| Body Material: |
Iron |
| Certification: |
ISO9001 |
| Type: |
Turbocharger |
Product Description

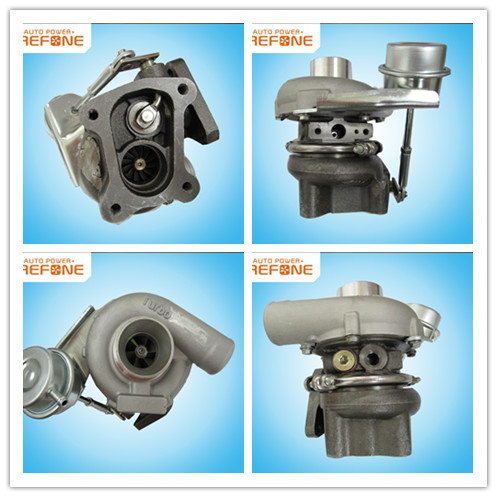

Gt1241z Turbocharger 756068-5001s 36145701 Turbo Charger 756068-0001 036145701 708001-0001 For VW Gas Diesel Parts With EA111 Engine
Product Description
Part Number | 756068-5001S |
| Previous Version | 708001-0001, 756068-0001, 708001-1, 756068-1 |
| OE Number | 036145701, 36145701 |
| Year | 2001- |
| Description | Volkswagen Parati, Golf |
| CHRA | 708247-0007 (757864-0001, 708247-0002) |
| Turbo Model | GT1241SZ, GT1241Z |
| Engine Model | EA111 |
|
|
| Displacement | 1.0L, 1000 ccm, 16V, 4 Cylinders |
| KW | 82/101/130 HP |
| RPM Max | 5500 |
| Fuel | Gas |
| Angle α (compressor housing) | 276 |
| Angle β (turbine housing) | 201 |
| Bearing Housing | 757865-0001 |
| Turbine Wheel | 703145-0002 |
| Comp. Wheel | 708205-0002 |
| Turbine Housing | 711404-0002/711404-0008 |
| Compressor Cover | 710395-0002/756072-0001 |
| Actuator | 712738-0002 |
| Settings Waste gate (pressure) | 0.455-0.515 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 210505 |
| Gasket (turbine outlet) | 210694 |
| Gasket (oil inlet and outlet) | 210382 |
Applications
2001- Volkswagen Golf, Parati with EA111 Engine
Compressor Cover: 756072-0001
| GT1549 | GARRET | 452194-0001 | 90490382 | SAAB | 9.5 | 3.0/V6 |
|
| GT1549O | GARRET | 702404-0002 | 8200069567 | RENAULT | Master | G9T 720 |
|
| GT1549P | GARRET | 707240-0001 | 9641192380 | CITROEN | Evasion 2 (Synergie 2) - 4 cyl. - 2.2L - DI D | DW 12TED4S |
|
| GT1549S | GARRET | 452213-0003 | 914F-6K682-AG | FORD | Transit 2.5, Turkey |
|
|
| GT1549S | GARRET | 454171-0004 | 9633647180 | CITROEN | Xantia - 4 cyl. | 1.9L |
|
| GT1549S | GARRET | 713667-0001/2 | 9637861280 | CITROEN | Evasion (Synergy) HDI | 2.0L |
|
| GT1549S | GARRET | 703245-0001/2 | 7700108052 | RENAULT | Laguna dCi,NISSAN Primastar | 1.9L |
|
| GT1549S | GARRET | 454164-0004 | 7700101141B | RENAULT | Espace | 2.2 L |
|
| GT1549S | GARRET | 452274-0004/5 | 144114U115 | NISSAN | Almera Tino | 2.2i Di |
|
| GT1549S | GARRET | 720244-0001 | 8200100284 | RENAULT | Master | G9T 722 |
|
| GT1549S | GARRET | 717345-0002 | 8200091350A | RENAULT | Laguna | 1.9L |
|
| GT1549S | GARRET | 454216-0003 | 24442214 | OPEL | Vectra/Astra | 20HC |
|
| GT1549S | GARRET | 751768-0004 | 7711134299 | Renault | Megane dCi (02-) 1.9L D | F9Q |
|
| GT1549V | GARRET | 700447-0003 | 2247297G | BMW | 320 D - 4 cyl. - 2.0L - DI D |
| TD025 | 49173-07508/2/3/4/5/6/7/07522/07516 | 0375N5 0375J0 0375Q5 0375Q4 0375K5 | Ford Fiesta 1.6TDCi/Citroen Berlingo 1.6 HDi |
| TD03 | 49135-06037 | 3CIQ6K682EB | Mitsubishi off-road vehicles---2.4L |
| TD04 | 49177-02500/01 | MD170563 | Mitsubishi 2.5LD |
| TD04-09B | 49177-07500 | 2820042851 | Hyundai Galloper TC 4D56T 1995 |
| TD0410T4 | 49177-01501 | MD168053 | L200,2.5LD 4D56 84-91 |
| TD04-10T | 49177-01502/4/5 | MD194842 | L200,4D56PB |
| TD04-10T-4 | 49177-01510 | MD106720/MR385833 | Pajero/Mitsubishi L300 2.5LD DE 4D56 |
| TD04-10T-4 | 49177-01511 | MD168054 | L300,2.5LD DE 4D56 84-91 |
| TD04-10T | 49177-01504/3/5 | MR355222/ME194843 | Pajero II 2.5TD 4D56T 1993 |
| TD04-10T | 49177-01515 | MR355220 | Delica/L300 4WD 2.5LD 4D56 DE EC |
| TD04-11G | 49177-07612 | 28200-42540/4A200 | HYUNDAI Gallopper 2.5L TDI, Mitsubishi L200/Pajero 2.5L |
| TD04H | 49189-01350/5 | 1275663 | Volvo T5-R N2923HT 2.3L 240hp |
| TD04HL-15T | 49189-01800 | 9172180 | SAAB |
| TD05H-16G | 49178-01470 |
| Lancer MitsubishiIII 4G63NDON 2.0L |
| TD05H-20G | 49178-01470 |
| 4G63 EV03 430HP |
| TF035 | 49135-02110 | MR212759 | Mitsubishi 4D56 |
| TF035 | 49135-03310 | MD202579 | Ford, Pajero Mighty Truck 4M40 |
| TF035HM | 49135-04121 | 28200-4A201 | Hyundai |
| TF035HL2-12GK | 49135-02652 | MR968080 | L200 2.5 TDI 2002 |
| TFO35HL6b-13TB/VG | 49135-05670/1 49135-05650/1 49135-05640/1 49135-05620/10 | 11654716166/11657795499 | BMWBMW 120 d (E87) |
