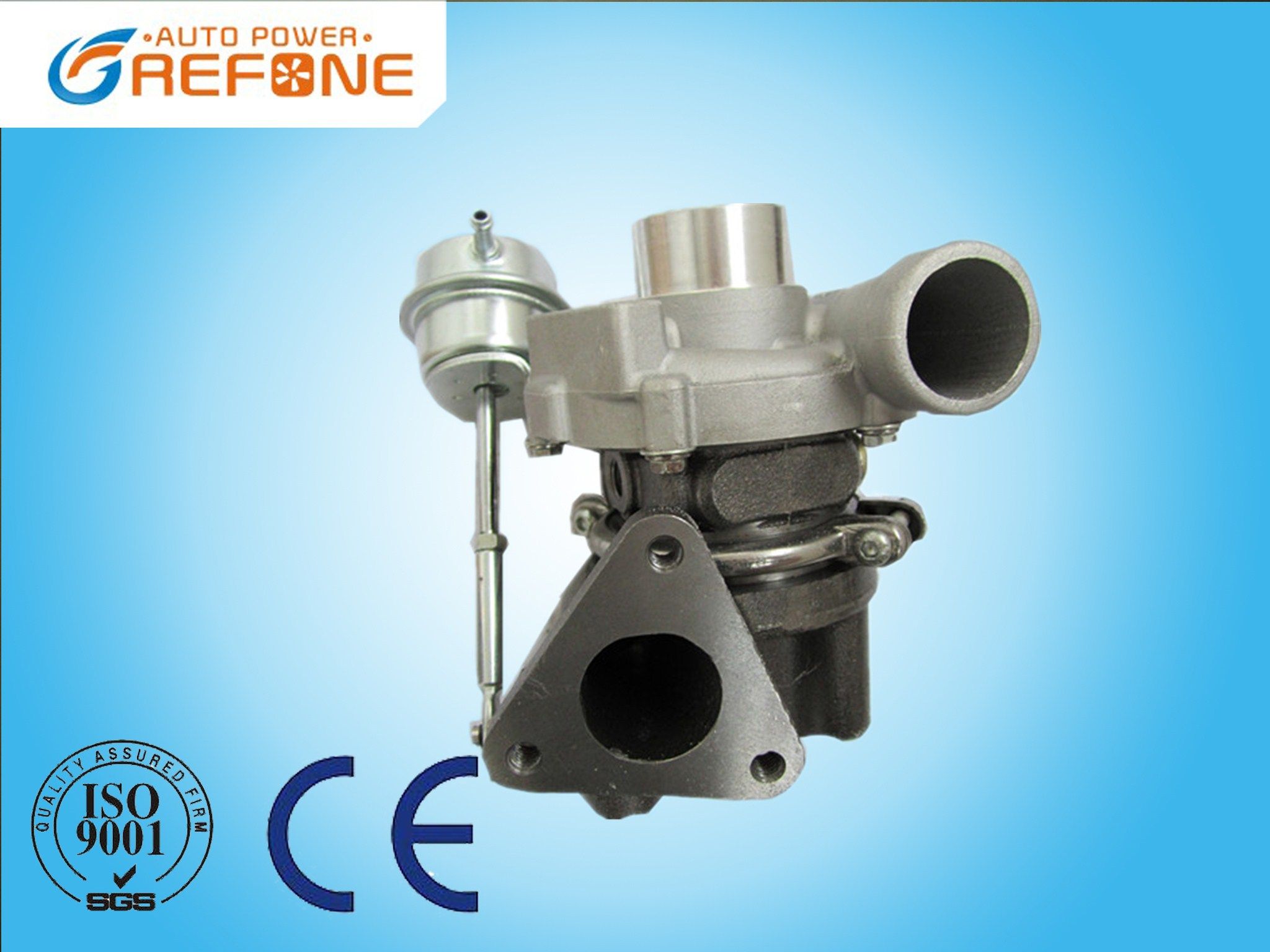

Volkswagen Parati, GOL GT1241Z 756068-0001 Turbo Garrett
Description:
Model: GT1241Z
P/N: 756068-0001
Application: Volkswagen Parati
2001- Volkswagen Golf, Parati with EA111 Engine
Our advantages:1. 1 Year Quality Warranty
2. Fast Delivery;
3. Europe Hot Selling;
4. Sample order is acceptable

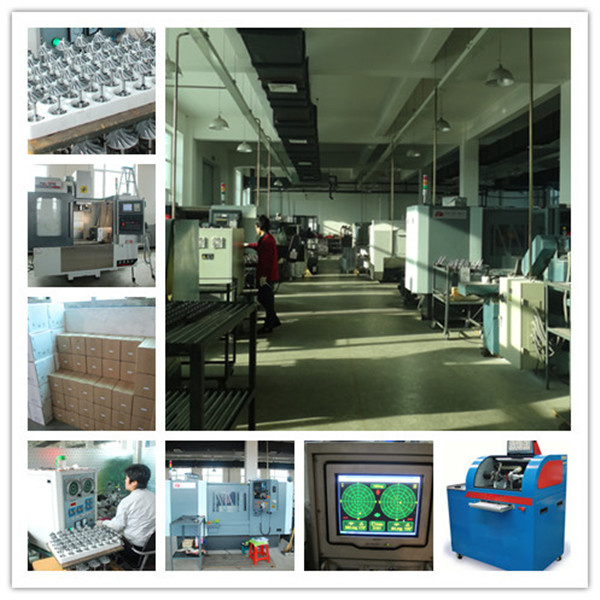

Workshop Images:

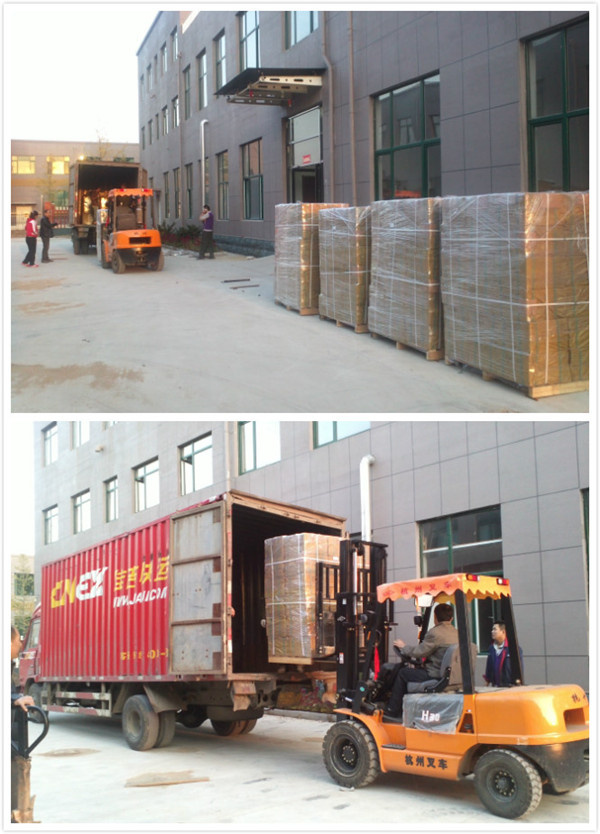

Package and Shipping:
Refone Introduction:
Refone is professionally engaged in researching and designing auto engine parts such as turbo charger ,turbo parts,kit turbocharger or other engine parts.
Our teams are excellent technical engineers .They work as designers, researchers, quality controllers and, production workers respectively.
We are looking forward to build long business with universal friends.
Contact: Ms Lillian Wang
| Part Number | 756068-5001S |
| Previous Version | 708001-0001, 756068-0001, 708001-1, 756068-1 |
| OE Number | 036145701, 36145701 |
| Year | 2001- |
| Description | Volkswagen Parati, GOL |
| CHRA | 708247-0007/757864-0001 |
| Turbo Model | GT1241Z |
| Engine Model | EA111 |
| Engine Manufacturer | VW |
| Displacement | 1.0L, 1000 ccm, 16V, 4 Cylinders |
| KW | 82/101/130 |
| RPM Max | 5500 |
| Fuel | Gasoline |
| Angle α (compressor housing) | 276 |
| Angle β (turbine housing) | 201 |
| Bearing Housing | 757865-0001 |
| Turbine Wheel | 703145-0002 |
| Comp. Wheel | 708205-0002 |
| Turbine Housing | 711404-0002/711404-0008 |
| Compressor Cover | 710395-0002/756072-0001 |
| Actuator | 712738-0002 |
| Settings Waste gate (pressure) | 0.455-0.515 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 210505 |
| Gasket (turbine outlet) | 210694 |
| Gasket (oil inlet and outlet) | 210382 |
| Manufacturer | Honeywell-Garrett |
Other Hot Selling Turbos:
| GT2056V | 751243-0002 | Nissan Navara 2.5 DI Engine QW25 (D40)
Nissan Pathfinder 2.5 DI Engine QW25 |
| GT2056 | 751592-5005S/708163-0001 | Iveco |
| GT2056V | 700935-5003S | 2001-2003 BMW X5 3.0 d (E53) Engine M57D E53 RH |
| GT2056V | 767720-5004S | 2007- Nissan Navara with YD25DDTi Engine |
| GT2056V | 769708-5004S | 06-08 Nissan Pathfinder 2.5L DI with YD25 Engine |
| GTA4294BNS | 714788-0001/700228-0001
702015-0001/702284-0001 | Detroit Diesel Truck with Series 60 Engine
DDC-MTU Industrial with Series 60 Engine |
| GTA2052V | 752610-5013S / 752610-0009 / 752610-0010 / | 2006- Land Rover Defender with Duratorq TDCi Euro-4 Ford Engine
2006- Ford Transit V348 TDCi with Duratorq TDCi Euro-4 Ford Engine
2006- Ford Transit RWD (Brazil) with Duratorq TDCi Euro-4 Ford Engine |
| GTA2056V | 767720-5004S / 767720-0001 / 767720-0002 / 767720-0004 / 767720-5002S | 2007- Nissan Navara with YD25DDTi Engine |
| GTB1549V | 761433-0003 | 2005- SsangYong Kyron M200XDi with D20DT Engine
2005- SsangYong Actyon A200XDi with D20DT Engine |
| GT2860R | 466541-0001 | Nissan Skyline GT-R With SR20DET Engine
Tuning Upgrade 200-330HP 1.6L-2.5L |
| GT2860RS | 739548-0001 | Suitable for 1.8L to 2.7L Engines
Upgrade for 471171-0003 / 466541-0001 |
| GT2860RS | 739548-0005 | Suitable for 1.8L to 2.7L Engines
Upgrade for 471171-0003, 466541-0001 |
| GT2860R | 707160-0005 | Suitable for 1.8 to 3.0L Engines
Upgrade for 702987-0007 that is used on the Nissan R34 GT-R |
| GT2871R | 743347-0002 | Suitable for 1.8L to 3.0L Engines
Upgrade for 739548-0001 |
| GT2871R | 771847-0001 | Suitable for 1.8L to 3.0L Engines
Upgrade for 466541-0001, 466541-0004, 739548-0001 |
| GT3076R | 714569 | Suitable for 1.6L to 3.6L Engines |
| GT3071R | 700382 | Suitable for 2.0L to 3.0L Engines |
| GT3582R | | |
| GT2256V | 707114-0001/751758-0001 | 2000 Iveco Commercial CAR VAN with 8140.43K.4000 Engine
2000 Iveco Commercial Daily 3.5 tonne with 8140.43K.4000 Engine
2000 Iveco Commercial Daily 6.5 tonne with 8140.43K.4000 Engine
2000 Iveco Commercial Daily C15 with 8140.43K.4000 Engine
2000 Renault Commercial Mascotte with 140.43K.4000 Engine |
| GT2256V | 715910-5002S | 03-07 Mercedes Benz E270 with OM612 Engine
1999-2002- Mercedes E-Class 270 CDI (W210) Engine OM612
2000-2005- Mercedes M-Class 270 CDI (W163) Engine OM612 |
| GT2256S | 711736-0001 | 2003- Perkins Off Highway Truck with T4.40 Engine |
| GT2256MS | 704136-5003S | 1999- Isuzu Truck NPR with 4HG1-T Euro-1 Engine |
| GT2256V | 712541-5005S | 2002- BMW Car with M57D Engine
2002- Land Rover Range Rover TD6 with M57D Engine |
| GT2256V | 710811-0002 | 2001-04 Alfa Romeo 156/166 JTD with M722.KT.24 Engine
2001-04 Fiat Marea with M722.KT.24 Engine
2001-04 Lancia Aurelia, Lybra with M722.KT.24 Engine |
| GT2256VK | 736088-0003, 736088-0001, 736088-0005, 736088-5005S | 2004- Mercedes Benz Commercial Vehicle with OM647 DE LA 27Engine |
| GT2256V | 709838-5005S / 709838-0001 / 709838-0003 / 709838-0004 / 709838-0005 | 2000-04 Mercedes Benz Commercial with OM612 D5S Engine
2000-06 Mercedes Sprinter I 216CDI, 316CDI, 416CDI, OM612 DE27
2000-06 Dodge Sprinter Engine OM612 DE27 LA, OM612 DE27 |
| GT2256V | 724652-0001 / 724652-5001S / 724652-0007 | 2002- Ford Ranger with Powerstroke 2.8 E2 - HT Engine |
| GT2256V | 704361-0004 704361-0005 704361-0006 704361-5006S | 1999-2003 BMW 330 d (E46) with M57 D30 6 Cyl Engine
1999-2003 BMW 330 xd (E46) with M57 D30 6 Cyl. Engine
1999-2003 BMW X5 3.0 d (E53) with M57 D30 E53 6 Cyl. Engine |
| GT1749S | 732340-0003 | 2003 Hyundai Truck Porter 1with D4BC Engine |
| GT1749S | 716938-0001 | 2002 Hyundai Commercial Starex (H1) with 4D56T |
| GT1749LS | 466501-0005 | 94-98 Hyundai H350 (D4AE) Truck, Mighty II with D4AE Engine |
| GT1749LS | 471037-0002 | 95-98 Hyundai Chrorus Bus, Mighty Truck Engine D4AE |
| GT1749V | 454161-0001 | 95-98 Seat Toldo TDI
1995 Volkswagen Vento TDI
1998 Volkswagen Golf TDI
1998 Volkswagen Passat TDI |
| GT1749V | 454231-0001 | Volkswagen PASSAT TDI Audi A4, A6 TDI Various |
| GT1749V | 713672-0002 | 00-06 Audi A3 TDI with PD UI Engine
00-06 Seat Leon TDI S with PD UI Engine
00-06 Volkswagen Golf TDI with PD UI Engine
1996-2003 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1997-2001 Audi A3 1.9 TDI (8L) Engine ALH, AHF
1999-2005 Seat Leon 1.9 TDI Engine ALH, AHF
1999-2003 Seat Toledo II 1.9 TDI Engine ALH
1999-2004 Seat Toledo II 1.9 TDI Engine AHF
1997-2007 Skoda Octavia I 1.9 TDI Engine ALH, AHF
1998-2004 Volkswagen Beetle 1.9 TDI Engine ALH, AHF, AJM, AUY
1998-2004 Volkswagen Bora 1.9 TDI Engine LH, AHF, AJM, AUY
1997-2003 Volkswagen Golf IV 1.9 TDI Engine ALH, AHF |
| GT1749V | 768331-5002S | 2000 Audi A4 TDI Car with PDUI Engine
2000 Volkswagen Golf TDI Car with PDUI Engine |
| GT1749V | 768329-5001S/454232-0001 | 2001- Audi A3, A3 TDI
2001- Skoda Octavia Combi & Sedan
2001- Volkswagen Golf - Golf TDI |
| GT1749V | 713673-0001/454232-0002 | 2000-06 Audi A3 TDI AUY/AJM PD UI Euro-4
2000-06 Ford Galaxy TDI BVK/AUY/AJM PD UI Euro-4 VW
2000-06 Volkswagen Golf IV TDI, Beetle TDI, Bora TDI AUY/AJM PD UI Euro-4
2000-06 Skoda Octavia PD UI Euro-4
2000-06 Seat Alhambra TDI BVK/AUY/AJM PD UI Euro-4
2000-06 Volkswagen Sharan TDI BVK/AUY/AJM PD UI Euro-4 |
| GT1749V | 701854-0002/3/4/5004S | 2000-04 Volkswagen Commercial Caddy/Combi Tdi with TDI 110 Engine
2000-04 Volkswagen Passat with TDI 110 Engine
2000-04 Audi A4/A6 with TDI 110 Engine
2000- Seat Leon TDi SE with TDI 110 Engine |
| GT1749V | 701855-5006S | 1999-03 Ford TDI Galaxy with PD UI - TDI 110 Engine
1999-03 Seat ALHAMBRA TDI with PD UI - TDI 110 Engine
1999-03 Volkswagen SHARAN TDI with PD UI - TDI 110 Engine |
| GT1749V | 701855-5005S/1/3/5 | 97-03 Ford Galaxy TDI with TDI 110 Engine AFN
96-03 Seat Alhambra TDI with TDI 110 Engine AFN
99-00 Volkswagen Sharan TDI with TDI 110 Engine AFN |
| GT1749V | 708366-0001/2/3/5 | 2000-06 Land Rover Freelander with M47D Engine |
| GT1749V | 708639-0002 | Volvo V40 S40 Renault LAGUNA II |
| GT1749V | 717478-0001/AR0133
750431-0009 | 02-08 BMW 320D, 120d, 520d with M47TU Engine |
| GT1749V | 717858-0001 | 00-08 Audi A4, A6 with AAVF, AWX, BLB, BPW Engine
00-08 Skoda Superb Tdi with AVF, AWX, BLB, BPW Engine
00-08 Volkswagen Passat TDI with AVF, AWX, BLB, BPW Engine |
| GT1749V | 720855-0001/716216-0001
712078-0001 | 2001- Audi A3 TDI with PD UI Engine
2001- Volkswagen Golf with PD UI Engine |
| GT1749V | 721021-0001 | Golf TDI |
| GT1749V | 721164-0013/801891-5001S | 01-05 Toyota Previa / Avenis / Estima Car with 1CD-FTV Engine
Toyota Hilux / AVENSIS- PICNIC with 1CD-FTV Engine |
| GT1749V | 721164-0014/801891-5002S | 01-05 Toyota Rav 4 with 1CD-FTV / 021Y Engine |
| GT1749V | 724930-0002 | Audi Touran Car
2003 Audi A3 TDI Car
03-06 Volkswagen Golf TDI Car |
| GT1749V | 729041-5009S | 2003-2004 Hyundai Santa Fe 2.0L CRDi Engine D4EA-V
2002-2008 Hyundai Trajet 2.0L CRDI Engine D4EA-V |
| GT1749V | 729325-5002S | 2004- Volkswagen Commercial T5 Bus with R5K Engine |
| GT1749V | 454158-0001 | 1997-98 Audi A4 / A6 TDI (B5) with AFN TDI 110 Engine
1997-98 Volkswagen Passat with AFN TDI 110 Engine |
| GT1749V | 756062-0001 | 03-08 Volkswagen Golf 2.0 TDI with R4 4Valve Euro 4 Engine
03-08 Mitsubishi Grandis/ Outlander with R4 4Valve Euro 4 Engine |
| GT1549S | 452202-0003 | 1997- Land Rover Freelander with TCIE Engine |
| GT1549S | 452213-0001 | Otosan Transit Van 2.5l |
| GT1549S | 454183-0002 | 1996-03 Ford Galaxy with TDI 110 Engine
1996-03 Seat Alhambra TDI with TDI 110 Engine
1996-03 Volkswagen Sharan TDI with TDI 110 Engine |
| GT1549S | 703245-0001/751768-0001/
717345-0002 | 2001- Renault Clio II 1.9 dTi Engine F9Q
2001- Renault Kangoo I 1.9 dCi Engine F9Q
2001- Renault Master II 1.9 dCi Engine F9Q
2000- Renault Megane I 1.9 dTi Engine F9Q
2001- Renault Trafic II 1.9 dCi Engine F9Q
2001-2004 Volvo- S40 I 1.9 D Engine F9Q
2001-2004 Volvo- V40 1.9 D Engine F9Q |
| GT1549S | 717348-0001/738123-0001 | Renault MEGANE dCi |
| GTB1549V | 761433-0003 | 2005- SsangYong Kyron M200XDi with D20DT Engine
2005- SsangYong Actyon A200XDi with D20DT Engine |
| GT1549V | 700447-0001 | 1998- BMW 318 D, 320 D, (E46) Engine M47D E46/E39
1998- BMW 520 D (E39) Engine M47D |
| GT1549 | 758123-2S/N | Renault with F9Q Engine |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
