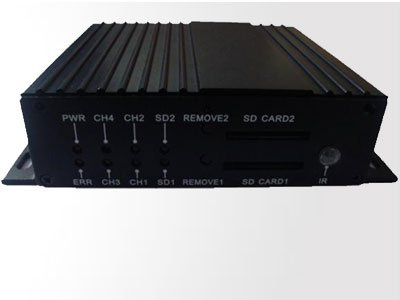

GPS/3G/WiFi Car DVR Mini DVR for Bus/Truck/Taxi
| Price: |
US $ 320-325/Piece |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
3G/GPS Car DVR for bus/truck/taxi
VC-MDR3004GD Series is a high level hard disk mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity hard disk storage, network streaming media, A/V noise reduction, wide range voltage design.
Key Features
H. 264 Video compression format; Support 1 to 4 channels video input.
Real time recording: 100f/s (PAL); 120f/s (NTSC).
Recording resolution: CIF/ 2CIF/ D1 optional, maximum support 2CH of D1 & 2CH
Of CIF.
Wireless transmission: GPRS, EDGE, CDMA, WiFi, 3G (EVDO) optional. Default
3G type.
Built-in GPS Module.
Support 1CH audio input/ output.
Backup: Support SD Card, 32GB. Video file format: ASF, for PC Viewing.
4CH alarm input/ 2CH alarm output.
RS232 interface for remote control; RJ45 port for LAN.
Support for power-down data protection: All data can be saved immediately in case Of power lost, and the recording files can be closed normally.
8-36V wide voltage supply design, applied to a variety of V ehicletypes;
Support DC: +8V ~ +36V power input, and 12V/1.5A power output;
Very good anti-vibration and anti-high temperature function for stable picture
Quality.
All materials and PCB production up to RoHS standard.
Compact and industrial design: Mini size
Dimensions: 112(W) x36(H) x138(D) mm
SW: 360g
NW: 550g.
|
Item |
Description |
|
Operation system |
Linux |
|
GUI |
Setup system parameters with remote controller |
|
Security management |
Support user password, supervisor password management; support encryption transmission |
|
Video |
Video input/output |
4-channel CVBS video input, 1-channel CVBS video output; 1.0Vp-p, 75Ω |
|
Dual stream |
Support |
|
OSD |
Time & date, vehicle ID, GPS etc |
|
Compression |
H. 264. Hisilicon high performance processor is applied. |
|
Preview function |
Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function |
|
Video frame rate |
PAL: 100 frame/sec, up to 25 frame/sec for single channel
NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
|
Video resolution |
CIF, HD1, D1 adaptive, support up to 2 channels D1 + 2 channels CIF |
|
Video quality |
Level 1 to 5 video quality adaptive, level 1 best, level 5 lowest |
|
Video Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional
HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional
D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional |
|
Audio |
Audio input/output |
4-channel input; 1-channel output |
|
Compression |
G. 726 |
|
Recording |
Storage media |
Support one 2.5 inch hard disk and one SD card with 32G maximum capacity |
|
File format/system |
ASF/ FAT32 |
|
Recording mode |
Startup recording by default, support timing, alarm & event trigger, manual recording |
|
Recording search |
Search recording video files by time, type, storage device, etc. |
|
Recording playback |
Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time |
|
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time |
|
Alarm |
Alarm input |
6-channel alarm input |
|
Alarm recording |
Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min |
|
Alarm output |
1-channel alarm output |
|
Storage space |
Support the setting of remain storage space alarm function |
|
Functional alarm |
Overspeed alarm, acceleration alarm, motion detection alarm |
|
Communication interface |
RS232, RJ45 10M/100M self-adaption Ethernet interface |
|
Wireless transmission (optional) |
Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module; |
|
GPS (optional) |
Support external GPS module |
|
Data remote transmission |
Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; |
|
PTZ control |
Support PTZ control function by local remote controller or client software; |
|
Parameter configuration |
Support parameter configuration |
|
G-sensor |
Built-in |
|
System upgrade |
SupportSDcard / Hard disk / Remote upgrade |
|
Power supply & consumption |
Power supply management |
ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown |
|
Input voltage |
DC: +8V ~ +36V |
|
Output voltage |
+12V@4*0.5A; [email protected] |
|
Power-off protection |
Patent UPS power-off protection technology, ensure the integrality of recording data when accidental power failure occurs |
|
Power consumption |
Less than 10W in normal working state; less than 0.5W in standby mode |
|
Working environment |
Temperature |
Normal: 0º C ~ +60º C
Hard disk pre-heating: -25º C~ +60º C |
|
Humidity |
10% to 95% |
|
Dimension |
160(W) x62(H) x200(D) mm. |
|
Weight |
Net weight: 2200g, gross weight: 3500g |
| Prod Model: |
VC-MDR3004GD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stofage: |
Hard Disk |
| Channel: |
4 Channel |
| Function Optional: |
3G, GPS, G-Sensor, Wi-Fi Modules Optional |
| Compression Format: |
H.264 |
| Interface: |
Airplug |
