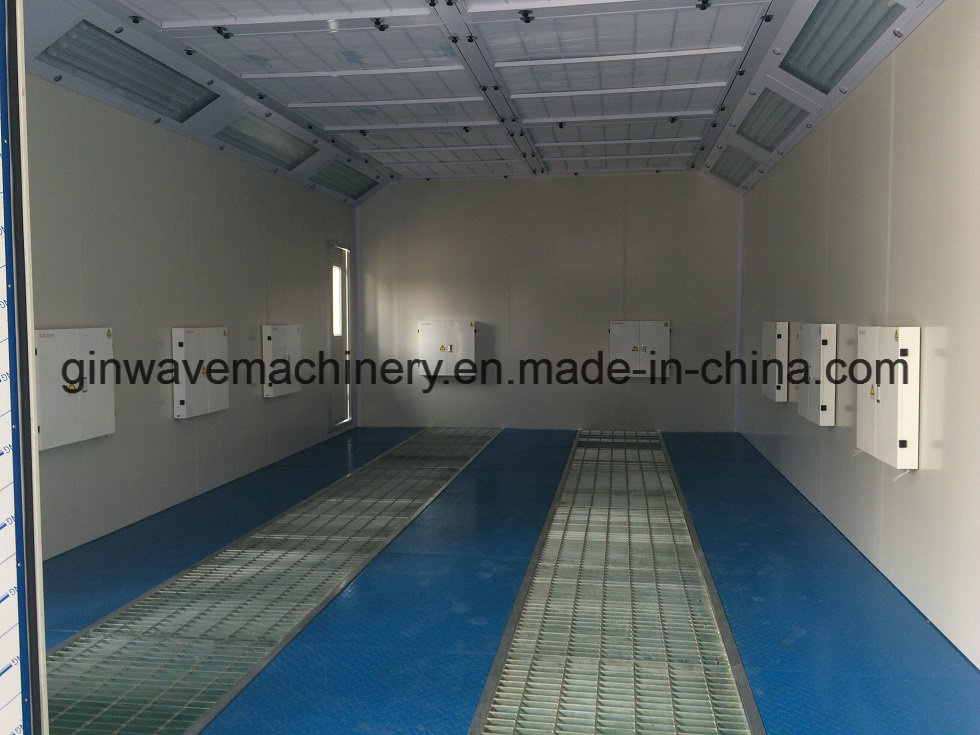

Good Quality Electric Water Borne Car Airbrush Spray Booth (CE Standard)
| Price: |
US $ 6600/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Outside Size(mm) | 7000x5350x3300 | Inside Size(mm) | 6900x3900x2650 | Front Door(mm) | 3000x2600(WxH) | Total Power | 31kw |
| Basement | δ=0.8mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.5mm; 3 rows of diamond plate, 2 rows of grilles, made by 30mmx4mm flat steel, then paint. δ=2.5mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful. |

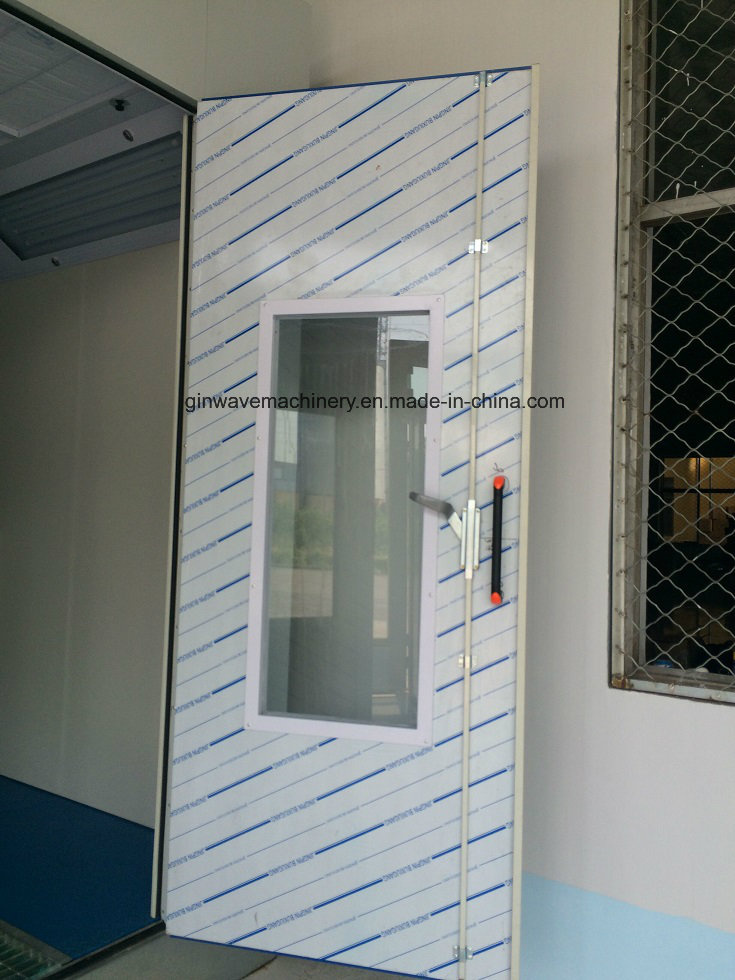

| Cabin System | 50mm EPS panel, double 0.326mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. |
| Ventilation System | 2 sets 3kw YDW4.5L centrifugal fans for supplying, air capacity is 22000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with reinforcing ribs. |

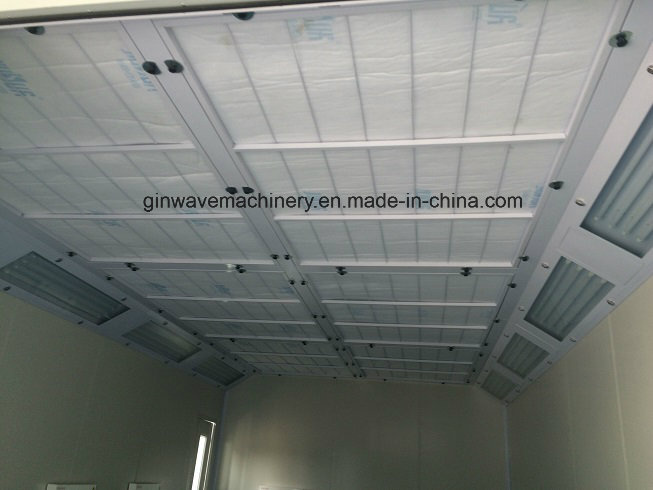

| Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. |
| Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. |
| Heating System | 3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw. |
| Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist. |
| Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. |
| Optional | Wall Panel | 50mm rock wool panel, with double steel 0.376/0.426mm steel, density is >=100kgs |
| | Side Lights | 20pcsx30w in vertically embedded into the wall. The light box is with powder coating. |
| | Environmental Cabin | 1x4kw centrifugal fan with floor filter and active carbon filter. in Draw-out type plate structure |
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
| Prod Model: |
JW-600A |
| Inside Dimension: |
6900X3900X2700mm |
| Outside Dimension: |
7000X5350X3400mm |
| Main Door: |
3-Folds: 3000X2600mm (Wxh) |
| Emergency Door: |
750X1800mm, Wxh |
| Wall Panel: |
50mm EPS with Double Sides 0.5mm Color Steel |
| Basement: |
300mm High, 3 Rows Diamond Plate 2 Rows Grids |
| Lighting System: |
Famous Brand LED Lights |
| Intake Fan: |
2 Sets 3kw Centrifugal Fan |
| Heating System: |
Diesel, Gas, Electricity |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Electric |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
