| Prod Model: |
MHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SS304, SS316 |
| Application: |
as Catalyst Used in Automobile/Motorcycle |
| Cell: |
100-600cpsi |
| Thickness(mm): |
0.04-0.1 |
| Width(mm): |
10-250 |
| Max Working Temperature: |
1100°c |
| Max Service Temperature: |
1250°c |
| Body Material: |
Steel |
| Discharge Standard: |
Euro V |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
Product Description

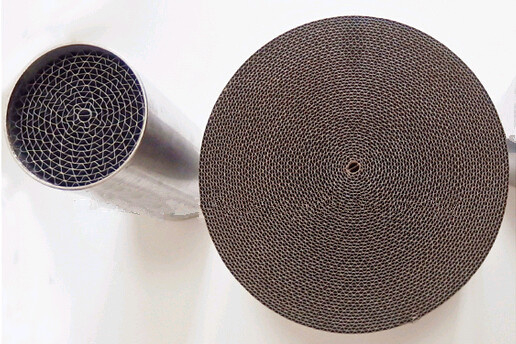

Metallic Honeycomb Substrate Description:
Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. High strength complex substrate plus big surface area and active element of noble metal could lower down pollutant value of motorcycle exhaust efficiently, such as CO, HC, NOX etc...And such kind of catalyst is of excellent catalytic activity and durability that could reach Euro emission standard 3, meet requirement and have approval of EPA and E-MARK.
Advantages:*Catalyst type: Complex catalyst of noble metal (PT, Pd, Rh) plus rare earth complex catalyst.
*Catalytic substrate: Metal substrate and honeycomb ceramic substrate.
*Fantastic coating fastness and stably and long-term catalyst ability.
*Advanced technic of substrates making and canning, ensuring depandable resistance heat shocks and stability of equipment.
*Various kinds of specifications and types, customized products as per clients specific requirement and technology data.
Remark: We can produce Metallic Substrate coated with noble metals of PT, Pd and
Rh and without precious metals as well.
We mainly produce auto catalyst used for vehicles, motorcycles, ATV, universal engine, garden machinery and agricultural cultivating machinery according to its features:
*Low light-off temperature
*Long-term durability performance
*Key material imported from Japan and Germany
*contain noble metal: PT/ Pd/ Rh
*Meet the Standards Euro II ~ Euro V emission standard, EPA, CARB approved
| Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
| Rotundity | Ø 30x22 | Ø 28X20 | 100/200/300/400 |
| Rotundity | Ø 35x20 | Ø 33X20 | 100/200/300/400 |
| Rotundity | Ø 35x30 | Ø 33x30 | 100/200/300/400 |
| Rotundity | Ø 35x40 | Ø 33x40 | 100/200/300/400 |
| Rotundity | Ø 35x50 | Ø 33x50 | 100/200/300/400 |
| Rotundity | Ø 35x60 | Ø 33x60 | 100/200/300/400 |
| Rotundity | Ø35 x 70/100/130 | Ø33 x 60/90/120 | 100/200/300/400 |
| Rotundity | Ø42 x 70/100/130 | Ø40 x 60/90/120 | 100/200/300/400 |
| Rotundity | Ø45 x 70/100/130 | Ø43 x 60/90/120 | 100/200/300/400 |
| Rotundity | Ø63.5 x 85/100/130 | Ø60.5 x 74.5/90/120 | 200/300/400 |
| Rotundity | Ø73 x 70/100/130 L | Ø70 x 60/90/120 | 200/300/400 |
| Rotundity | Ø93 x 70/100/130 | Ø90 x 60/90/120 | 200/300/400 |
| Rotundity | Ø100.3 x 100/130 | Ø98.3 x 90/120 | 600 |
| Rotundity | Ø144 x 150/152.4 | Ø142 x 140/142.4 | 200/300/400 |
| Rotundity | Ø190 x 200 | Ø188 x 190 | 200/300/400 |
| Rotundity | Ø420 x 100/130 | Ø416 x 90/120 | 300/400 |
| Race track | 123x63x85 | 120x60x75 | 200/300 |
| Race track | 123x63x100 | 120x60x90 | 200/300 |
| Race track | 78.5x52x104 | 76.5x50x90 | 200/300 |
