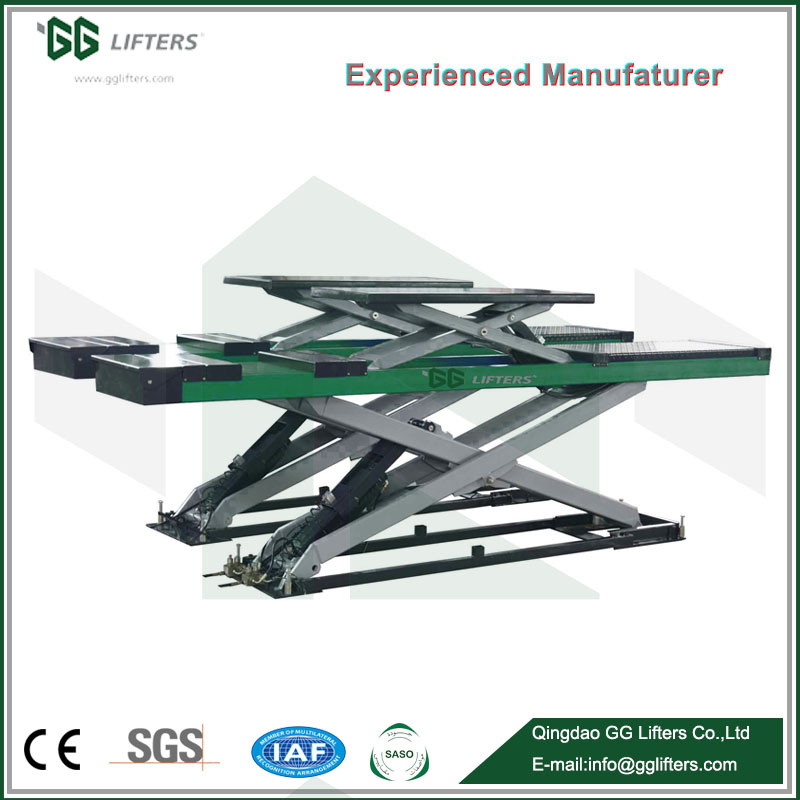

Gg Brand Ce 3.2 Tons Hydraulic Double-Level Platform Scissor Car Auto Lift

Name: Gg Brand Ce 3.2 Tons Hydraulic Double-Level Platform Scissor Car Auto Lift
Brand: ibuyautoparts.com
SKU: 729204092
Availability: InStock
Rating: 4.4 (114 reviews)

Price:	US $ 3000-4000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS32/1750/A
Type:	Double Cylinder Hydraulic Lift
Certification:	CCC
Design:	Scissor
Lifting Capacity:	3.2t
Driving Type:	Hydraulic + Rolling Jacks
Shearing Lift Type:	Double-Level (Small Scissor +Big Scissor)
Brand:	Gg Brand

Product Description

Features:

1. Two types: over ground and underground.
2. Design to have either(2 ea) rolling jacks in the middle or integrated (2ea) lifting trolley on both sides for wheel alignment function.
3. Dual cylinders with synchronous hydraulic circuit to ensure the equality of the height of both platforms with max 3mm to tolerance.
4. Automatic lock while pneumatic unlock.

Parameters:

Model NO.	LS32/1750/A
Lifting Capacity	3200kgs
Max Lifting Height:	1750mm
SAFETY LOCK	Electric unlock
Outline dimension	Long5525mm x wide2155 mm
Min Height	290mm
DOCUMENTS	INSTALLATION MANUAL BOOK, USER BOOK, TROUBLE SHOOTING SHEET
TEST BEFORE SHIPPMENT, AND SHOW THE VIDEO TO CUSTOMER WITH SHIPPING LIST
Warranty:	2 years for electric parts, 5years for steel frame structure
Rise/Drop Time:	60s/55s
Power Supply/Motor Capacity	220v/380v/2.2kw OR according to customer requestDrawing:

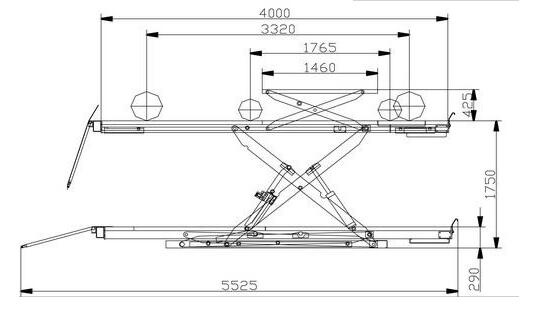

Drawing:

Product Show:

Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.

Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
