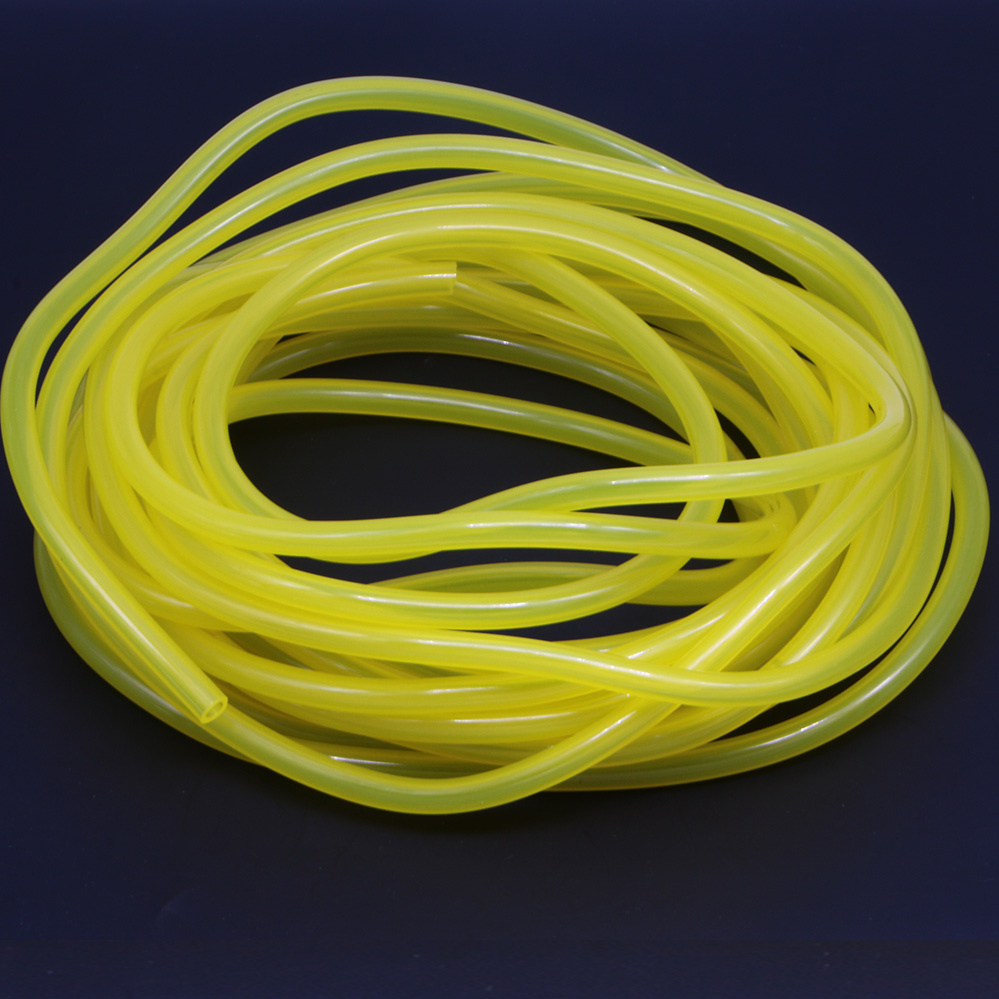

Gasoline Garden Machinery 3/8" X 1/2" PVC Fuel Lines

Tygon F-4040-A PVC Fuel And Lubricant Tubing, Yellow

Characteristic:
1.    Suitable for ethanol & gasoline (US E10)
2.    Highly flexible, easy to install
3.    Specifically designed for lubricants and fuel
4.    Resistant to UV and Ozone
5.    Resistant to harden and swell

Hose Hazard Warnings & Use Instructions
1. All the hose made by ATC is for special uses, you the original equipment manufacturer and/or re-seller and/or user must provide the detail of requirement to EASTAR's sales representative.
2. AF4040A Fuel Hose are made of "thermoplastic Material", and as such, the performance is an affected by temperature and pressure. The user must conduct tests to determine suitability for use in the user's process or application.
3. To avoid catastrophic disconnecting during use, always use retaining clamps or adhesives when affixing tubing to fittings and /or connectors.


Applications:

Plastic Fuel Tank, Carburetor, Brush Cutter, Chain Saw ,Hedge Trimmer ,Blower, Pole Chain Saw, lawn Mower, Duster, Power Sprayer, Lubricant Line, Motorcycle, Generator ,Coolant transfer line , Other equipment based on Small off-road Engine(SORE)

Property	Test Method	Value
Specific Gravity	TS-G01	1.25
Hardness(shoreA)	D2240	60
Ultimate Elongation,%	D412	350
Tensile Strenth(PSI)	D412	1790
Water Absorption	D570	0.48
Tensile Set %	D412	55
Max Working Temp(ºC)	TS-T01	75
Brittleness By impact Temp(ºC)	TS-B01	-35



Properties**	EASTAR ATC PVC Fuel & Lubricant Tubing	Tygon F-4040-A Fuel Tubing
Hardness, Shore A	62	62
Specific Gravity	1.23	1.23
Tensile Strength	1,920	1,920
Elongation at Break, %	420	420
Maximum Operating Temp, F	165	165
Brittleness Temperature, F	-35	-35
