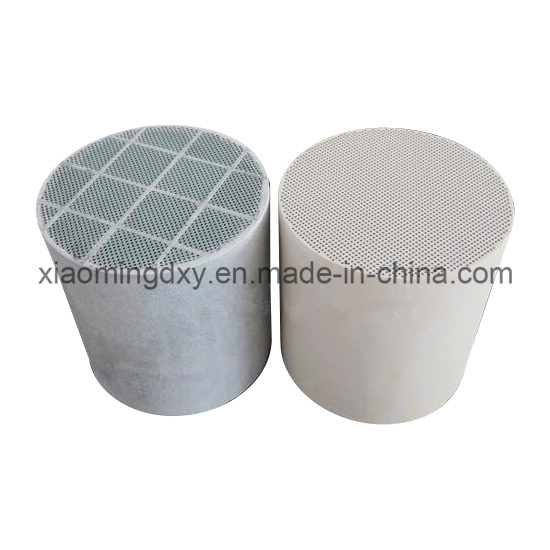

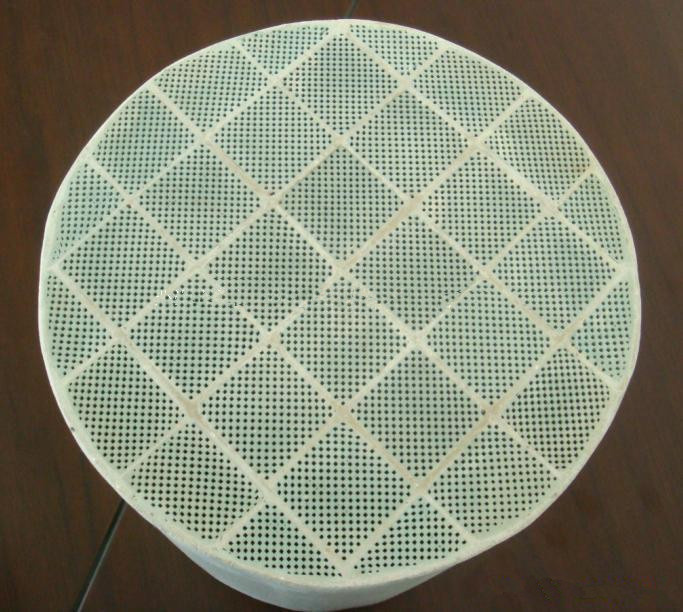

Diesel particulate filter
A diesel particulate filter (or DPF) is a device designed to remove diesel particulate matter or soot from the exhaust gas of a diesel engine. Wall-flow diesel particulate filters usually remove 85% or more of the soot, and under certain conditions can attain soot removal efficiencies of close to 100%. Some filters are single-use, intended for disposal and replacement once full of accumulated ash. Others are designed to burn off the accumulated particulate either passively through the use of a catalyst or by active means such as a fuel burner which heats the filter to soot combustion temperatures; Engine programming to run when the filter is full in a manner that elevates exhaust temperature or produces high amounts of NOx to oxidize the accumulated ash, or through other methods. This is known as "filter regeneration". Cleaning is also required as part of periodic maintenance, and it must be done carefully to avoid damaging the filter. Failure of fuel injectors or turbochargers resulting in contamination of the filter with raw diesel or engine oil can also necessitate cleaning. The regeneration process occurs at road speeds higher than can generally be attained on city streets; Vehicles driven exclusively at low speeds in urban traffic can require periodic trips at higher speeds to clean out the DPF. If the driver ignores the warning light and waits too long to operate the vehicle above 40 miles per hour (64 km/h), the DPF may not regenerate properly, and continued operation past that point may spoil the DPF completely so it must be replaced.
Specifications
*Top advanced manufacturer
*Be experienced in vehicle exhaust catalyst
*Fast delivery and strong production capacity
| NO. | Item | Our products |
| 1 | Filter material | Cordierite |
| 2 | Operating temperature limit (0C) | 1000 |
| 3 | Dimension (mm) | Ø 150x150, Ø 286x305, etc |
| 4 | Cell pitch (mm) | 100 cpsi |
| 5 | Cell wall thickness (mm) | 0.45-0.52 |
| 6 | Cell size (mm) | 2.02-2.09 |
| 7 | Mean pore size (um) | 8-13 |
| 8 | Porosity (gas pocket rate) % | 50-55 |
| 9 | Coefficient of thermal expansion | 1.6x10-6 |
| 10 | Softening temperature (0C) | 1360 |
| 11 | Compressive Strength (Mpa) | Lengthwise direction | 10 |
| Lateral direction | 2 |
| 12 | Water absorption rate: | 35% |
| NO. | Item | Our products |
| 1 | Filter material | Cordierite |
| 2 | Operating temperature limit (0C) | 1000 |
| 3 | Dimension (mm) | 143.8x152.4 etc |
| 4 | Cell pitch (mm) | 200 cpsi |
| 5 | Cell wall thickness (mm) | 0.32-0.35 |
| 6 | Cell size (mm) | 1.45-1.48 |
| 7 | Mean pore size (um) | 8-13 |
| 8 | Porosity (gas pocket rate) % | 50-55 |
| 9 | Coefficient of thermal expansion | 1.5x10-6 |
| 10 | Softening temperature (0C) | 1360 |
| 11 | Compressive Strength (Mpa) | Lengthwise direction | >10.0 |
| Lateral direction | >2.0 |
| 12 | Water absorption rate: | 38% |
| Size(Diameter × length) | Cell density | Shape |
| mm | Inches |
| Φ 118.4 × 101.6 | Dia.4.66 × 4 | 100/200CPSI | Rotundity |
| Φ 118.4 × 152.4 | Dia.4.66 × 6 | 100/200CPSI | Rotundity |
| Φ 127 × 152.4 | Dia.5 × 6 | 100/200CPSI | Rotundity |
| Φ 144 × 101.6 | Dia.5.66 × 4 | 100/200CPSI | Rotundity |
| Φ 144 × 150 | Dia.5.66 × 5.9 | 100/200CPSI | Rotundity |
| Φ 144 × 152.4 | Dia.5.66 × 6 | 100/200CPSI | Rotundity |
| Φ 144 × 254 | Dia.5.66 × 10 | 100/200CPSI | Rotundity |
| Φ 150 × 150 | Dia.5.9 × 5.9 | 100/200CPSI | Rotundity |
| Φ 190 × 200 | Dia.7.48 × 7.87 | 100/200CPSI | Rotundity |
| Φ 190 × 203 | Dia.7.48 × 8 | 100/200CPSI | Rotundity |
| Φ 228 × 305 | Dia.8.97 × 12 | 100/200CPSI | Rotundity |
| Φ 240 × 100 | Dia.9.45 × 3.94 | 100/200CPSI | Rotundity |
| Φ 240 × 240 | Dia.9.45 × 9.45 | 100/200CPSI | Rotundity |
| Φ 240 × 305 | Dia.9.45 × 12 | 100/200CPSI | Rotundity |
| Φ 260 × 305 | Dia.10.23 × 12 | 100/200CPSI | Rotundity |
| Φ 267 × 305 | Dia.10.50 × 12 | 100/200CPSI | Rotundity |
| Φ 286 × 267 | Dia.11.26 × 10.50 | 100/200CPSI | Rotundity |
| Φ 286 × 305 | Dia.11.26 × 12 | 100/200CPSI | Rotundity |
| Φ 286 × 355 | Dia.11.26 × 13.97 | 100/200CPSI | Rotundity |
| Φ 286 × 381 | Dia.11.26 × 15 | 100/200CPSI | Rotundity |
| 203.3 × 97 × 152.4 | 8 × 3.82 × 6 | 100 CPSI | Race track |
| 203.3 × 97 × 254 | 8 × 3.82 × 10 | 100 CPSI | Race track |
| 188 × 103 × 145 | 7.4 × 4.05 × 5.7 | 100 CPSI | Race track |
| 191 × 95 × 152.4 | 7.52 × 3.74 × 6 | 100 CPSI | Race track |
| 374 × 270 × 317 | 14.72 × 10.62 × 12.48 | 100 CPSI | Assemble track |
