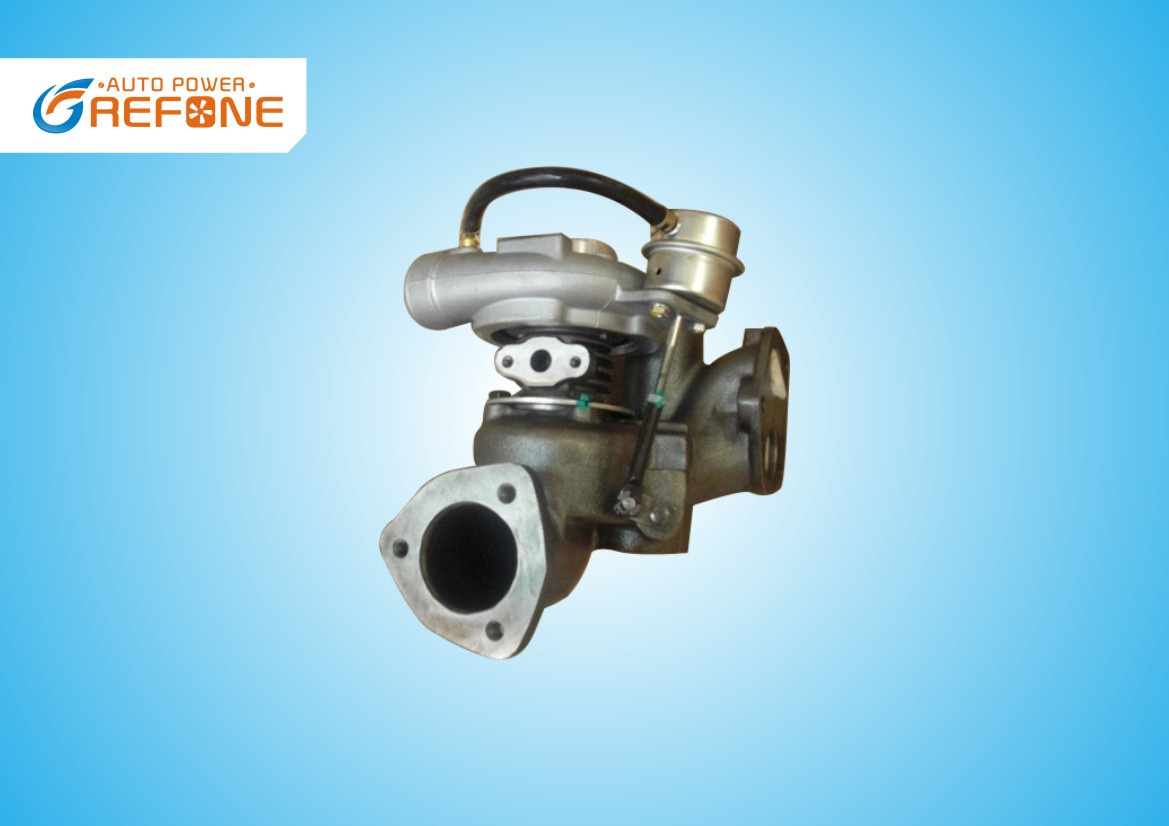

Garrett T250-04 452055-5004s Err4893 Err4802 Turbocharger for Land Rover

Δ Turbo specs

Part Number	452055-5004S
Previous Version	452055-0004
OE number	ERR4893, ERR4802
Year	1999
Description	Land Rover Discovery
CHRA	443854-0110
Turbo Model	T250-04
Engine	GEMINI III
Displacement	2.5L, 4 Cyl,
Fuel	Diesel
Angle α (compressor housing)	75
Angle β (turbine housing)	280
Bearing Housing	435350-0006
Turbine Wheel	435243-0001
Comp. Wheel	446335-0009
Back plate	430735-0001
Heat shield Number	445118-0001
Repair Kit	709143-0001
Turbine Housing	434045-0004
Compressor Cover	409589-0456
Turbine Housing AR	0.47
Actuator	432340-0045
Settings Waste gate (pressure)	1.241 - 1.309 bar
Settings Waste gate (lift shaft)	0.38 mm
Gasket exhaust manifold	210328
Gasket (turbine outlet)	210260
Gasket (turbine outlet)	413709-0001
Gasket actuator EGR	210334




Δ Applications

1999- Land Rover Discovery, Defender



Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support



Δ More Land Rover turbo models

Model	Part number	OE number	Application
T250-04	452055-0004	ERR4893  ERR4802	Landrover discovery
GT2052V	752610-0032	6C1Q6K682EN 6C1Q6K682FA 6C1Q6K682EF 6C1Q6K682EJ 6C1Q6K682EH	Landrover defender
GT1749V	708366-5005S	00017781450B	Landrover Freeland
GT2256V	712541-5005S	LR006110 PMF000060 PMF000050	Landrover Range Rover
GT2052S	452239-0006	LR017316 LR006595 PMF50040 PMF100460 PMF100410	Landrover defender /discovery
GT1549S	452202-5004S	PMF100490 PMF180490	Land-Rover Freelander I 2.0 Di
