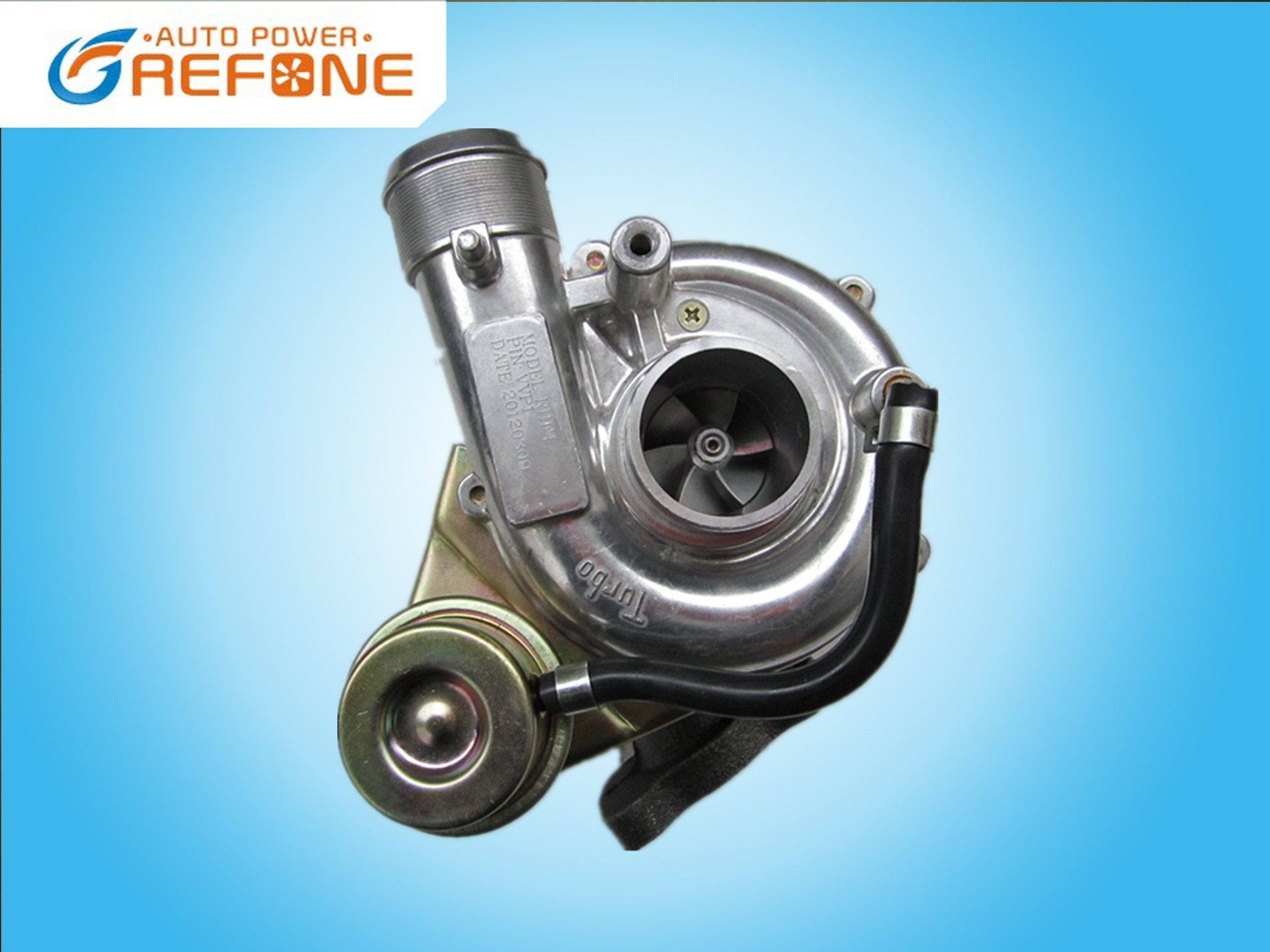

Garrett GT1546S 706977-5001S 0375C8 electric turbo Part For Citroen/PeugeotProducts DetailsPart Number: 706977-5001S
Previous Version: 706977-0001, 706977-0003
OE number: 0375C8. 0375E3, 0375E1, 0375E0, 0375H7, 9645247280
Year: 99-01
Description: Citroen, Peugeot
CHRA: 433289-0124
Turbo Model: GT1546S
Engine: DV10TD2S, DW10TD / RHY
Engine Manufacturer: PSA
Displacement: 2.0L, 2000 ccm
KW:66/90
Fuel: Diesel
Angle α (compressor housing): 68
Angle β (turbine housing): 155
Bearing Housing: 435793-0002
Turbine Wheel: 707669-0006
Comp. Wheel: 436624-0002
Back plate: 436399-0002
Heat shield Number: 434302-0001
Repair Kit: 732252-0001
Turbine Housing: 435788-0063
Compressor Cover: 435791-0090
ActuatorL: 433452-0037
Turbine Housing A/R: 0.35
Settings Wastegate (pressure): 1.050-1.120/1.240-1.290 bar
Settings Wastegate (lift rod): 1.00--3.00 mm
Gasket (turbine inlet): 210371
Gasket (turbine outlet): 210372
Gasket (oil outlet): 210243
ManufacturerHoneywell-Garrett
Applications:1999- Citroen Berlingo 2.0 HDI Engine DW10TD
1999- Citroen C 5 I 2.0 HDI Engine DW10TD
1999- Citroen Picasso 2.0 HDI Engine: DW 10ATD 2S
1999-2001 Citroen Xantia 2.0 HDi Engine DW10TD
1999- Citroen Xsara 2.0 HDI Engine DW10TD
1999- Peugeot 206 2.0 HDi Engine DW10TD / RHY
1999- Peugeot 307 2.0 HDi Engine DW10TD / RHY
1999- Peugeot 406 2.0 HDI Engine DW10TD / RHY
1999- Peugeot Partner 2.0 HDi Engine DW10TD
Product Pictures

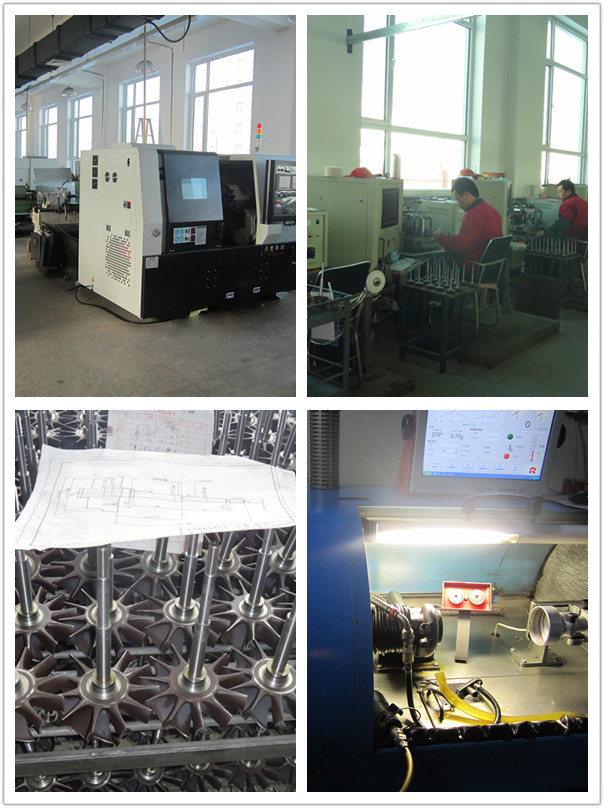

Factory Images
Our Service
1. 12 monthes Quality Warranty.
2. Sample Order is Acceptable.
3. After sale Service: Take photos Send for testing Send new turbo to customer.
4. Design new types according to customer's requirements.
5. Welcome to contact us! We will feedback within 24 hours!
Packing Images
Company Imformation
Refone Auto Power Co.,Ltd is a group company which engaged in turbocharger and turbo parts manufacturing and trading.Refone Auto Power Co., Ltd. is a specialized company engaged in manufacturing turbocharger & turbo, replacement & performance parts for turbo, and engine parts for automobile & engineering machine since 2003. Our products have been exported to America, Latin America, Japan, Europe, Australia and Southeast Asia. Welcome to our website and enjoy your stay. Any customers' specifications and OEM orders are welcome. If you can't find what you're looking for, please give us a call or an email. Our experienced and professional staff will help to meet all your requirements thoroughly. All inquiries will be highly appreciated and you will get replies within 24 hours.
We Also Provide
Garrett/ KKK/ Holset/ IHI/ Toyota/ Mitsubishi/ Schwitzer/ Hitachi/ JAC
GT TA TB TO K03 K04 K14 K16 K24 K26 K27 K29 K31 K33 BV43 KP35 KP39
TDO TFO CT RHB RHC RHF RHG H1C H2C H1E WH1C WH1E H2D HX HY
HE HP 4LE 4LGZ S 3LM-319 J08C HT12 HT18 PC200 SJ KTR
Why Choose Us
1. 1 Year quality warranty.
2.High speed balancing tested.
3.Meeting customers' needs.
4.Convenient and effective after-sales service.
Contact Us Now:
Refone Auto Power Co., Ltd
Tina Meng
Tel: +86 551 65617152
Fax: +86 551 65613152
Part Number | 706977-0001, 706977-0003,706977-5001S |
OE number | 0375C8. 0375E3, 0375E1, 0375E0, 0375H7, 9645247280 |
Description | Citroen, Peugeot |
CHRA | 433289-0124 |
Turbo Model | GT1546S |
Engine | DV10TD2S, DW10TD / RHY |
Engine Manufacturer | PSA |
Displacement | 2.0L, 2000 ccm |
KW | 65/75/81/85/102 HP |
RPM Max | 4000 |
Manufacturer | Honeywell-Garrett |
