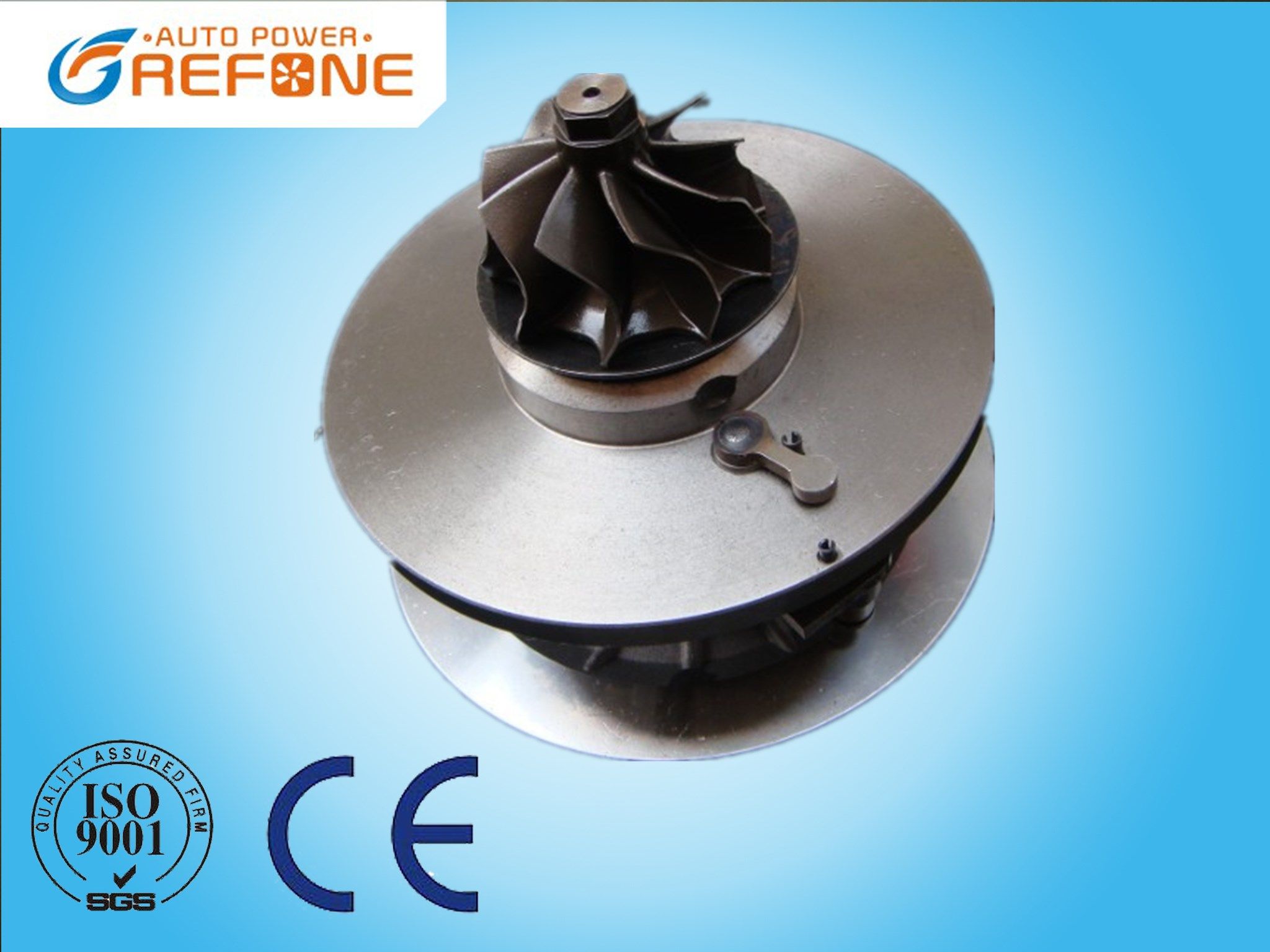

Garrett 716665-0001 Turbocharger Core Chra for Alfa and FIAT

Name: Garrett 716665-0001 Turbocharger Core Chra for Alfa and FIAT
Brand: ibuyautoparts.com
SKU: 670089731
Availability: InStock
Rating: 4.3 (80 reviews)

Price:	US $ 160-180/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

Part Number	716665-5002S
Previous Version	716665-0001, 716665-0002, 716665-9003S, 716665-2
OE number	55191934, 46793334, 71783873, 71785259, 71785260, 71783874
Year	2003-04
Description	Alfa Romeo 147/156 JTD, Lancia LYBRA JTD, Fiat STILO JTD
CHRA	703890-0043
Turbo Model	GT1749V
Engine	M724.19 16Ventil, M.724.19
Displacement	1.9L, 1900 ccm
KW	110/140 HP
RPM Max	4000
Fuel	Diesel
Angle a (compressor housing)	0
Angle (turbine housing)	145.5
Bearing housing	722282-0057
Turbine Wheel	434533-0018
Comp. Wheel	702489-0001
Back plate	700593-0003
Heat Shield	433112-0001
Repair Kit	N/A
Turbine Housing A/R	VNT2
Settings Waste gate (pressure)	0.264-0.269 barr
Settings Waste gate (lifting rod)	3.5-6.0 mm
Gasket oil inlet	210243
Gasket (turbine inlet)	210385
Manufacturer	Honeywell-Garrett

Applications

2003- Alfa Romeo 147 JTD with M.724.19 Engine

2003- Alfa Romeo 156 JTD 140 with M.724.19 Engine

2003- Fiat Stilo JTD 140 with M.724.19 Engine

2004- Lancia Lybra JTD 140 with M.724.19 Engine

Hot selling GARRETT turbos:

GT2052S	GARRET	727266-0001		PERKINS	Perkins 3CX T4.40
GT2052S	GARRET	452239-0005	PMF100460	LAND ROVER	2.5D	MDI 525
GT2052S	GARRET	703389-0002	28230-41431	HYUNDAI	Mighty HD72 3.3T	D4AL
GT2052LS	GARRET	731320-0001	PMF000090	LAND ROVER	ROVER 75	K1800 16V
GT2052V	GARRET	454192-0001	074145703E	VW	T4 Bus,Transport	TDI
GT2052V	GARRET	705954-0006	14411-2W203	NISSAN	MISTRAL 3.0
GT2052V	GARRET	454135-0005	059145701F	AUDI	A4 ,2.5L ,150	TDI V6
GT2052V	GARRET	454135-0001/2	059145701C	AUDI	A4 ,2.5L ,180	TDI V6
GT2052V	GARRET	454135-0006	059145701G	AUDI	A4 , 2.5L	TDI V6
GT2052V	GARRET	454205-0006	074145701DV248	VW	LT II van	TDI
GTA2052V	GARRET	752610-0015	6C1Q-6K682-EN	FORD	Transit V-347,2.4L,2006	2,4TDCI

Prod Model:	GT1749V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:	M.724.19
MOQ:	1PCS
Material:	K18 Shaft and Wheel
Kw:	110/140 HP
Displacement:	1.9L, 1900 CCM
Part Number:	716665
Balancing:	UK Turbo Technics Balancing-Testing
Certification:	CE
Body Material:	Iron
Application:	FIAT
Type:	Turbocharger

Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.

Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.

The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.

Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
