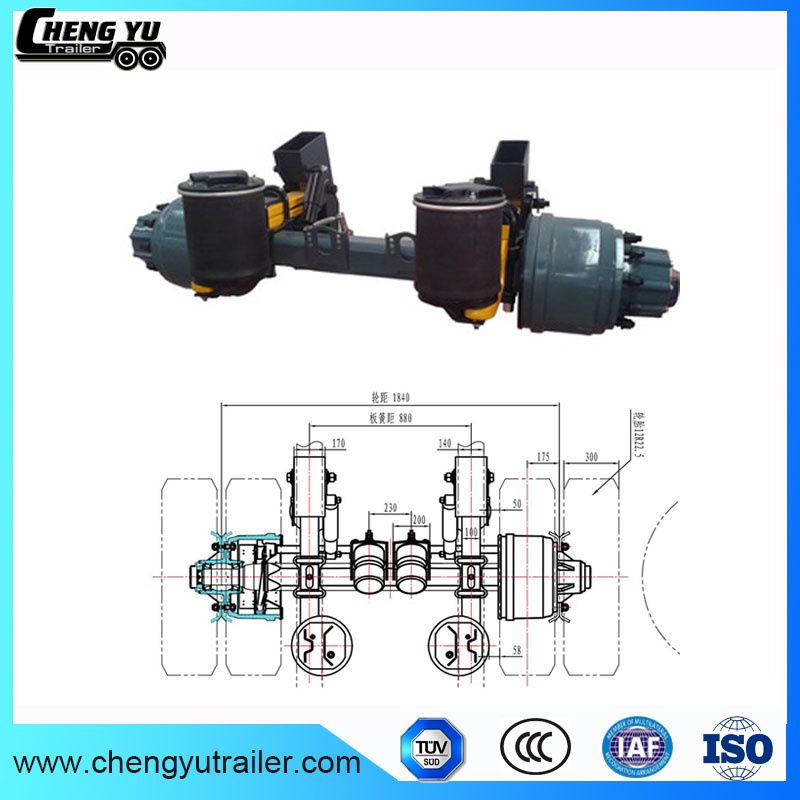

Fuwa round American semi trailer axles with air suspension

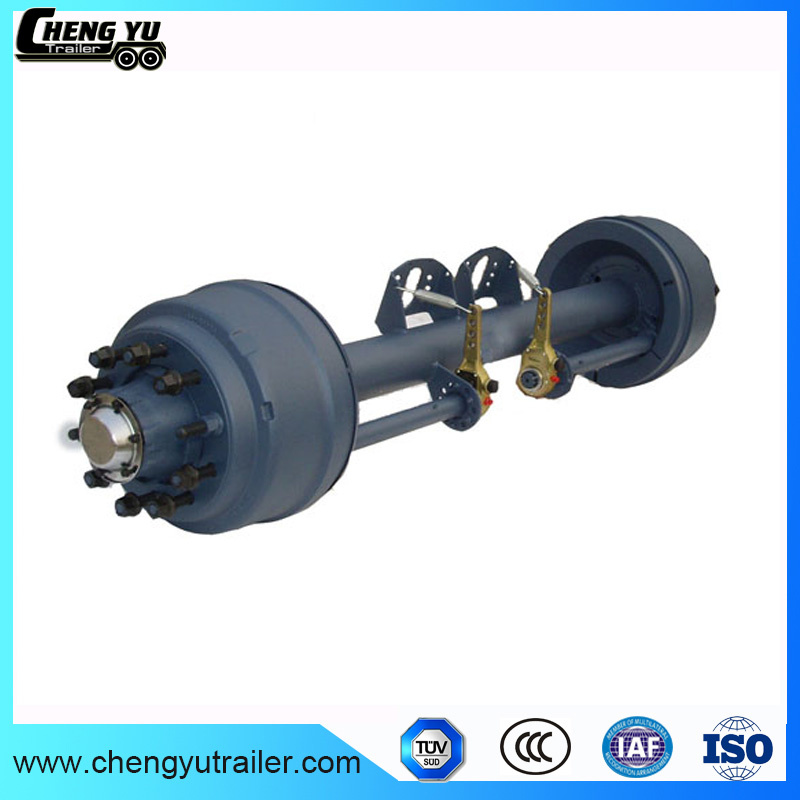

Outboard Brake Drum Heavy Duty Truck Semi Trailer Axles Introduction:1.Non-welded trailer axle shaft, can be seen as a rigid beam, the fulcrum is located in the center of the tire, the load and the plate springs.
2.Quality semi-trailer axles are unsprung mass of the vehicle's ride disadvantage.
3.Trailer optional according to user requirements with excellent performance we can use outsourcing assembly parts or parts assembly.
4.Its axis head and shaft are high-quality steel, shaft is integral or welded rectangular hollow section.

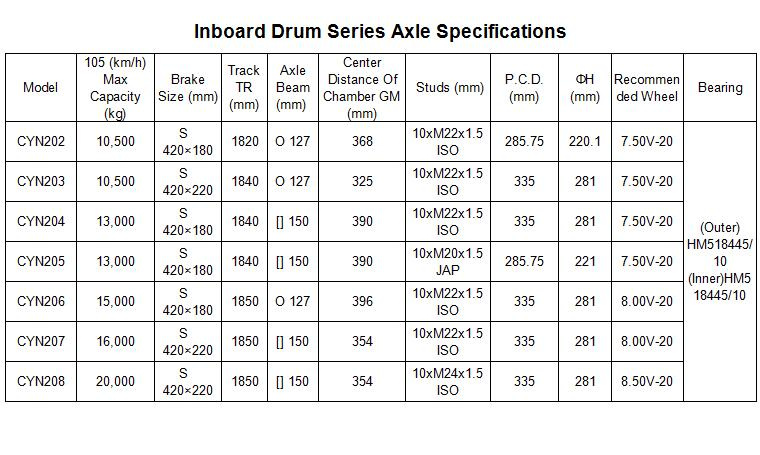

Semi Trailer spare parts FUWA 9ton-16ton heavy duty axle specificationCapacity(kg):11000
Brake Series:420*180
Track length(mm):1900
Spring distence(mm):980
Axle beam(mm):Round 127
Stud(mm):10-M22×1.5 ISO
P.C.D:285.75
Bearing:HM518445/10
Type:Outboard
All the specifications can be designed as your requirement.

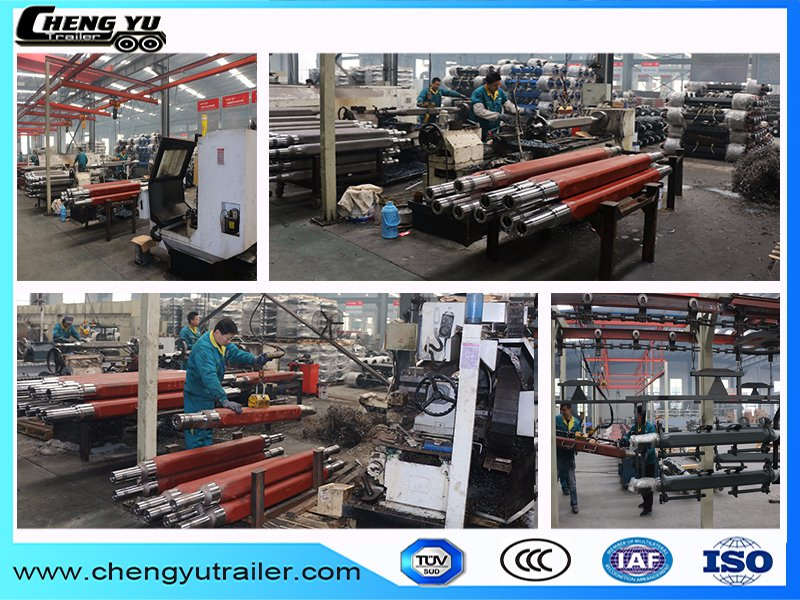

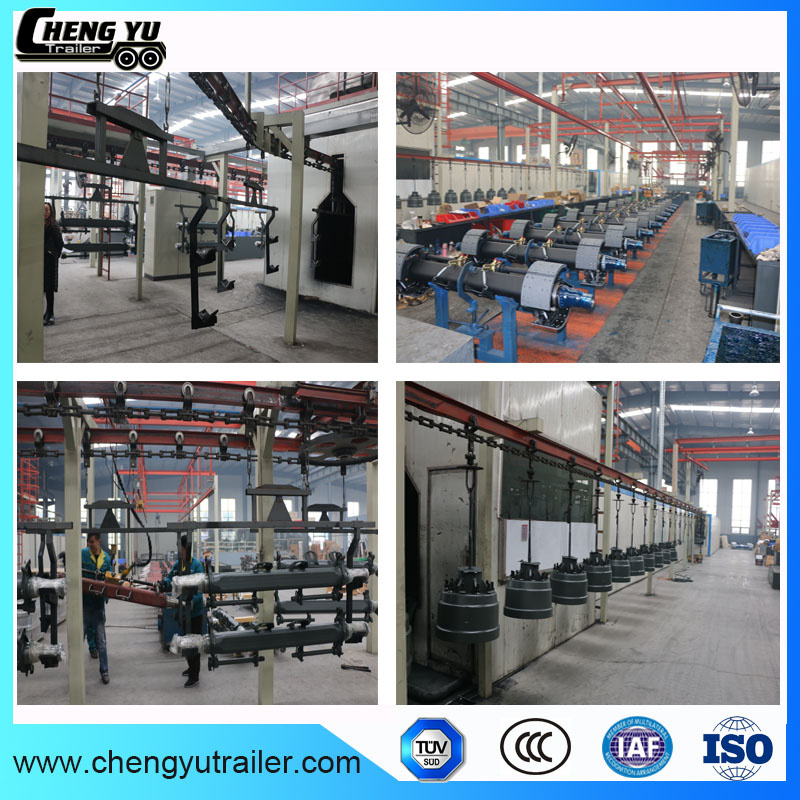

Our factoryFounded In 1997,Shandong Chengyu Automobile Manufacturing Co., Ltd. Is The National Ministry Of Industry And Information Announced Management Enterprise; It Passed "3c" Compulsory Product Quality Certification And Iso9001 Quality Management System Certification; It Has Own Self-Management Import And Export Right.
Our service:1. OEM Manufacturing welcome: Product, Package...
2. Sample order accepted.
3. We will reply you for your inquiry in 24 hours.
4. After sales service.
5.We will track the products for you once every two days, until you get the products.
6.When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

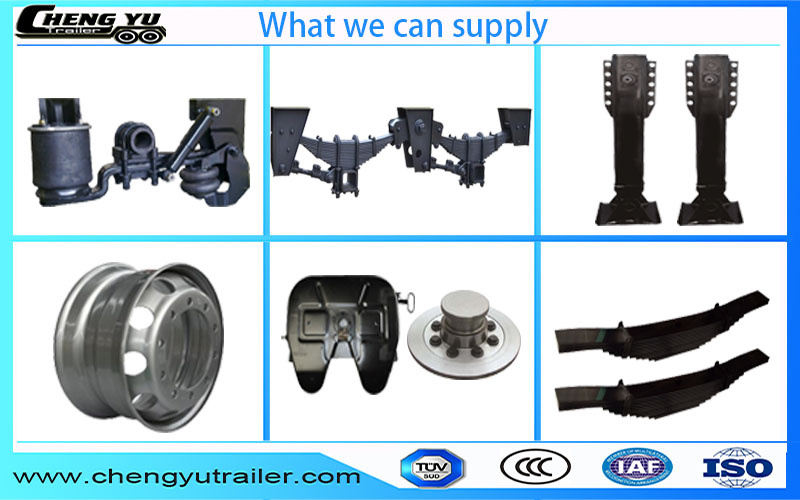

There are also more other semi trailer spare parts for your choice,please send us inquiry.Welcome to contact us:Sales manager:Vivian Lee
Tel:86-532-86984246
Fax:86-532-86984246
Mobile:86-13780604743
Website:http://www.chengyutrailer.com
Address:No.216 Changjiang Road,Qingdao,China
FAQ:Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8:Which models of spare parts do you supply? America model or European model?A:No matter American model or European Model, we both supply. And we can quote according to your OE number, drawing or main product dimension or specification.
Q9:How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Chengyu Trailer belongs to Chengyu Group which is one of the biggest manufacturers for all kinds of trucks, especially for the semi trailers and parts in shandong. Located in the famous "Water Margin" hometown -- The "China Special Vehicle Production Base". Chengyu Group has more than 500 Staffs, including one 20 Years' experienced engineering technicians team. With an annual output production capacity of 20, 000 sets of special purpose vehicles, 100, 000 pieces of semi trailer axles 50, 000 sets suspensions.
Our leading products include "Chengyu" brand semi trailer, fuel tanker, particle material tank trailer, bulk cement tanker, concrete mixer and pump truck and other special vehicles. "Chengyu" brand axle, air Suspension, landing gear and other parts are also popular used by all over the world customers.
Chengyu relies on the world first-class production line, professional R&D, technical team and skilled workers has won the IS09001: 2000, ISO/TS16949: 2009 and won the title of Brand-Name Products In Shandong Province; USA DOT and Europe EMARK Certificates.
As a leader of China special vehicle industry, Chengyu got the recognition and support by vast number customers and friends during the past 20 years development, Chengyu is willing to cooperate with customers and friends all over the world to create a brilliant tomorrow.
