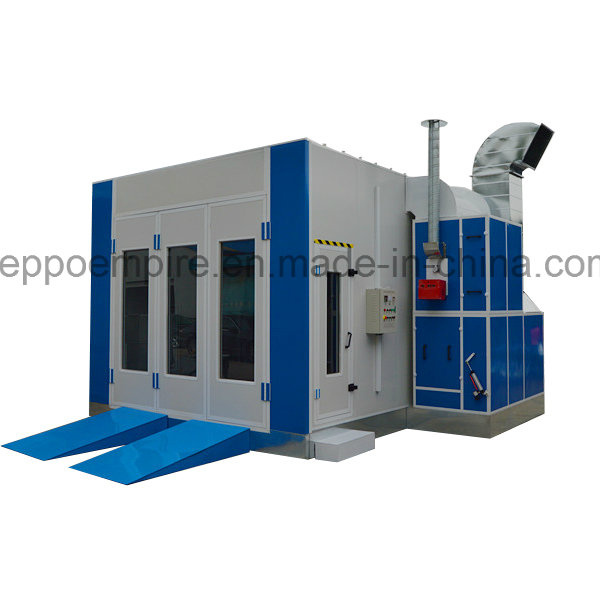

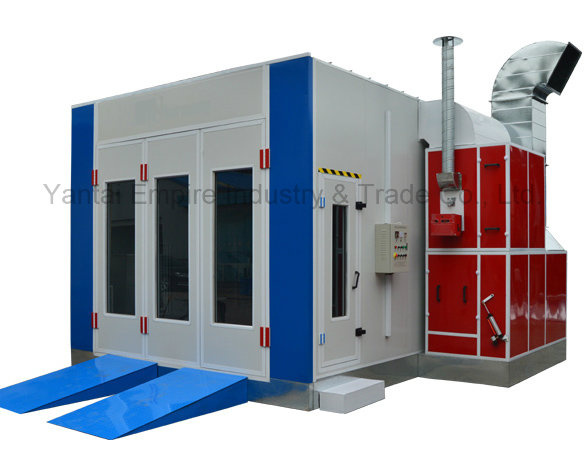

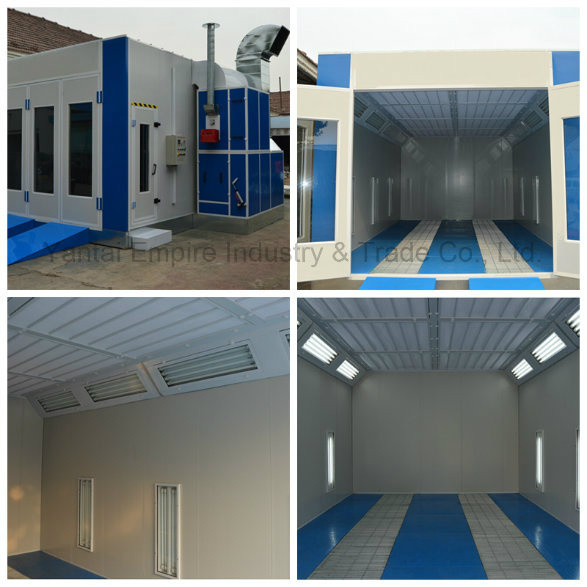

EP-200 EMPIRE Spray Booth(CE Approved)
| EP-200 Specification Datails |
| Dimension | Length(mm) | Width(mm) | Height(mm) |
| Booth Outside | 7000mm | 5200mm | 3500mm |
| Booth Inside | 6900mm | 3900mm | 2750mm |
| Cabin System | Wallboard | Fire-retardant composite molding Sandwich style EPS(epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, EPS foam Density is 14kg/m³ ; The colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulationperformance. Four colors for your choice, including blue, red, orange and white. High quality galvanized steel roof panel. |

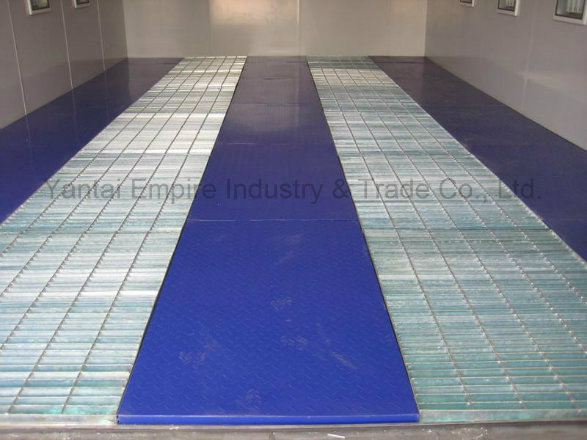

| Basement | 300mm high powder coating galvanized steel sheet and square steel pipe construction. 3 row of checked plate and 2 row of grids ,anti-rust and strong. The bearing capacity of driving grids up to 1000 kg per wheel; Basement frame is assembly formed by antirust steel square tube, the overall performance is good and strong. Two powder coating ramps. |
| Door | 3 pieces of aluminum front doors. Size: 3000(w)*2750(h). 1 piece of emergency door. |
| Air Circulation System | Intake Fan | 2x4kw intake fan. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow: 24,000m3/h. The wire core of our fans is full cooper so our fans are very durable. |
| Exhaust Fan | 1x5.5kw exhaust fan. Multi-layer fiberglass filter. Siemens technology production, large air volume and low noise. Air flow: 15,500m3/h. |
| Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow. |
| Filtering | Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter and filter beside exhaust fan can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98%. |
| Heating System | Burner | Original Italy RIELLO G20 diesel burner, 200,000Kcal/h. The heating time 5-7min(20-60°C) Max temperature at 80°C. Fuel consumption is 4-5kg/ vehicle. |
| Heat Exchanger | Big heat exchanger with two layers. Made of stainless steel. The heat exchange rate can reach 85%. Two layers to make our heating system safer and get higher heat exchange rate. What is more, we make two wings to make the temperature rise more quickly and save energy. |
| Air make up cabinet | The surface plate is powder coated galvanized plate, antirust, strong and beautiful;The frame is treated by hot-dip, antirust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. |
| Oil tank support | Tank carefully made of high quality steel, the powder coated treatment, beautiful and durable. |
| Fume pipe | Fume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows. |
| LED Lighting System | Ceiling Light: 8*4=32pcs, 40w each, with light fixtures, anti-explosion design. CE approved |

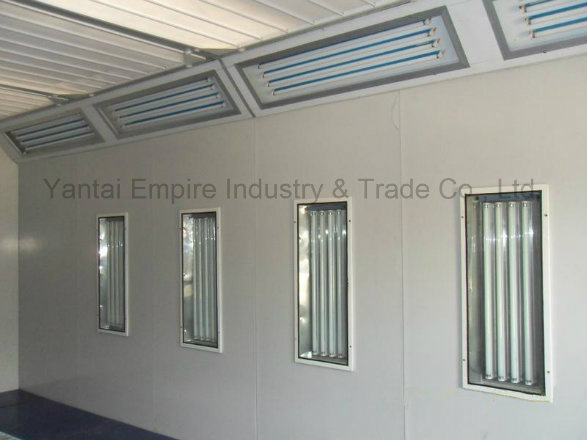

| Side Light: 8*4=32pcs, 40w each, with light fixtures, anti-explosion design. CE approved |
| Control system | Control panel | Microcomputer control system |
| Function | Painting, constant temperature painting , drying, lighting, painting time and drying time setting;
emergency stop switch, failure indication etc,especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe. |
| **Include All Hardwarew, Fasteners, and Sealants. |
When you need a spray booth or some similiar products,
Please contact with me without hesitate.
Welcome to visit our factory!
Sale Manager: Lynn Ding
Tel: +86 535 624 1918
Phone: +86-138-5450-0259
