Autol Technology Co., Limited >> Fuel Injection System Testing Machine CNC-600 Advanced Electromechanical Fuel Injector Cleaning Machine CNC-600

Fuel Injection System Testing Machine CNC-600 Advanced Electromechanical Fuel Injector Cleaning Machine CNC-600

Fuel Injection System Testing Machine CNC-600 Advanced Electromechanical Fuel Injector Cleaning Machine CNC-600
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Fuel injection system testing machine CNC-600 advanced electromechanical fuel injector cleaning machine CNC-600



CNC600 injector cleaner and tester 110V and 220V the same function as Launch CNC602A

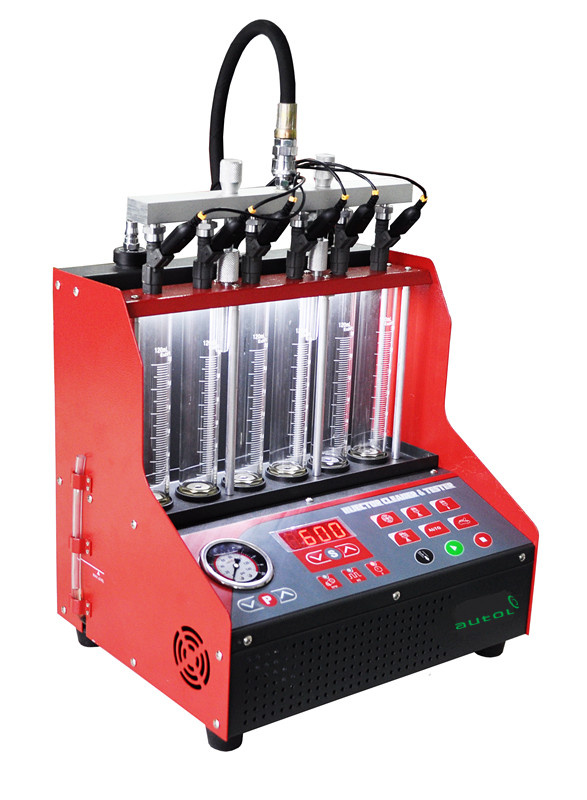

CNC-600 is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.


1 Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2 Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3 Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4 Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
5 Auto. test: To test injectors by simulating different working conditions.
6 On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.


Fuel injector cleaning machine CNC-600 Series
Injector Cleaner & Tester
Injector cleaning
Injector testing
On-vehicle cleaning (optional)

Functions
Direct flush
Reverse flush
Ultrasonic cleaning
On-vehicle cleaning (optional adapters)
Spray ability test
Uniformity test
Leakage test
Injecting flow test
Electronic drain


Fuel injector cleaning machine CNC-600 Specifications
Power supply: AC220V~50/60Hz
Input power of main unit: 200W
Ultrasonic cleaner power: 60W
Pressure: 0~7bar
Accuracy of tube: ±2%
RPM range: 0~9999rpm, step: 10 rpm
PW range: 0.1~30ms, step: 0.1ms
Timing: 1~30min
LED display
LED background light
Membrane keypad
Top-supply fuel distributor



Fuel injector cleaning machine CNC-600 Features
Optimization structure design
LED backlight
Be equipped with cooling fan
Special material seals
Friendly interface


Remark: Standard Package Of CNC600 Is Not With any liquid ( Testing and cleaning liquid )due to the regulation of Chinese Customs,Please note.







Danae






Prod Model: 608010003
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number: CNC 600 Injector Cleaner & Tester
Launch: CNC 600 Injector Cleaner & Tester
Item Type: Fuel Injector Diagnostic and Cleaning Machine
Special Features: Fuel Injector Cleaning Machine
Name: CNC 600 Injector Cleaner & Tester
Feature: Fuel Injector Diagnostic and Cleaning Machine
Function: Fuel Injector Cleaning Machine
Keywords: Fuel Injector Tester and Cleaner
Products Name: CNC 600 Injector Cleaner & Tester
Brand Name: CNC600 Ultrasonic Injector Cleaner Machine
Certification: CE
Update Method: by Internet
