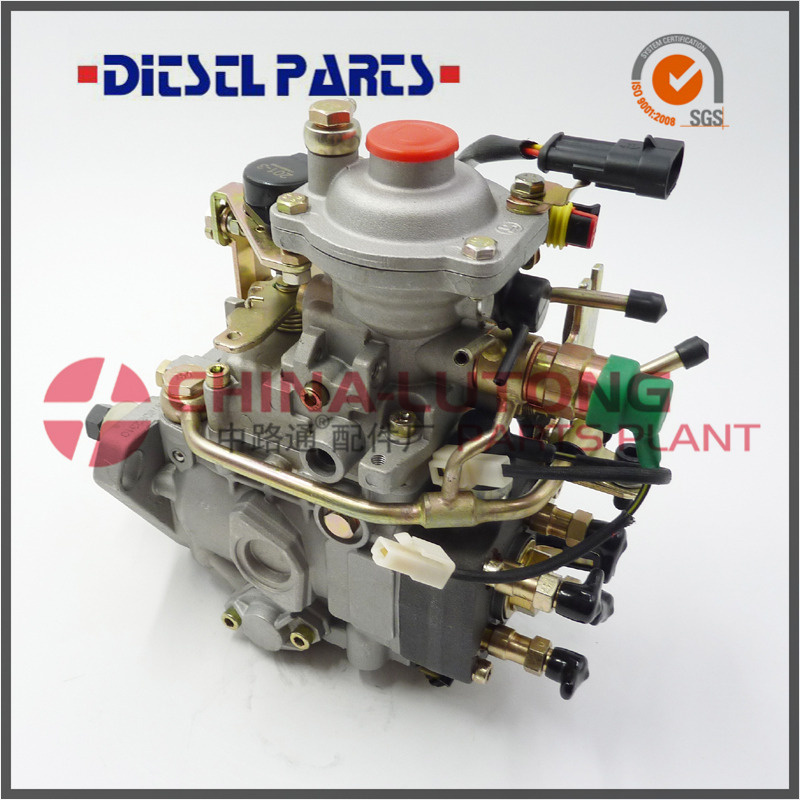

VE Diesel injection pump NJ-VE4/11E1800R017 for DONG FENG CYQD32T EUO3
China Lutong Part Plant is specialist for Diesel Fuel Injection Parts, Especially Diesel Parts for VE Diesel injection pump, Such as Rotor Head, Diesel Nozzles, Plungers and Delivery valve etc Reference components in Fuel Injection Parts.
Also launched VE pumps for years, about VE pumps:
The purpose of the fuel injection pump is to deliver an exact metered amount of fuel, under high pressure, at the right time to the injector. The injector, unlike in a gasoline engine, injects the fuel directly into the cylinder or a prechamber connected to the cylinder.
The VE in the name of the Bosch pump used in the VW diesels and many other small diesel engines stands for "Verteiler", which is German for distributor or divider. The other common kind of injection pump is the inline pump. The difference between them is that the "Verteiler" VE pump has one fuel metering plunger, and a mechanism (the "Verteiler"/distributor) to send the fuel to the right cylider. The inline pump has one plunger for each cylinder.
Some other functions of the fuel injection pump are:
Timing-- The timing is adjusted in response to engine RPM. At higher RPM s, the fuel pressure from the vane transfer pump is higher. Pressure changes effects a spring loaded plunger, and the resulting movement will move the cam rollers to either advance or retard the timing. There is also a cold start device which advances the idle timing manually.
Governor-- A mechanical governor limits the maximum speed of the engine to 4800 rpm in the bus/vanagon application and 5350 rpm in newer passenger cars. It can be seen just above the cam disk in the middle figure.
Stop-- A magnet valve or solenoid (shown in the figures) opens and shuts off the fuel channel between the feed pump and the metering pump.
Aneroid-- An air inlet pressure sensor is used to determine maximum amount of fuel delivered on injection pumps for turbo engines. On newer ('89 and later) naturally aspirated engines a similar arrangement is used for altitude compensation.
Reference: http://www.cs.rochester.edu/u/jag/vw/engine/fi/injpump.html
Now the items for our VE pumps as following:
Any comments, please contact with me tina at China-lutong. Net
| Item | OEM | LUTONG # | LUTONG # | Engine |
| 1 | NJ-VE4/11F1900LNJ03 | ADS-VE4/11F1900L003 | 2000110003 | JX493Q1
GW4D28 |
| 2 | NJ-VE4/11F1250L009 | ADS-VE4/11F1250L004 | 2000110004 | JX493Q1/PD2009 |
| 3 | NJ-VE4/12F1900LNJ01 | ADS-VE4/12F1900L005 | 2000110005 | 4JB1 |
| 4 | WF-VE4/11F1900L002 | ADS-VE4/11F1900L006 | 2000220006 | HFC 4DA1-1 |
| 5 | NJ-VE4/11F1900L005 0001060005-Z | ADS-VE4/11F1900L008 | 2000220008 | JX493ZQ4A-47 |
| 6 | NJ-VE4/11F1900L064 0001060064 | ADS-VE4/11F1900L010 | 2000220010 | JX493ZQ4A-53 |
| 7 | 104641-7280 NP-VE4/11F1800LNP2495 | ADS-VE4/11F1800L012 | 104641-7280 | JX493ZQ |
| 8 | 104641-7172 NP-VE4/11F1800LNP2371 | ADS-VE4/11F1800L013 | 104641-7172 | JX493ZQ |
| 9 | 00.02.06.0019 NJ-VE4/11E1800L019 | ADS-VE4/11E1800L016 | 2000330016 | JX493ZLQ3A |
| 10 | 00.02.06.0025 NJ-VE4/11E1800L025 | ADS-VE4/11E1800L017 | 2000330017 | JX493ZQ5C |
| 11 | NJ-VE4/12E1650R005 | ADS-VE4/12E1650R018 | 2000330018 | 4D20(486) |
| 12 | NJ-VE4/11E1800L013 | ADS-VE4/11E1800L019 | 2000330019 | 4JB1T1(493) |
| 13 | NJ-VE4/11E1600R015 | ADS-VE4/11E1600R020 | 2000330020 | 488 |
| 14 | NJ-VE4/11E1800L047 | ADS-VE4/11E1800L022 | 2000330022 | 493\4DA1-1B |
| 15 | NJ-VE4/11E1800L008 | ADS-VE4/11E1800L023 | 2000330023 | suzl 100P |
| 16 | NJ-VE4/11E1800L024 | ADS-VE4/11E1800L024 | 2000330024 | suzl |
China Lutong Parts Plant is a manufacturer specialist in diesel engine parts. The majored products are Head Rotor (VE Pump Parts) Nozzle, Plunger, Delivery Valve and so on. As an elder manufacturer for diesel engine parts, VE pump parts, we keep step with the international standard and techniques. And we absorb the advanced producing and testing technique. The quality of our products is in the same class with other overseas famous manufacturers.
China Lutong is a manufacturer specialist in diesel injection parts for about 25years. We adjust our step, in draught the advanced producing techniques and high precision equipment to improve our quality with the opportunity and challenge brought by WTO. The quality of us is in the advance in Auto Parts field.
Our majored products is VE Pump and the interrelated products (such as Head Rotor, Feed Pump, Cam Plate, Drive Shaft, Magnet Valve, etc. ), Plunger (A, AS, P, PS7100, P8500, MW type, etc. ), Nozzle (DN, DNOPDN, S, SN, PN and so on. ), Delivery Valve, Cat Pencil Nozzle, Head Rotor Lucas...
If you have any interested in our products or have any inquiry, Please don't hesitate to contact us. We will do our best to offer you our high quality products and best service to satisfy you.
