Qingdao Pafic Hardware Co., Ltd. >> Front Truck Brake Rotor 9424212112 for Actros Setra

Front Truck Brake Rotor 9424212112 for Actros Setra

Front Truck Brake Rotor 9424212112 for Actros Setra
Price: US $ 30-35/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P
§Product Name§

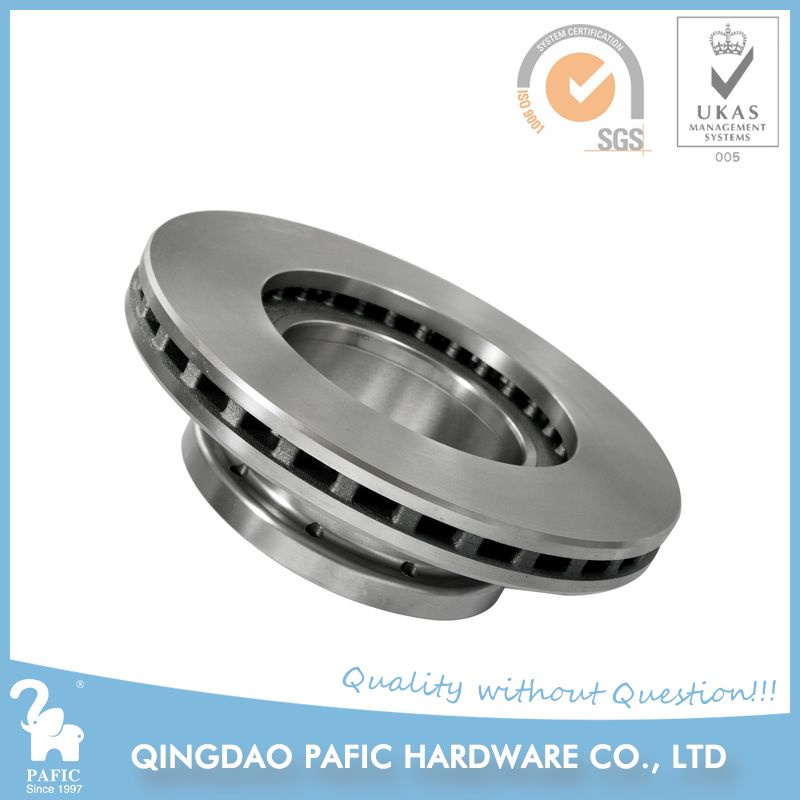

Front truck disc brake rotor 9424212112 for MERCEDES ACTROS SETRA

§Features§

≡ ISO14001 environmental friendly, sufficient production capacity
≡ Over 3000 references, one-stop supply
≡ Automated production,  reducing prices for 10%
≡ 1.5 year/35,000 km warranty
≡ Match original brake pads, micro structure conforming to Bosch standard
≡ Oil, Geomet coating, black hat painted etc.

§Product Description§

OE No.9424212112, 9424211212, 9424211112
Car modelsMecedes Actros, Setra
CertificateTS16949, ISO9001, ECE R90, ISO14001
MaterialGrey iron, GG20, G3000
Weight34.56 Kg
TypeVented
PositionFront
Dimension
(mm)
outer diameter430
center bore211
thickness45
total height132.5
MOQ1 pallet
PortQingdao, China
Delivery35 days to Qingdao port
PaymentL/C, T/T, D/P
HS Code8708309990

§Specifications§

MaterialGG20
ChemicalC                            3.00-3.50
Si                            1.90-2.30
Mn                            0.60-0.90
S                            0.12
P                            0.10
Tensile strength≥200N/mm
Hardness150-230
MatrixPearlite≥95%,Carbide≤1%
Graphitetype A+B>85%, B≤40%, C≤5%, D+E≤10%
size:3~5
DTV≤0.015
Run out≤0.05
Balancing 100%

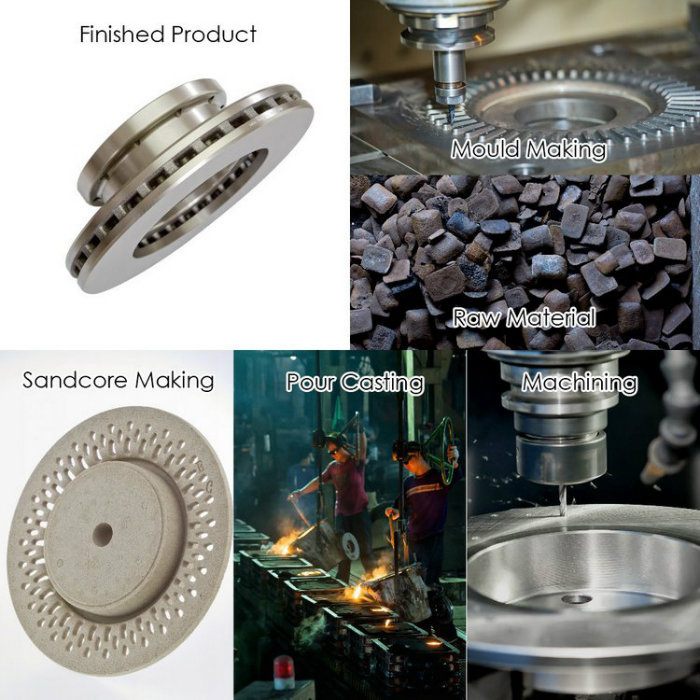

§Production Process§

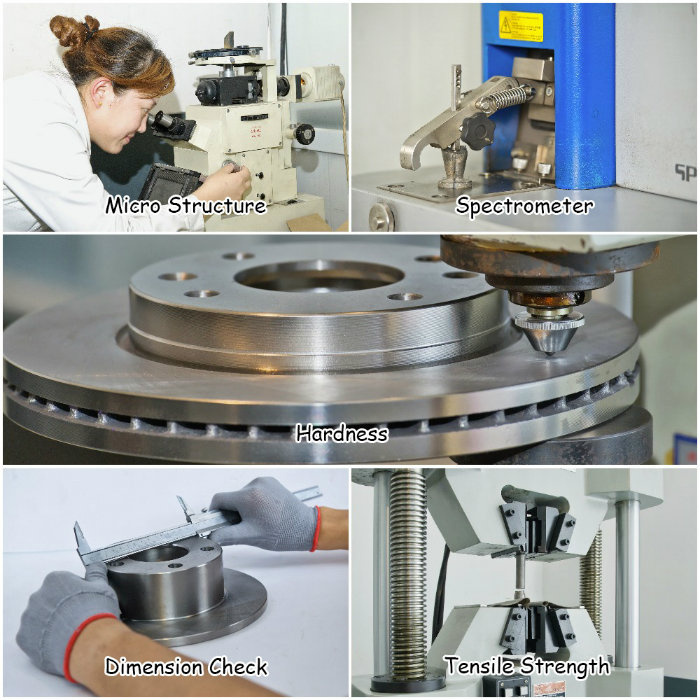

§Quality Control§




Prod Model: 9424212112/9424211212/9424211112
Raw Material: G3000, Gg20, Ht250
Vented: Yes
Car Model: Mercedes Actros, Setra
MOQ: 50 PCS
Machining: Turning/ Cross Grinding
Surface Treatment: Anti-Rust Oil
Outer Diameter: 430 mm
Center Bore: 211 mm
Height: 132.5 mm
Thickness: 45 mm
Type: Brake Discs
Material: Iron
Position: Front
Certification: ECE
Qingdao Pafic Hardware Co., Ltd. is located in Qingdao, a beautiful sea port city only one hour away by flight from both Beijing and Shanghai. We are full service manufacturer and exporter of metal and plastic parts. We can also modify original designs according to customer's request. PAFIC was ISO9001: 2000 certified in 2004 and passed Walmart Audited Supplier. Our factory was in Jiaozhou, and has been expanded to cover an area of 22, 000 square meters with more product lines since 2004.

Based on advanced equipment and technology, taking the advantage of highly qualified marketing, researching, managing teams, PAFIC has become one of the leading manufacturers and exporters of metal products in China. We will go on to make every effort to build a one-hundred-year company with excellent quality and good reputation!

Process we specialize in:

Metal parts: Welding, including GMAW, UW, GTAW, etc other AW; Stamping, including progressive die stamping; Cold and hot Drop-forging; Casting and Machining

Plastic parts: Blow, Injection and Extrusion Molding

Surface Treatment: HDG, GAVL., Dacromet, Chrome, Powder Coating, PVC

Our products:

Welded Based, Display, Gabion, Agricultural Machinery and Accessories, Fencing and Construction Components, Truck Parts and Accessories, Plastic Parts, Supermarket Displays, Sports and Playground System, Fasteners, Rigging and Marine Hardware, and other OEM products.

Primary competitive advantages:

Excellent and Experienced Teamwork

Experienced R&D Department

Production Capacity

Reliability

Buyer's Specifications Accepted
