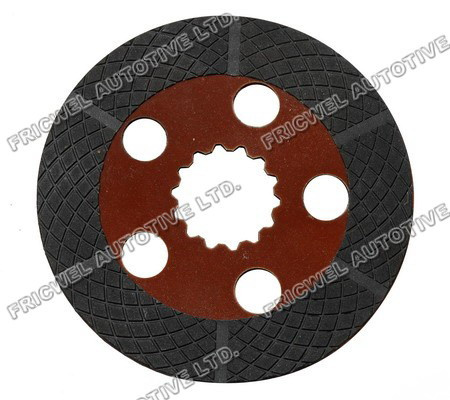

Friction Disc (5123165-14) for New Holland Tractor

5123165-14 INT Friction Disc

1, Dimension: 165*41*4.8 mm; , 14 inside gears;
2, Thickness: 4.8mm;
3, Friction disc for New Holland tractor
4, Packaging: 5 PCS per box, exterior with fiber box pallet(non wooden box);
5, Delivery time: 35 days from the date of receiving prepayment and signed contract;
6, Production: 100, 000 PCS per month.

The tractor friction plate we can provide including MASSEY FERGUSON, Ford, JOHN DEERE. The tractor friction plate and steel plate Dia. Dimension range from 128mm to 368mm. We had made our friction plate tooling list on the product cataglogue. Please use the OEM no. For any inquiry and information.
Our friction disc formula is same as our copper clutch button formula in our plant. The friction disc material is low wearing rate, proper frition coefficient. For MF tractor friction disc and friction plate, we can provide all series of OEM item list. Please refer to our online catalogue for any inquiry and information. Please refer to our online catalogue for any inquiry and information.

The parts including all kinds of the friction disc and the steel mating plate, friction disc parts diameter range from 54mm to 1038mm. The friction disc material we can provide for engineering machinery including paper material, carbon graphite and ceramic copper. Our regular paper friction materials test property shows as follows:
9713-1999 PAPER BASED WET DISK FOR ENGINEERING MACHINERY. Non-asbestos paper based disk, material weight percentage:
Paper 30%~40%, Aramid Fiber 3%~7%, Glass Fiber 10~17%, Porcelain Clay 9%~15%, Aluminum Oxide 12%~15%, Graphite 8%~10%, Phenolic Resin 11%~16%.

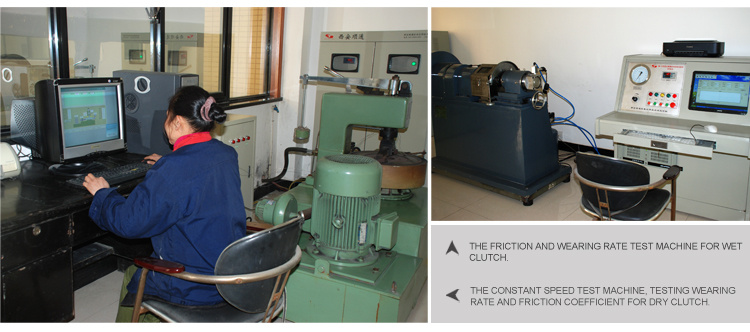

Paper based friction disc is tested inside oil dipped clutch disc test machine, paper based friction disc wear rate: 1.39X10-5 mm3/J ~1.46X10-5mm3/J, paper based facing is suitable for low speed, high torque and high power transmission. The adhesive property of paper disk is tested by bending method.

Static coefficient of friction and dynamic coefficient of friction, both comply with the national standard of paper based wet disk for engineering machinery.
