Foxwell Gt80 Plus Next Generation Diagnostic Platform Get Free Foxwell Nt1001 TPMS Trigger Tool
| Price: |
US $ 1690-1780/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SC75-E |
| Model Name: |
Foxwell Gt80 Plus |
| Item Type: |
Battery Testers |
| Technician Support: |
Free and in Time |
| Customs Clearance: |
Low Value on Invoice to Avoid High Duty |
| Warranty: |
1 Year Warranty |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
Product Description
Foxwell GT80 PLUS Next Generation Diagnostic Platform Automotive Service Tool WIFI Support
What Can GT80 PLUS Do ?
1. Compatible with the latest 2015/2016 models
2. Compatible with both OBDI and OBDII cars, SUVs, minivans, light-duty trucks sold worldwide
3. Get access to powertrain, chassis and body systems
4. Quick Test function to test most vehicle systems
5. Read and clear diagnostic trouble codes and resets MIL
6. View live vehicle sensors data in a text, graph and gauge format
7. Merge interactive live sensor graphs for easy and intuitive diagnosis
8. Live data self learning and alarm when live data over range
9. Record and playback your data logs for offline analysis
10. Read and clear freeze frame data
11. Run component/system bi-directional tests
12. Support adaptations and control module coding
13. Key coding for several vehicles
14. Support the most commonly required service features like brake deactivation, service resets, and transmission adaptations
15. Multi-language menus and code definitions for an international marketplace
16. Code troubleshooters provide you faster and easier diagnosis
GT80 PLUS Can Find Problems More Accurately

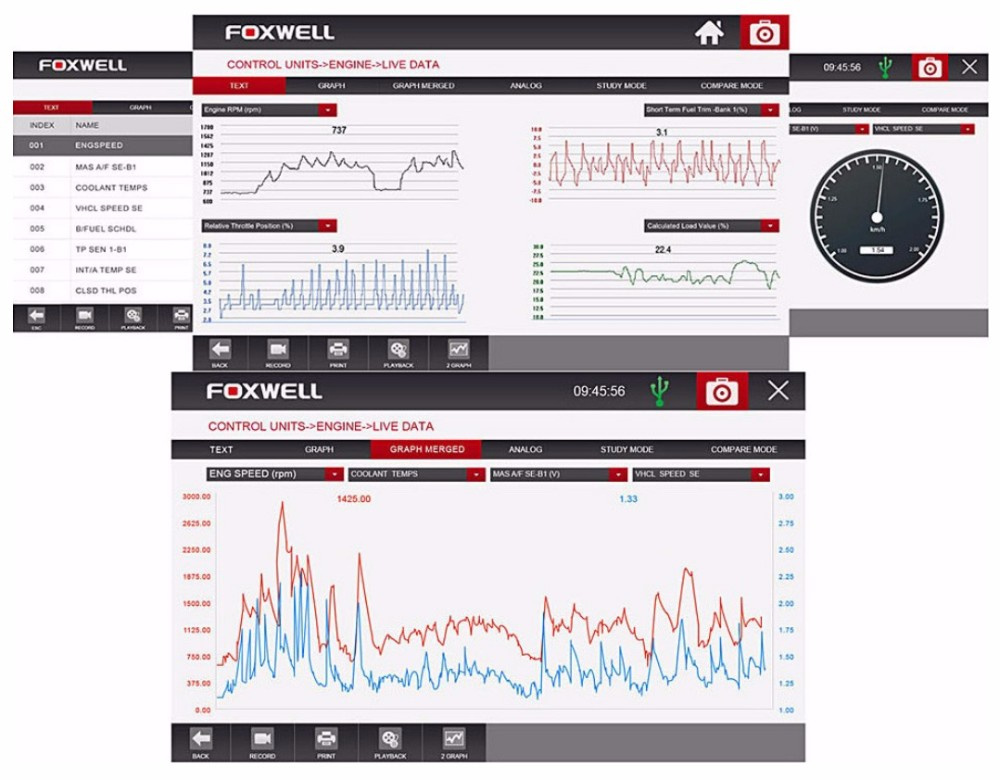

GT80 PLUS shows live vehicle sensors data in text, graph and gauge format and allows you to focus on any suspicious or symptom-specific data parameters. It's powerful graphing capability gives you the 'real picture' of what's going on in the vehicle. You can view up to 4 parameter graphs simultaneously. Still you can merge multiple PID plots into one coordinate, so you can easily see how they affect each other, providing you with the most comprehensive and functional look at live data possible.

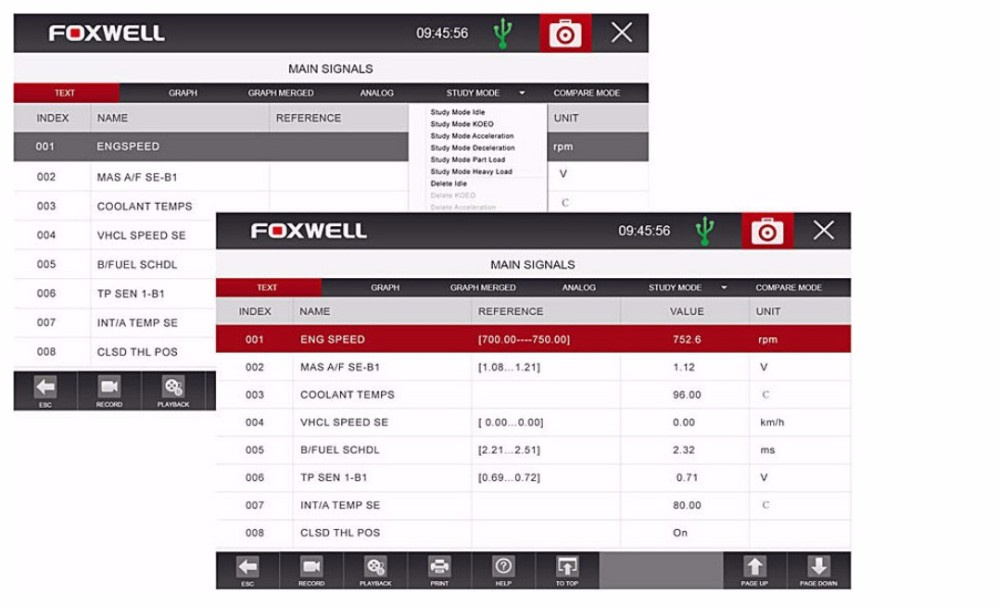

With the unique data parameter self-learning technology from Foxwell, GT80 PLUS provides unrivalled accurate diagnosis. It gives you the ability to learn good live sensor data values during idle, KEKO, acceleration, deceleration, part load and heavy load on each vehicle comes into your shop and records them for future reference. If that vehicle comes in with a problem, you can easily compare the faulty sensor and parameter readings to the good readings. Through sensor data learning and comparing, diagnostics can be done more quickly, accurately and efficiently, saving both time and money.
It is important to record data for long periods of time to capture intermittent problems not just seconds or several minutes. With GT80 PLUS, you can record for hours to make sure you capture the intermittent fault whenever it happens. Each recording will show when it was recorded, what vehicle and what controller it was recorded from, what parameters were recorded.
Playing back a recording is just like using the scan tool on a live vehicle. Playback speed and direction (forward or reverse) can also be controlled.
GT80 PLUS Features Actuations, Adaptations and Control Module Coding

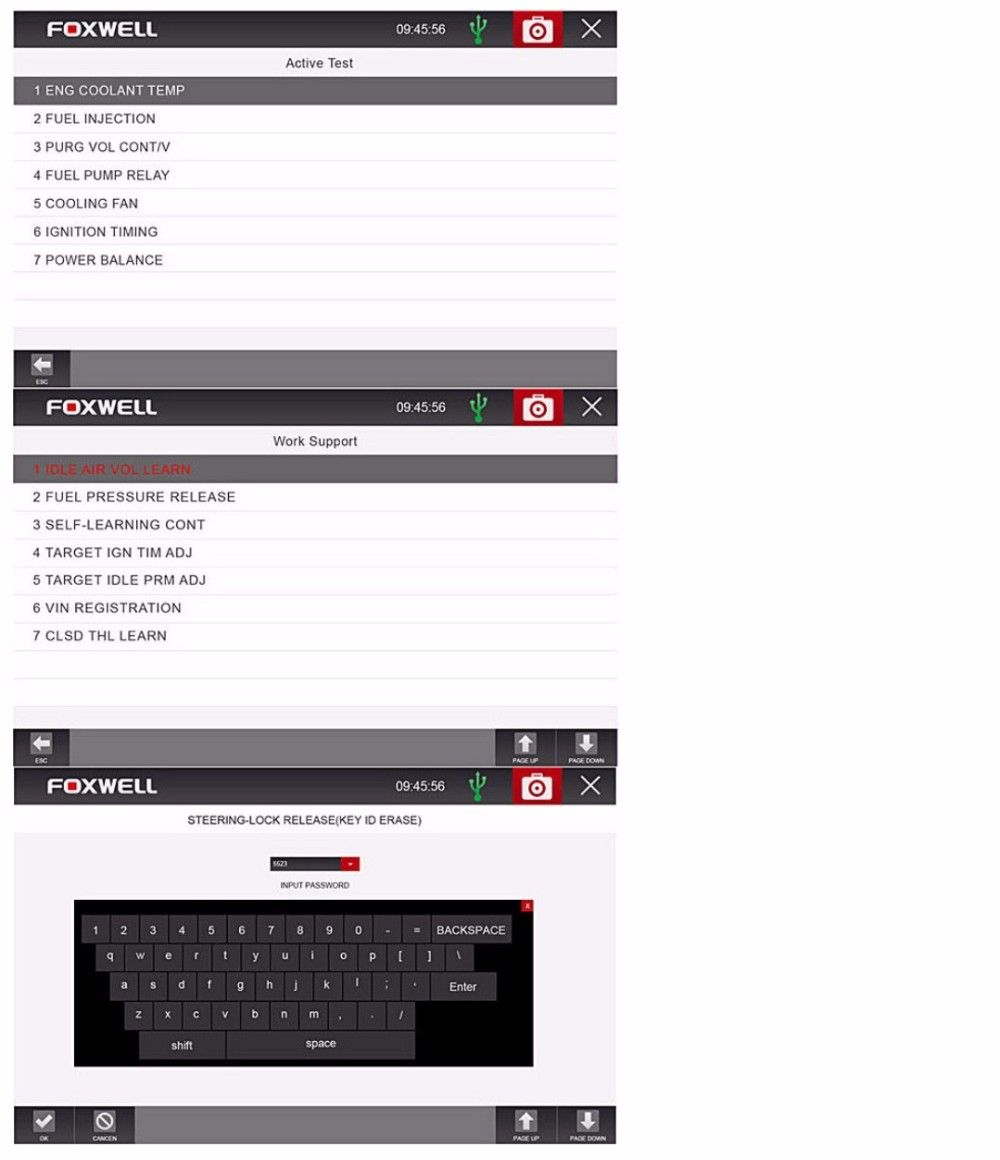

GT80 PLUS cannot only read your codes, but it can also actuate components, run system tests, program control modules. Reading the trouble codes from your vehicle is easy. But without live data, bi-directional controls and other special functions, you may not have enough information to get the problem fixed right. It allows you to use the scan tool temporarily activate or control a vehicle system or component. With GT80 PLUS, the check of electronic components such as switches, sensors, relays, & actuators is made a simple task, saving your time and labor costs. It gives you the ability to 'flash' a control unit with new program data. Provided that a module can be re-coded, GT80 PLUS allows for the coding and programing of a replacement control module or changing previously stored incorrect coding as expensive factory tools do. In addition, it lets you recode the transponder in a mechanical key or key FOB. When a key for a modern vehicle is replaced, the new unit will often turn the mechanical switch but fail to initialize the system or start the vehicle. If this occurs, it is typically because the transponder inside the key has not been coded to that particular system.
With these factory tool like functions, GT80 PLUS is an invaluable tool that allows you to perform complicated repairs faster and easier, boosting your bottom line and customer satisfaction.
GT80 PLUS Is Easy to Use

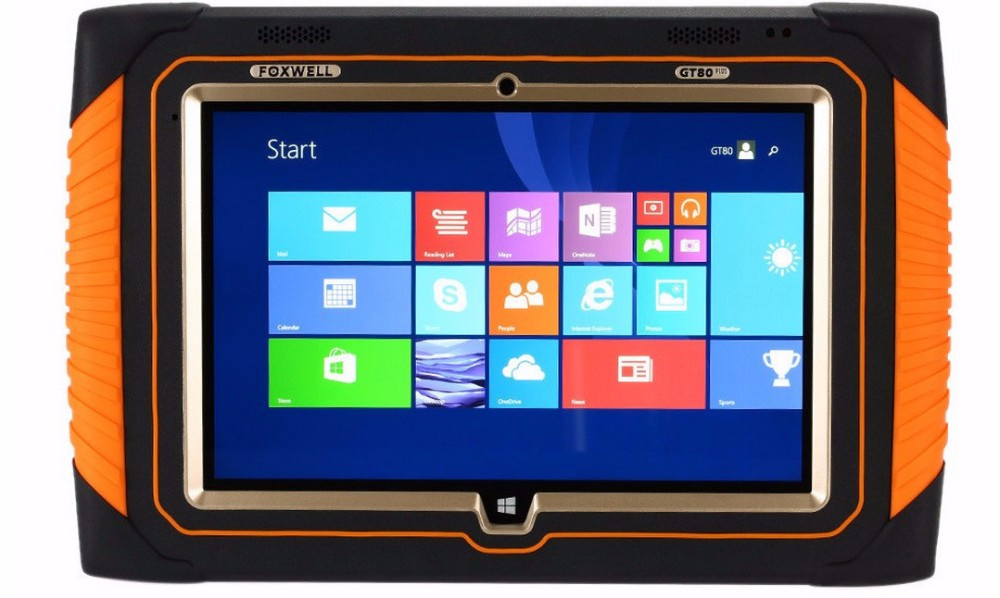

GT80 PLUS is designed to be easy to setup and use. With genuine Windows 8.1 operation system, Intel quad-core processor and 10.1" LED capacitive touch display, GT80 PLUS delivers much faster and easier diagnosis.
So you can focus on what's important-servicing the vehicle. It comes with menu-driven navigation and one-click update, so you won't have to waste your time on learning how to use the scan tool. Vehicle information is so user friendly presented that you can quickly navigate through to find what you need to get the vehicle fixed. GT80 PLUS provides simple ways to get to wherever you want to go from wherever you are.
GT80 PLUS Identifies Vehicle By VIN

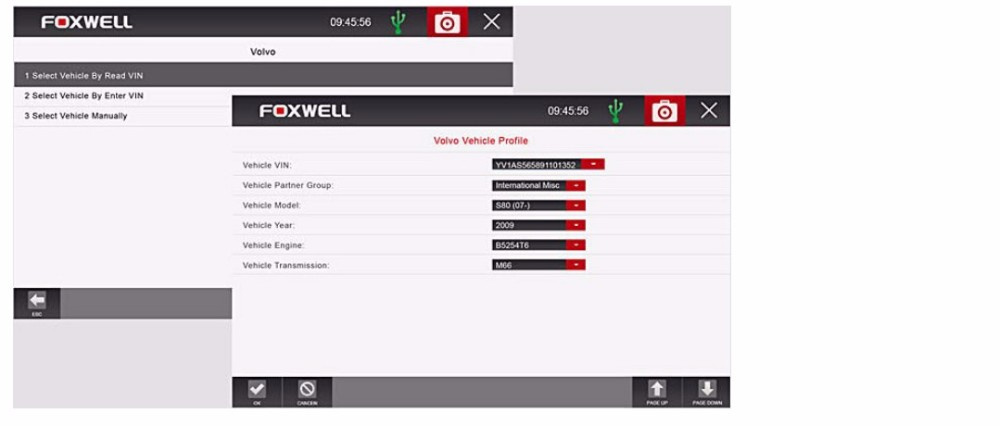

GT80 PLUS lets you identify the vehicle you are testing rapidly and accurately on the basis of its VIN number. With the diagnostic tool connected to the vehicle's OBD socket, it automatically retrieves the VIN code or you can enter it manually to identify the model you are working on.
GT80 PLUS Checks Available Controllers Automatically

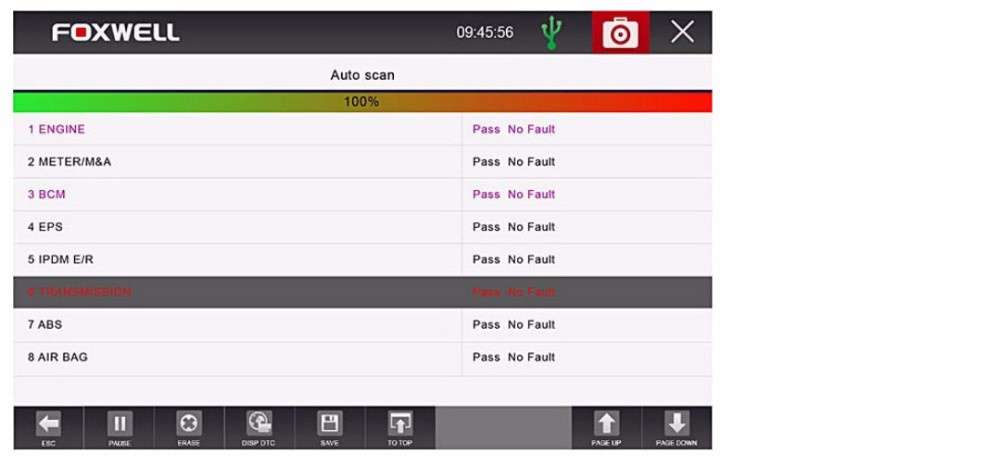

GT80 PLUS automatically checks and recognizes all available electronic control units on a vehicle in a matter of seconds. In addition, it instantly displays all the errors detected on the vehicle, and allows errors to be viewed and cleared with just a single click.
18-Month Free Updates
With Internet access, you will always have the latest bug fixes, new vehicles, newly added parameters and functionality at your fingertips. And they are free for the first 18 months after your registration.
Specifications :| Operation System | Windows 8.1 pro |
| Processor | Intel Atom (TM) CPU 1.33G Hz |
| Memory | 2GB RAM |
| SSD Hard drive | 32GB |
| SD Card | 16gb |
| System Type | 32-bit operating Systems, X64-based processor |
| Display | Backlit 1280*1280 pixel 10.1" LED capacitive touch screen |
| Communication Interface | Built-in WIFI 802.11 B/G Wireless LAN, USB2.0 , Bluetooth 4.0 |
| Sensors | Gravity accelerometer, Ambient Light Sensor ( ALS ) |
| Camera | 2 megapixels front-facing and rear-facing |
| Audio Input/Output | Microphone and dual Speaker |
| Working Temperature | 0-60C ( 32-140F) |
| Storage Temperature | -20 to 70C (-4 to 158F ) |
| Humidity | < = 90% |
| External Power | 8-18 Volts powered by vehicle battery |
| Battery | 7000mAh. Lithium-polymer battery.
Chargerable via 12V AC/DC power supply |
| Power Comsumption | 5W |
| Protocols | ISO9141-2,ISO1430-2,ISO15765-4,K/L lines, Double K Line SAE-J1850 VPW ,SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed , Lowspeed and Singlewire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN. |
| Dimensions | 330*215*55mm |
| Weight | NW: 1.55KG , GW : 8.65KG |
Packing List :
1pc GT80 Plus Main Unit
1pc AC/DC External Power Adapter
1pc AC/DC External Power Cord
1pc Diagnostic cable
1pc Cigarette Lighter
1pc Clip Cable
1pc For Benz 38pin adapter
1pc For BMW 20pin adapter
1pc For Toyota 17pin adapter
1pc For GM/Daewoo 12pin adapter
1pc For Honda 3pin adapter
1pc For Kia 20pin adapter
1pc For Mazda 17pin adapter
1pc For Mitsubishi 12+16pin adapter
1pc OBDII adapter
1pc For Nissan 14pin adapter
1pc For Toyota 22pin adapter
1pc For Fiat 3pin adapter
1pc For Audi 4pin adapter
1pc For PSA 2pin adapter
1pc User Manual
