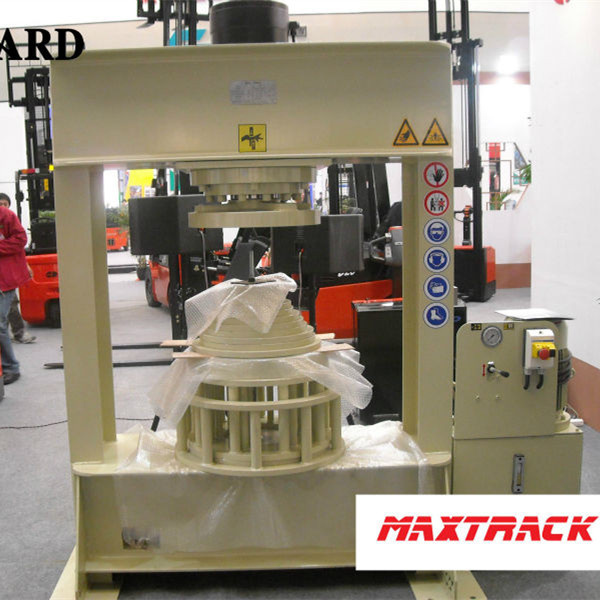

Solid Tires Press Machine
Size: TP80 TP120 TP160 TP200
Type: Auto Machine
Certification: CE ISO
Color: Blue, gray, and colors you need
TP80
Max Hydraulic Pressure(lb): 176000
Max Tyre Dimension(inch): 15
Total Length(inch): 64.6
Total Width(inch): 27.6
Total Height(inch): 85.4
Operating Pressure(MPa): 21
Cylinder Stroke(inch): 15.7
Oil Tank capacity(L): 30
Motor(hp): 7.37
Weight(lb): 2420
TP120
Max Hydraulic Pressure(lb): 264000
Max Tyre Dimension(inch): 20
Total Length(inch): 82.3
Total Width(inch): 33.5
Total Height(inch): 87
Operating Pressure(MPa): 25
Cylinder Stroke(inch): 15.7
Oil Tank capacity(L): 30
Motor(hp): 7.37
Weight(lb): 3322
TP160
Max Hydraulic Pressure(lb): 352000
Max Tyre Dimension(inch): 20
Total Length(inch): 82.3
Total Width(inch): 33.5
Total Height(inch): 87
Operating Pressure(MPa): 33
Cylinder Stroke(inch): 15.7
Oil Tank capacity(L): 30
Motor(hp): 10.1
Weight(lb): 3542
TP200
Max Hydraulic Pressure(lb): 440000
Max Tyre Dimension(inch): 20
Total Length(inch): 82.3
Total Width(inch): 36.6
Total Height(inch): 87
Operating Pressure(MPa): 33
Cylinder Stroke(inch): 15.7
Oil Tank capacity(L): 30
Motor(hp): 14.7
Weight(lb): 4642
TOOL-II
Max Tyre Dimension(mm): 508
Max Tyre Dimension(inch): 20
Cage(pcs): 4
Pusher Ring(pcs): 11
Flange Ring (pcs): 6
TOOL-IV
Max Tyre Dimension(mm): 508
Max Tyre Dimension(inch): 20
Cage(pcs): 6
Pusher Ring(pcs): 6
Cone(pcs): 6
Flange Ring (pcs): 3
Characteristics:
1. A special machine for pressing the steel rim into the solid tire
2. High-grade Hydraulic Cylinder
3. First-class quality
4. Operation Panel: Operated by a handle for Down/Up, stop at any position when the handle is released
5. Optional Tooling
6. Easy service & Heavy-duty application
7. Drived by electric hydraulic motor, easy to operate
8. Safe and durable.
Trade terms
Place of Origin: Liao ning, China (Mainland)
Brand Name: L-GUARD
Aim market: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
MOQ: One piece
About us
L-Guard tires corp is a well-established rubber-product enterprise, combining the most advanced design, processing technology and complete quality guarantee system. We have already formed L-GUARD tyres series as follows:
1. Standard and Cushion solid tyre, linde forklift tires, Non-marking solid tyre
2. Industrial tires
3. Skidsteer tires
4. Off the road /OTR tires
5. Agriculture tires
6. TBR PCR.
7. Rubber tracks.
8. Tires press machine, tires changer
9. Wheels
Advantage of our factory:
1, 20-days delivery, Guaranteed
2, Response with 12 hours
3, 12 years manufacturer experience
4, 8 year ALIBABA international approvals
5, Low Prices and Hight quality
6, Best OEM, ODM, OBM Service in the world
7, Our Products will make you Smile
8, We Promise Whatever You need
| Tyre Press |
|
|
| Item | Model | Description |
| 1 | TP80 | Max. Capacity 80 Ton, Openning size 900mm, W/O Toolings , Manual operation |
| 2 | TP120 | Max. Capacity 120 Ton, Openning size 1200mm, W/O Toolings , Manual operation |
| TP120 | Max. Capacity 120 Ton, Openning size 1500mm, W/O Toolings , Manual operation |
| TP120 | Max. Capacity 120 Ton, Openning size 1600mm, W/O Toolings , Manual operation |
| 3 | TP160 | Max. Capacity 160 Ton, Openning size 1200mm, W/O Toolings , Manual operation |
| TP160 | Max. Capacity 160 Ton, Openning size 1500mm, W/O Toolings , Manual operation |
| TP160 | Max. Capacity 160 Ton, Openning size 1600mm, W/O Toolings , Manual operation |
| 4 | TP200 | Max. Capacity 200 Ton, Openning size 1200mm, W/O Toolings , Manual operation |
| TP200 | Max. Capacity 200 Ton, Openning size 1500mm, W/O Toolings , Manual operation |
| TP200 | Max. Capacity 200 Ton, Openning size 1600mm, W/O Toolings , Manual operation |
| TP200 | Max. Capacity 200 Ton, Openning size 2000mm, W/O Toolings , Manual operation |
| Toolings |
|
|
| 1 | TOOL-I | Tooling suitable to II rims, Size 8"-15" |
| 2 | TOOL-II | Tooling suitable to II rims, Size 8"-20" |
| 3 | TOOL-III | Tooling suitable to IV rims, Size 8"-15" |
| 4 | TOOL-IV | Tooling suitable to IV rims, Size 8"-20" |
| 5 | TOOL-V | Tooling suitable to V rims, Size 8''-25'' |
