Refone Auto Power Co., Ltd.
Refone Auto Power Co., Ltd. >> for Audi Q5 Jh5 06h145702L 06h145702s 06h145702q Turbocharger

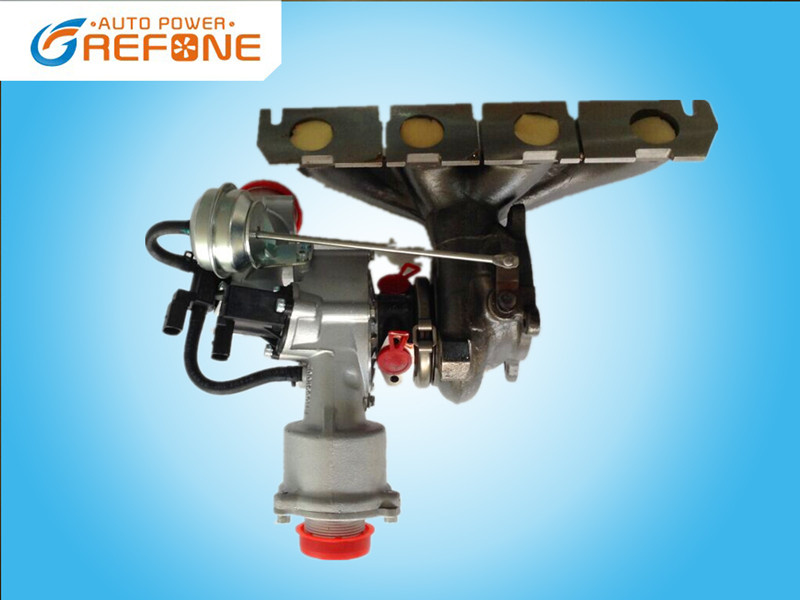

for Audi Q5 Jh5 06h145702L 06h145702s 06h145702q Turbocharger

for Audi Q5 Jh5 06h145702L 06h145702s 06h145702q Turbocharger
Price: US $ 370-380/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Δ Audi Q5 JH5turbocharger specs

Part Number
JH5

OE Number
06H145702L, 06H145702S, 06H145702G, 06H145702Q

Year
2008-11

V-SPEC
JH5

Description
A4, A5, Q5, Seat Exeo Audi 2.0L TFSI, (A4Q) Audi A4/S4/Avant quattro

Turbo Model
RHF5

Engine
CDNB, CDNC, CAEA, CAEB, CFKA

Engine Manufacturer
Volkswagen

Displacement
2.0L, 1984 ccm

Fuel
Diesel

KW
155/211 HP

Other Part Number
H10-79




Δ Applications

2003-06 BMW One D with DV6TED4 - 9HZ Engine
2003-06 Citroen C3, C4, C5, Picasso with DV6TED4 - 9HZ Engine
2003-06 Ford Focus, Cmax, Mondeo with DV6TED4 - 9HZ Engine
2003-06 Mazda 3 with DV6TED4, 9HZ Engine
2003-06 Peugeot 206, 207, 307, 407 with DV6TED4 - 9HZ Engine
2003-06 Volvo S40, V50 with DV6TED4 - 9HZ Engine



Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support



Δ More Turbochargers for AUDI

MOODELTURBO PART NO.OE NO.CAR MARKER
APPLICATION
 		ENGINEYEAR
GT1544S454064-0001/5001S028145701LAUDI/VWT4 Bus1.9TD1995-
GT1544S454097-0001/0002/5002S028145702/028145702X/028145702VAUDI/VWA4 TDI - 4 cyl. - 1.9L IDI D1.9L1995-
GT1544S454159-0002/0001/5002S038145701A/038145701AX/038145701AV/
038145701D		AUDI/VWAUDI A3,VW GOLF IV TDI,
skoda OCTAVIA TDI		1.9TDI1998
GT1544S701729-0001/3/6/9
701729-5010S/5009S
706680-0001		045145701/045145701V400/045145701V405/
045145701V500/045145701J/045145701JX/
045145701JV/045145701C/045145701CX/
045145701CV 		AUDI/VWPolo TDI 1.4 2000
GT1544V454161-0001/0003/5003S028145702D/454161-5003S/028145702D/
028145702DX/028145702DV		AUDI/VWPassat1.9TDI 110
GT1549S454183-0001/2/3/4/5004S028145702EAUDI/VW/FORDFord Galaxy,
Seat Alhambra TDI ,
Volkswagen Sharan TDI		TDI 110, AFN1996-2003
GT1549V454231-0001/3/4/5028145702HAUDI/VWA3 TDI Euro 3TDI 110 PD,1.9L D1999
GT1549V454232-0009/1/3/4/5038253019AAUDI/VWA3 TDI/New Golf TDITDI 110 PD
GT1749V720855-0001/3/4/5/
5005S/5006S/9006S
716216-0001/712078-0001		038253016F/038253016FX/
038253016FV/038253019F/
038253016FV510/038253016FV115/
038253016FV500/03G253016Q		AUDI/VWA3 1.9 TDI,Seat Leon 1.9 TDI,
Volkswagen Bora 1.9 TDI,
Volkswagen Golf IV 1.9 TDI		ASZ,PD UI,ASZ2000-2006
GT1749V454158-0001/2/3/5001S028145702C/028145702CX/
028145702CV 		AUDI/VWAudi A4 / A6 TDI (B5),
Volkswagen Passat		AFN TDI 1101997-1998
GT1749V454231-0002/6/8/9028145702NV500AUDI/VWAUDIA6 TDI - 4 cyl. - 1.9L - TDI 110 - DI D
GT1749V701854-0002/3/4/5004S028145702NV225/ 028145702V500/
028145702NV500/
028145702N/ 028145702NX/ 028145702NV		AUDI/VWA6 TDI - 4 cyl. - 1.9L - TDI 110 - DI D
GT1749V713672-0002/4/1/3/5/5005S/5006S038253019C/ 038253019CV500/
03G253016N/ 038253019CV225		AUDI/VWA3 TDI1.9L2000
GT1749V713673-0002/3/4/5/6/5005S/5006S/90061121159/ 038253019N/ 038253019NV500/
038253019NV225/ 038253019NV220/ 03G253014E/
 YM219G438BA/ 03G253014E/ 1135819/ 1556571/
038253019D/ 038253019DX/ 038253019DV/
038253019N/ 038253019NX/ 038253019NV/1556571		AUDI/VWA3 TDI - 4 cyl. - 1.9L. 115HP. DI DPD UI
GT1749V729325-0002/3/5002S/5003S070145701KV301/ 070145701KV302/ 070145701K/
070145701KX/ 070145701KV		AUDI/VWT5 BUS
GT1749VA717858-0007/9/2/3/4/5/6/8/5007S/5008S/5009S/
712077-0001/716215-0001		038145702E, 038145702EV110,
038145702G, 038145702GV105,
038145702GV500, 038145702GV505,
038145702GV550, 038145702,
038145702N, 038145702J		AUDI/VWA4 TDIPD UI 130HP
GT1749VA724930-0006/2/4/9/5006S/5008S/5009S03G253019A - 03G253019AV550
 03G253014H - 03G253010J		AUDI/VWA3 TDI - 4 cyl. - 2.0L DI D 2003-2006
GT1749VB721021-0001/2/3/4/5/6/5006S038253016GV510 - 038253016GV500,
038253016G, 038253016GX
038253016GV, 03G253016R		AUDI/VWA3 TDI - 4 cyl. - 1.9L DI DPD UI1998-2005
GT2052V454135-0005/3/8/5010S/9010S/9012S059145701F - 059145701K - 059145701E
 059145701D - 059145701S		AUDI/VWA4 ,2.5L ,150TDI V61997-2008
GT2052V454205-0006/1/5006S074145701DV248, 074145701D,
074145701DX, 074145701DV		AUDI/VWLT II vanTDI1999-2003
GT2556V721204-0001/5001s062145701AAUDI/VWLT2 Van2.8L D2002
GTA2052V720931-0002/1/3/4/5004S070145701HV244 - 070145701HV246
 070145701HV250 - 070145702AV100		AUDI/VWT4 BUS,2.5DLR5 KURZ2002-2004
BV3954399700022/21/5439-988-0022/
54399880022/54399880011		038253014G, 038253010D, 038253056EAUDI/VWA3 TDIBKC2002-2012
BV435303-970-0140/53039880190/5
303-988-0190/53039880190/53039880133/
53039880140/5303-988-0133/
5303-988-0140/53039880140		03L145702M, 03L145702D, 03L145702H,
03L145701D,03L14570103L145702A		AUDI/VWAudi A4 A5 Q6 Seat Exeo2.0 TDI-CR PL48, CAGA CAGB CAGC2007-2013
K0353039880006/5303-988-0006/
5303-970-0006/53039700006		95VW6K682AB, 1121159, 1002829,
 028145701J, 028145701JX, 028145701JV,
 028145701Q, 028145701QX,
028145701QV, 028145701R		AUDI/VWSeat, Audi, Ford, VW1.9 Umwelt-Diesel1993-2010
K0353039880005/5303-988-0005/
5303 988 0005/ 53039880013/
53039700005/5303-970-0005/53039700013		058145703LX, 058145703LV, 058145703E,
058145703C, 058145703H,
058145703L, 058145703D		AUDI/VWAudi Volkswagen1,8-5V langs/along, AEB, AJL1996-2012
K0353039880011/5303-988-0011/5303 988 001106A145704L, 06A145704LX, 06A145704LV,
06A145704, 06A145703G,
06A145703A, 6A145703B		VW/AUDIVolkswagen, Skoda, Audi1.8-5V quer/transversal,
AVC, APH, AGU, AGU AGU, ALN, ARZ		1996-2010
K0353039880015/5303-988-0015/5303 988 0015038145701A, 038145701AX,
038145701AV, 038145701D		VW/AUDIAudi A3, Skoda Octavia,
Volkswagen Bora,Volkswagen Golf IV		AGR1996-2010
K035303-970-0016/5303-988-0016, 5303 988 0016/53039700016/
53039880016/5303 970 0016		078145701S, 078145701R, 078145701H,
078145701L, 078145703D, 078145703H,
078145703L, 078145703R, 078145703S,
078145703C, 078145703B		AUDI/VWS4 AGB2.67LP2002-2006
K0353039880017/5303-988-0017/
5303 988 0017/53039700017/
5303-970-0017/ 5303 970 0017		078145704D, 078145704L, 078145704S,
 078145704R, 078145704H, 078145702H,
078145702L, 078145702R, 078145702S,
 078145704B, 078145704C		AUDIAudi A6 T (C5)AJK, ARE, BES, AGB1997-2001
K03 53039880025/53039700025058145703KAUDI/VWVolkswagen Passat Car,Audi A4 / A6 Car1,8-5V langs/along1999-2001
K03 53039880026/5303-988-0035/5303 988 0035/53039700035/
5303-970-0035/53039700026		06A145704A, 06A145703Q,
06A145713K, 06A145704B,
06A145704BX, 06A145704BV, 06A145703Q		AUDI/VWAudi A3, TT, Seat Leon, Volkswagen Golf IV1,8-5V langs/along1998-2008
K035303-970-0029058145703JAUDI/VWA4/A6 1.8T1.8 LP1999
K0353039880070/53039700070078145704Q, 078145704T, 078145702TAUDIAudi A6, allroad Biturbo right side Engine 2,7L, V6, 5V2002-
K0353039880106/5303970010606D145701D, 06D145701H,
06D145701G, 06D145701E, 06D145701J		AUDIA4 2.0 TFSI (B7)2.0 TFSI along2005-11
K0353039880052/53039880094/
53039700052/53039700094		06A145704T, 06A145713D,
06A145713DX, 06A145713DV, 06A145713F		AUDI/VW/SEAT/SKODAAudi A3/TT,Seat Leon,Skoda Octavia,
Volkswagen Golf/Bora/Jetta 		AUQ, ARZ, APP2000
K0353039880058/53039880053/
53039700058/53039700053		06A145704S, 06A145713L,
06A145713B, 06A145713M		AUDI/SKODA/VM/VWAudi A3,Skoda Octavia,Volkswagen Golf IV, Bora1.8L 5V langs/along, 1.8L-5V transverse 2000-05
K035303-970-0105/53039880105/ 5303 988 0105 06F145701D, 06F145701E,
06F145701G, 06F145701H		AUDI/VWAudi TT, Seat Leon Skoda Octavia,
Volkswagen Eos Jetta Passat		BWA-BPY, TFSI quer/transversal 2005-2008
K035303-970-0106/5303970010606D145701D, 06D145701H,
06D145701G, 06D145701E, 06D145701J		AUDIAudi A42.0 TFSI along 2005-2011
K045304-988-0028/53049880028/5304 988 0028 077145703P, 077145703PX, 077145703PVAUDIAudi RS 6 (C5) Left SideBCY Biturbo2002-2004
K045304-988-0029/53049880029/5304 988 0029 058145703J, 058145703N,
059145702B, 077145704K 		AUDIAudi RS 6 (C5) Right Side BCY Biturbo2002-2004
K0453049880001/53049500001/53049700001914F-6K682-AB/ACAUDIA3 / TT Upgrade2.5L,4EA/4EB/4HC1996-09
K0453049880022/5304970002206A145704PAUDIAudi TT, Audi S3AMK, AMK APX1999-12
K0453049880023/5304970002306A145704Q, 06A145704QX, 06A145704QVAUDIAudi TT, Audi S3BAM, BAM BFV2000-09
K0453049880025/53049700025078145701M, 078145703M,
 078145703MX, 078145703MV		AUDIRS4 V6 Bi-turbo, Audi A4 Left SideASJ/AZR2000-05
K0453049880026/53049700026078145704M, 078145702M,
078145704M, 078145704MX, 078145704MV		AUDIRS4 V6 Bi-turbo Right SideASJ/AZR2000-05
KP3954399880018/54399880007/
54399700018/54399700007		038253016N/038253010H/ 038253014DAUDI/VWA3 TDI 1.9DL,Golf IV/BoraAXR (D4)2001-2003
KP39A54399880001/54399880006/
54399880017/54399700006/
 54399700017/54399710017		038253016L, 038253014A,038253010G,
038253056A,038253010A, 038253010S		AUDI/VWA3 TDI,Golf IVARD (E3) - ATD2000-2010
KP39A54399880009/54399880020/
54399700020/54399700009		038253019J, 038253014H, 038253010N,
038253010C, 038253019JX, 038253019JV		AUDI/VWTransporter TDI (T5)AXB, AXC02-07
KP39A54399700011/54399880011/54399700022/
54399880022/54399710022		038253014G, 038253010D, 038253056EAUDI/VWA3 TDI,Touran ,Golf V ,Caddy BJB, BKC, AVQ2002-12
K04-00153049500001/53049880001/5304-988-0001/
5304-950-0001/ 5304 950 0001 		 AUDIA3/TT Upgraded 1.8L-5V transverse, 1.8L -5V quer/transversal1996-2009
K0453049880020/53049700020/
5304-988-0020/5304-970-0020		06A145704M, 06A145704MX,
06A145704MV, 06A145702		AUDITT,S3APY, AMK,APX1998-
K0353039880008 /53039700008/
5303-988-0008/5303-970-0008		028145701RAUDIA4

Prod Model: RHF5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turbine Shaft Wheel: K18
Materialbearing Housing: Oil Cooled
Bearing Housing: Water Cooled
V-Spec: Jh5
Engine: Cdnb, Cdnc, Caea, Caeb, Cfka
Displacement: 2.0L, 1984 CCM
Kw: 155/211 HP
Fuel: Diesel
Gross Weight: 11kg
Type: ETS Exhaust-Gas-Turbo-Super-Charger
Body Material: Iron
Certification: CCC
Brand: Refone
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.

Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.

The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.

Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
