Flexible Top Quality 5/32" Oil Resistant Hose with SGS

Price:	US $ 1.79-3.49/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	5/32"
Product Name:	Oil Resistant Hose
W.P:	20 Bar
B.P:	80 Bar
Temperature Range:	-40 to 125 Degree
Color:	Black
Material:	NBR Rubber
Delivery Time:	15 Day After Payment
Size Range:	1/8"~1"
Features:	Safe and Reliable
Standard:	SAE J30r7
Fuel:	Gasoline
Body Material:	Alloy
Component:	Fuel Injection Device
Certification:	RoHS
Stroke:	6 Stroke
Cylinder:	Multi-cylinder

Product Description

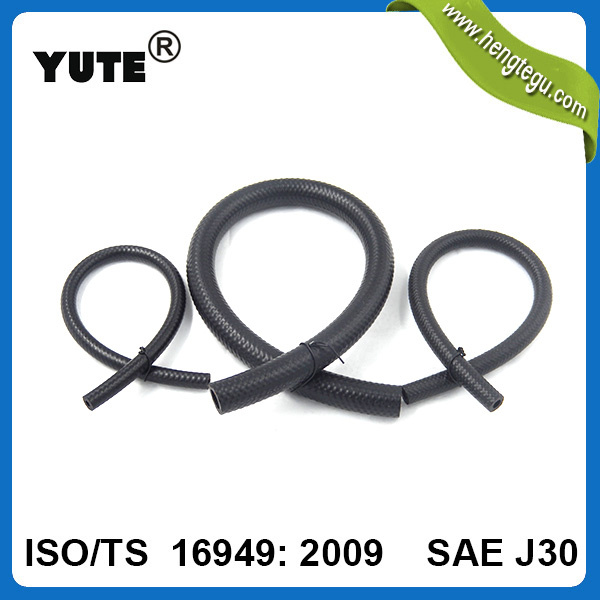

Flexible Top Quality 5/32" Oil Resistant Hose with SGS
Applications:Apply to transporting gasoline,diesel,engine oil and lubricating oil etc.It is widely used in agriculture machinery and engineering machinery .
Construction:
Tube:oil-resistant, low permeation of special rubber formula.
Reinforcement:High tensile braided fiber;
Cover:weather-,aging-resistant with high performance synthetic rubber.
Working temperature:-40~+125ºC, -40 ºF~ +275 ºF
Hose size and technical parameters:

NO	I.D			O.D			W.P		B.P
NO	inch	mm	Tolerance(mm)	inch	mm	Tolerance(mm)	Bar	PSI	Bar	PSI
1	1/8	3.2	±0.3	23/64	9	±0.3	20	300	80	1200
2	5/32	4	±0.3	25/64	10	±0.3	20	300	80	1200
3	3/16	4.8	±0.3	7/16	11	±0.3	20	300	80	1200
4	1/4	6.3	±0.3	1/2	12.7	±0.4	20	300	80	1200
5	5/16	7.9	±0.4	35/64	14	±0.5	20	300	80	1200
6	3/8	9.5	±0.4	5/8	16	±0.5	20	300	80	1200
7	15/32	12	±0.4	3/4	19	±0.5	20	300	80	1200
8	1/2	12.7	±0.5	25/32	20	±0.6	20	300	80	1200
9	5/8	16	±0.5	61/64	24	±0.6	10	150	40	600
10	3/4	19	±0.6	1-9/64	28.8	±0.8	10	150	40	600
11	1	25.4	±0.8	1-3/8	35	±1	10	150	40	600

Packing:
1.Every 50 or 100 /roll/Carton/Pallet.
2.According to customer requirements.
Logistics:
Shipping and Air transport

Certificate:
     ISO/TS 16949:2009.
     SGS
     CCC
     DOT approved.
     AMECA.
     RoHS.
Trade Shows:
      Automechanika Shanghai
     AAPEX Show
       Automechanika Frankfurt
        Kentucky Exposition Center

Our Services

1.   OEM Manufacturing
2. Accept sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and  give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

More information visit :
www.hengtegu.com
http://hengtegu.en.alibaba.com
http://auto-rubber-hose.com

Contact Us:
        Tel: +86-0574-62056986
      +86-0574-62056985

Yuyao hengtegu auto parts factory is a professional hose designer and manufacturer. It's located in Ningbo, Zhejiang Province. The transportation is convenient, 40 minutes away from the Hangzhou International Airport and one and a half hours away from Ningbo shipping port. As a manufacturing enterprise, we are engaged in the research and development of rubber hose's design, manufacturer and sales. We have been trying our best to invest in our people, technology and resources to make it easier for you to do business with us.

Now the factory owns sets of advanced cold rubber compound feed production lines and completed testing equipments. Our factory have passed the ISO/TS16949 quality management system certification, the products' quality meets SAE & DIN standard.

Main products: Fuel hose, air brake hose, hydraulic brake hose, power steering hose, rubber air hose, rubber air hose assembly and refrigerant charging hose, are widely used in the auto, engineering machinery, HAVC and other industries. Best quality and competitive price, we will try our best to provide you with good service. You are recognized for every dollar you spend with us.

Our business philosophy: Unitive and harmonious, hardworking and enterprising, regard technology as the core, offer cost-effective products to serve customers.
