| Prod Model: |
JF-702 |
| Function: |
Painting, Baking for Cars, Parts, Furniture |
| Air Speed Under Zero-Load: |
+/- 0.4m |
| Lights: |
Germany Osram Lamps |
| Standard Voltage: |
380V 50Hz 3pH for Motors, 220V 50Hz 3pH for Lights |
| Filters: |
Pre-Filters, Ceiling Floor Exhaust Filter |
| Design: |
Semi Downdraft Booth |
| Fan Form: |
Direct Turbo Fan |
| Packaging Required: |
One 20FT Container |
| Burner Model: |
Italy Riello |
| Warranty Time: |
2 Years |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Jf |
Product Description
Shenzhen Jiufeng Electromechanical Equipment Co., Ltd.
is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality.
JF brand spray booth is getting more and more popular all over the world .

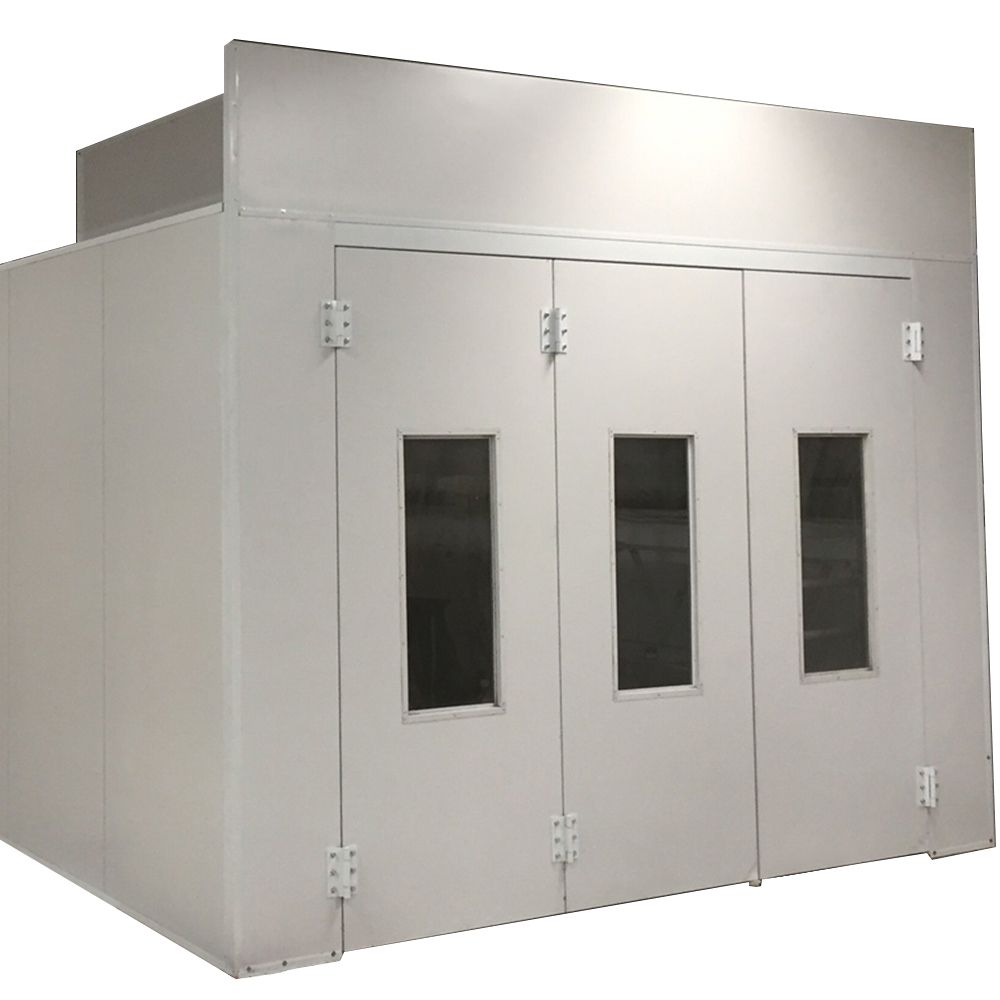

Professional semi down draft paint spray booth with CE approved
Specification of Model JF-702
| Design standards | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| Cabin size | |
| Internal size | 6900×4000×2800mm (L×W×H) |
| External size | 9070×4110×3810mm(L×W×H) |
| Basement | |
| Basement design type | No, with rear air collection box extraction structure |
| Air extraction type | Rear semi down draft extraction type |
| Air collection description | Frame structure,size:2000*1200*660mm |
| Filtration area | 4.8m2 |
| Cabin | |
| Cabin structure | Wall panel vertical insert |
| Plenum chamber height | 600mm (half plenum chamber) |
| Wall panel | 50mm EPS panel |
| Roof panel | Galvanized steel plate bend forming |
| Material of wrap edge | 1.5mm galvanized steel plate bend forming |
| Entrance door | |
| Type of entrance door | Hand made entrance door,2+1 structure |
| Size of entrance door | 3200×2700 mm (W×H), |
| Door arrangement and QTY | 1 set |
| Description of door | With frame inside, fill with EPS |
| Service door | |
| Type of service door | Frame structure |
| Size of service door | 800×2000 mm (W×H) |
| Door arrangement and QTY | 1 set |
| Description of service door | With safe glass observation window |
| Side lighting | |
| QTY and power | 6 units, each 2×36W, total 432W |
| Lighting arrangement | On two sides |
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand lights |
| Ceiling lighting | |
| QTY and power | 8 units, each 4×36W, total 1152W |
| Lighting arrangement | On two sides |
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand lights |
| Total illumination | >1000Lux |
| Filtration system | |
| Pre filter | G2 Grade plate type filter |
| Ceiling filter | 5 Grade filter, model is SP-600G |
| Bottom paint-mist collection | Fiber glass paint-stop filter |
| Exhaust filter | Fiber glass paint-stop filter, with features of big air ventilation volume, small resistance, fire resistance and so on |
| Inlet system | |
| Inlet fan | Direct drive turbo fan |
| Inlet fan power and motor | 5.5KW,970 rpm, 380 V, 50 Hz,(domestic brand motor) |
| Inlet fan parameter | 500pa 18000m3/h |
| Exhaust system | |
| Exhaust fan | Direct drive turbo fan |
| Exhaust fan power and motor | 5.5KW,970 rpm, 380 V, 50 Hz,(domestic brand motor) |
| Exhaust fan parameter | 500pa 18000m3/h |
| Equipment air speed when empty loaded | +/- 0.4m/ when empty loaded |
| Noise | <78 dB |
| Heating system | |
| Heat exchanger materials | Stainless steel1Gr18Ni9Ti(SUS304) |
| Heat exchanger capacity | 158KW |
| △T temperature increase ability | 20°C(from -10°C to 10°C under painting status) |
| Max working temperature | 80°C |
| Heating time | 4-6 minutes (from 20° to 60°ºС) under baking status |
| Burner model | G20 diesel burner |
| Ducting configuration | |
| Straight duct | 4 sections |
| 90 degree | 1 section |
| 45 degree | 1 section |
| Reducer | 1 section |
| Control system | |
| Performance standard | Standard Y/Δstep-down start control system |
| Function | Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication |
Our services:
We are professional manufacturer for 12 years in China.
Warranty time:2 years. During the warranty time, any time, any problem caused by products' quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
Service time: Life long maintenance.
FAQ
Q1: What's the sort of heating types?
JF reply: There are diesel, gas and electricity(infrared lamp) heating.
Q2: Does the JF spray booth with the European design ?
JF reply: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q3: What are range of the voltage and power for JF spray booth when operating?
JF reply: the standard voltage and power for our products is 220V 50HZ 1PH for lights (Residential voltage), 380V 50HZ 3PH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q4: For the customer-design spray booth for other workpieces, does JF could provide?
JF reply: Absolutely yes, JF has the professional team with 12 years of design experience. JF may design according to customers requirements of spray booth for car, bus, big iron workpieces, wooden furniture etc.
