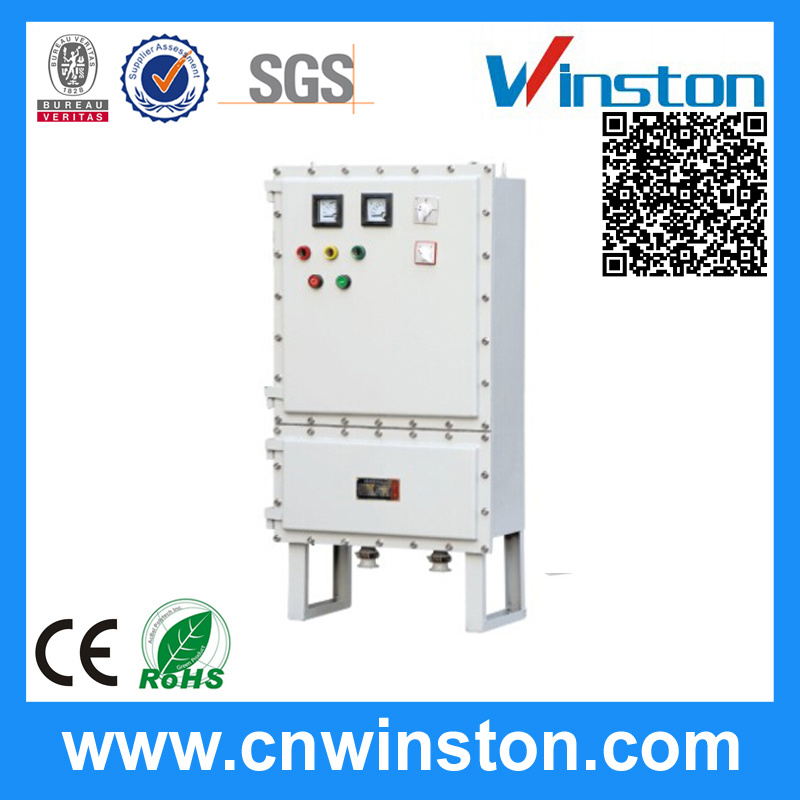

Explosion Proof Self-Couple Voltage-Reduced Electromagnetic Starter
| Price: |
US $ 872-7765/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
Applications
* Can be used in hazardous areas: zone1 and zone2.
* Can be used in explosive gas atmospheres of Category II A and II B where the temperature classification is T1~T4.
Features
1. The shell is welded of steel plates, with high voltage static plastic-sprayed surface.
2. Inside is arranged varitran, AC contactor, time relay, interposing relay, thermal relay, current transformet, selector, fuse, voltmeter, ammeter and indicator etc.
3. With protections of overload, short-circuit, voltage-absent, phase-failure.
4. Conduit wiring or cabpe wiring.
Technical parameters
Ex-mark | Exd IIBT4 |
| Rated voltage | AC380V/50Hz |
| Implementing the standard | GB3836.1-2010, GB3836.2-2010, IEC60079 |
| Usage | AC-3 , AC-4 |
| Protection grade | IP54 |
| Corrosion-proof grade | WF1 |
| Inlet ' s spec | G1 1/2"~G3" |
| Outlet ' s spec | G1 1/2"~G3" |
| Cable spec | Φ 17mm-55mm |
Model |
Max. power of controlled motor |
Rated current
(A) |
Varitran power |
CT ratio |
BQJ-14 |
14 |
28 |
14 |
50/5 |
BQJ-20 |
20 |
40 |
20 |
75/5 |
BQJ-22 |
22 |
44 |
22 |
BQJ-28- |
28 |
58 |
28 |
BQJ-30 |
30 |
60 |
30 |
BQJ-40 |
40 |
80 |
40 |
100/5 |
BQJ-45 |
45 |
90 |
45 |
150/5 |
BQJ-55 |
55 |
110 |
55 |
BQJ-75 |
75 |
142 |
75 |
200/5 |
BQJ-95 |
95 |
200 |
95 |
300/5 |
BQJ-115 |
115 |
230 |
115 |
BQJ-135 |
135 |
270 |
135 |
500/5 |
BQJ-160 |
160 |
320 |
160 |
Our Services
1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: Manufacture company, each of the products is tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty. |
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Prod Model: |
BQJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Ex-Mark: |
Exd II Bt4 |
| Rated Voltage: |
AC 380V/50Hz |
| Usage: |
AC-3, AC-4 |
| Protection Degree: |
IP54 |
| Anti-Corrosion: |
Wf1 |
