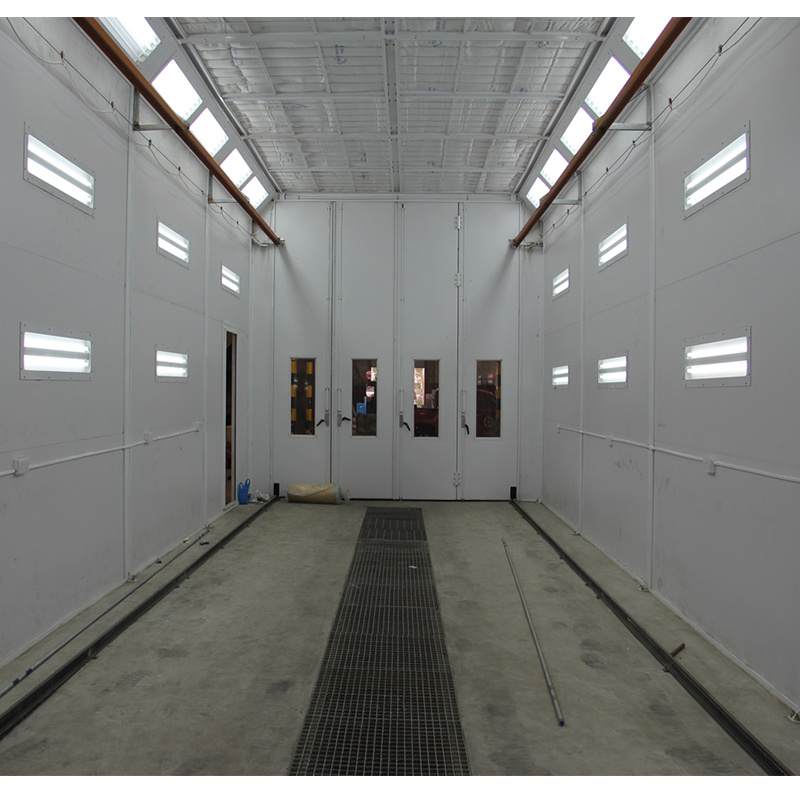

European Standard Industrial Painting Booth
1. CE approved
2. German Technology
3. Suitable for painting bus and truck
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Model: BTD-15-50-D| Model | BTD-15-50-D |
| Booth Dimensions | |
| - Internal Size(L×B×H) | 15000×5000×5000mm |
| - External Size(L×B×H) | 15150×6500×5900 mm |
| Foundation and Floor | |
-Loading Capacity
of Galvanized Grating | 3500KG/ wheel |
| - Surface Area | 12M²1 Galvanized
Grating gills |
| - Metal Basement | 1000mm Height should be need to dig foundation |
| - Drive-in Ramps | NO |
| Wall and Door | |
| - Steel Wall and Roof Panel | Double Construction
with Insulations EPS 60mm |
| - Thickness | Double Construction ,
with Insulations EPS 50mm |

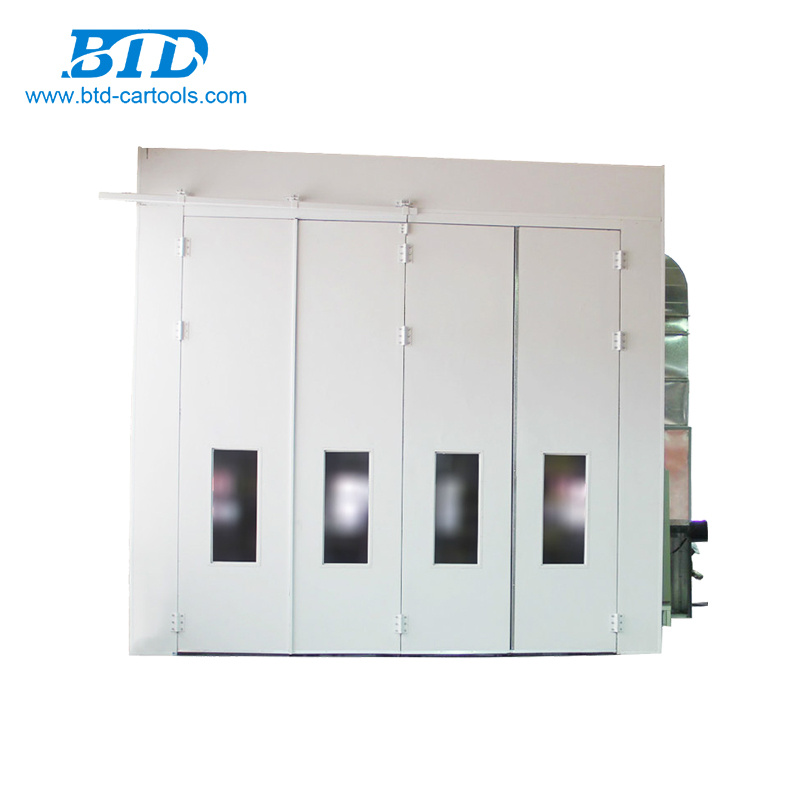

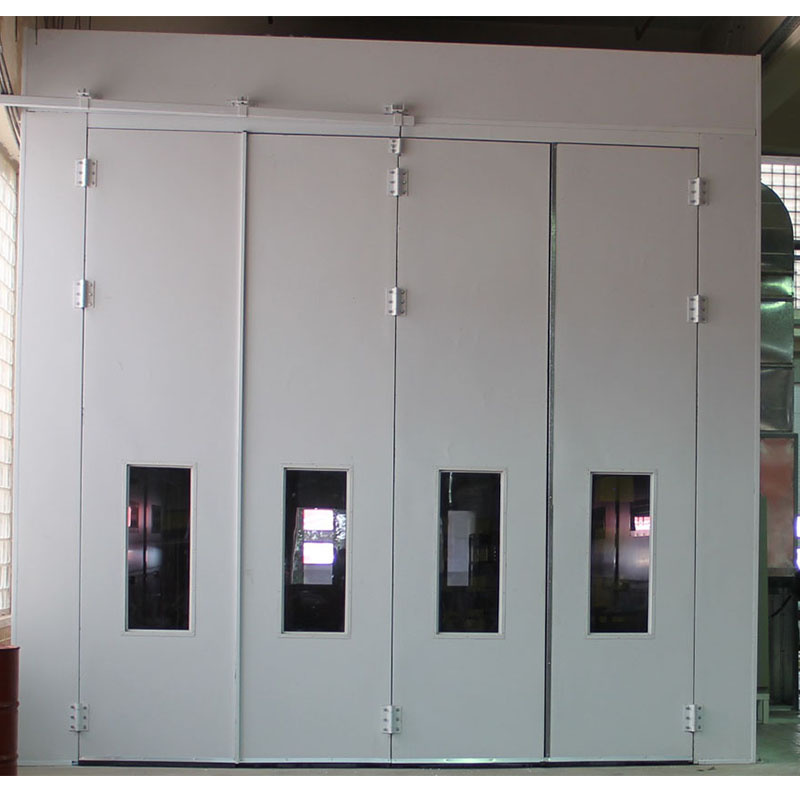

3-Folded Entrance
Door With
Safety Glass Window | 4300×4800 mm (B×H) |
- Operators Door
With Safety ,
Glass Window | 800×2000 mm (B×H) 2PCS |
| Lighting | |
| - Ceiling Lightings | 16 Units, each 4×36 W,
Total 2304W |
| - Side Lightings | 24 Units, each 2×36 W,
Total 1728W |
| - Brightness | >1000 Lux, IP54 Grade |
| Filtration | |
| - Pre filters | Fiberglass, Paint-Stop-Filters
Plate type duel filters |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Floor Filters | Fiberglass, Paint-Stop-Filters |
| Ventilation System | |
-Direct Drive
Motor (Fresh Air) | 2×7.5KW,970RPM,380V,50HZ motor
certification CE |
- Direct Drive
Motor (Exhaust Air) | 2×7.5KW,970RPM,380V,50HZ Domestic
motor certification CE |
| - Fan Capacity | 50.000m³/h |
| - Air Flow Speed | +/- 0.25 m/s in an empty booth |
| Heating System | |
| - Heating Exchanger | Stainless Steel 1Gr18Ni9Ti |
- Heating
Exchange Capacity | 2×232KW(260.000cal/H) RIELLO |
| - Max. Drying Temperature | 80 °C |
| - Heating time | 10-15 min (from 20 to 60°)
by Drying Phase |
- Heating Type
(on option) | Diesel / Gas Burner |
| Control Board | |
| -Control system | Stander control
Delta Depressurization
start system
EN60204-1-2006 |
| -Function | Spraying ,baking, warming
spray paint, emergency
stop switch |
| -PLC | yes |
| -Inverter control | On option |
| -Import element | master device import element |
| -Overpressure Manometer | yes |
| - Alarm equipment | yes |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
FQA:
Q1: Are you Manufacturer or Trading company? A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
