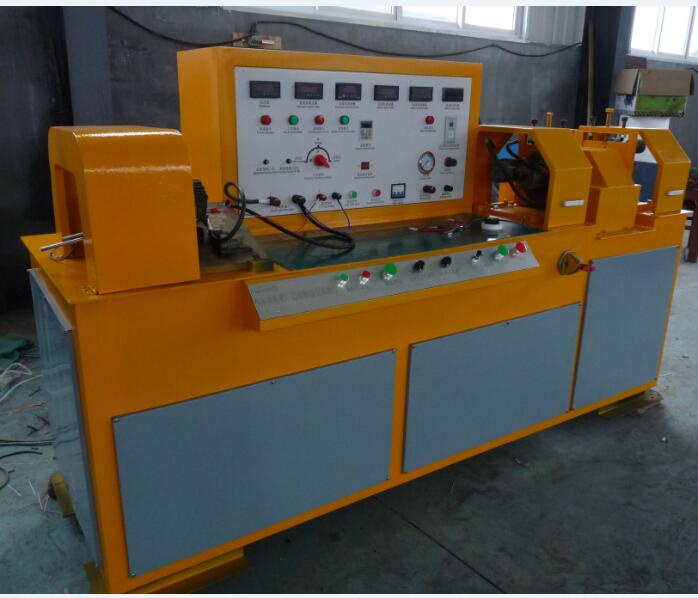

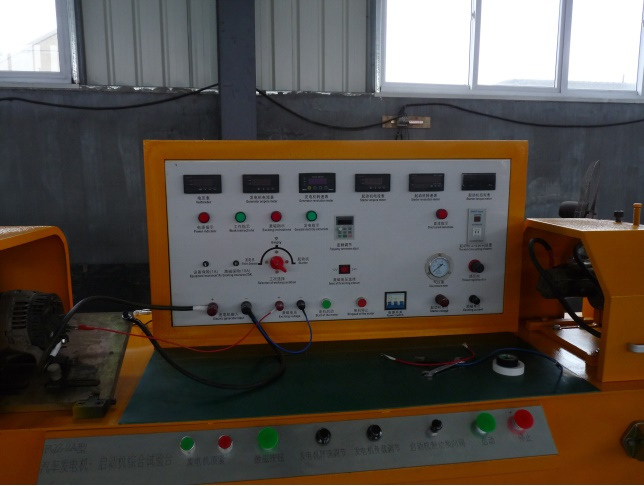

ETB-200 Automobile Electric Alternator Starter Testing Machine

Function Introduction
This test bench using variable frequency speed
regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.

Technical Parameter
Input working voltage 380V AC 50HZ DC12V,24V or 48V
· Motor power:7.5KW   Frequency converter power:7.5KW
· Speed adjustable range of generator: no load 0-8000r/min load 0-6000r/min
· Load mode : Electronic module type DA (0~200A)
· Working current of starter:0-2000A
· Torque of starter:0~200 N.M
· Air pressure setting :0~1MPa (random adjustment)

Applicable Scope
·  Generator and starter of various large load carrying vehicles, passenger car and bus;
·  Maximum test power of generator :5.5KW
Maximum test power of starter: 15KW

Prod Model:	ETB-200
Test Function:	Starter and Alternator
Testing:	Starter and Alternator
Output Power:	1.5kw
Voltage:	380V 220V 415V
Power Phase:	1-Phase
Equipment:	Electric Alternator Starter Testing Machine
Certification:	ISO
Update Method:	by Hard Disk
