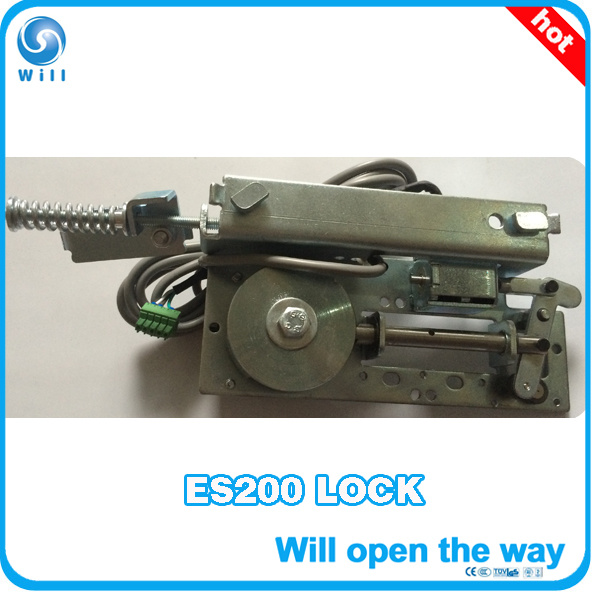

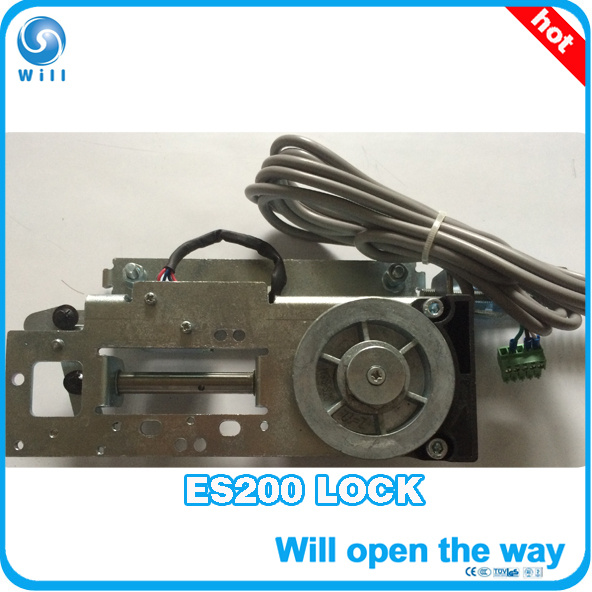

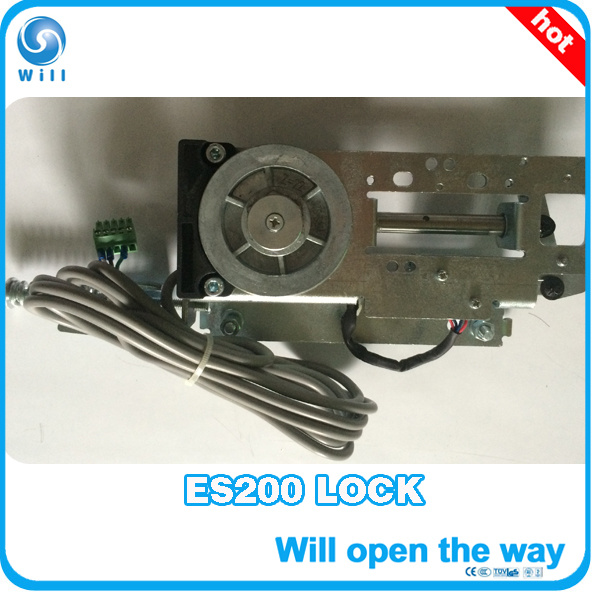

Es200 Lock

Es200 Lock
Price: US $ 20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P
Lock for swing and sliding door Magnetic lock for sliding door operator




Technical data RMS-M
General specifications
Function principle Micro wave module
Detection speed min. 0.1 m/s
Marking CE
Setting angle 0...40 ° In 5 ° Steps
Sensing range 1500x 3500 mm (TxB) at 2200 mm mounting height and 30° Tilt angle
Operating frequency 24.05...24.25 GHz K-Band
Operating mode Radar motion sensor
Indicators/operating means
Function display LED red/green (see section "functional display")
Operating elements Potentiometer and programming button for setting: Method of connection, dropout time,
Response time, Interference behavior
Operating elements sensitivity adjuster
Electrical specifications
Operating voltage 12...36 V DC, 12...28 V AC
No-load supply current I0 ≤ 50 mA at 24 V DC
Power consumption P0 ≤ 1 W
Output
Switching type active/passive
Signal output relay
Switching voltage 120 V AC / 60 V DC
Switching current max. 1 A
Standard conformity
Standards EN 60950: 2000; EN 60335-1: 1994; EN 301489-3 V1.4.1; EN 61000-6-1: 2001, EN 61000-
6-2: 2001; EN 61000-6-3: 2001; EN 61000-4: 2001; EN 300440-2 V1.1.1
Standards 2 CETECOM
Ambient conditions
Ambient temperature -20...60 ° C (253...333 K)
Relative humidity max. 90 % non-condensing
Mechanical specifications
Mounting height max. 4000 mm
Protection degree IP54
Connection terminal strip 4-pin
Material
Housing ABS, anthracite
Working IF24GHZ
Working envirmentOutside

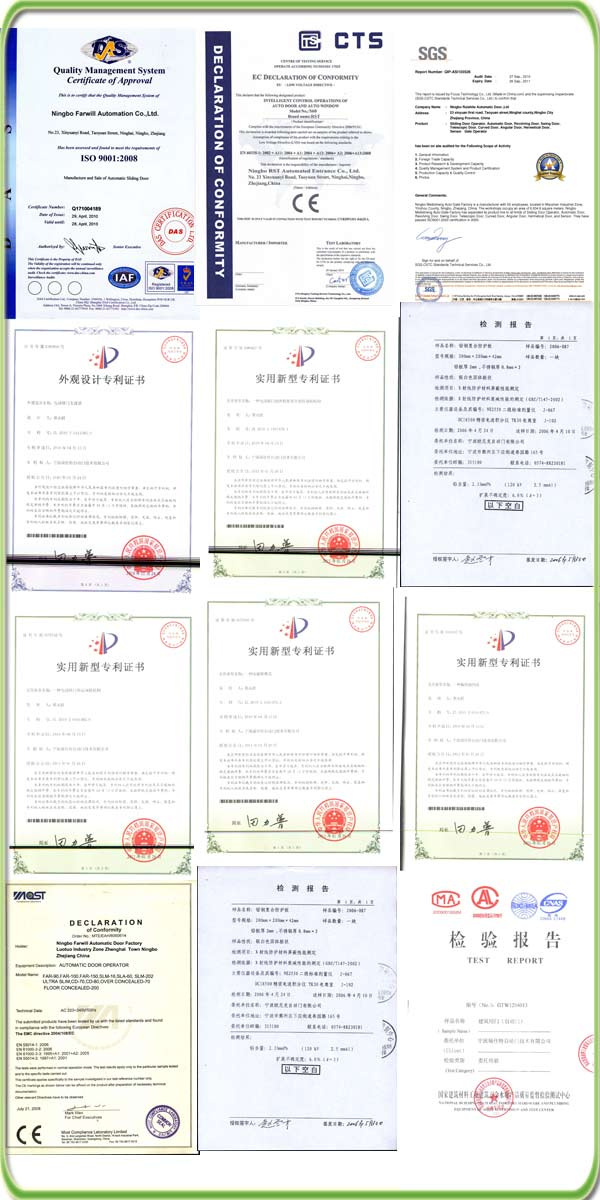

Certificates

Contact us


Prod Model: ES200 Lock
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP Protection Level: 54
Voltage: 12V -24V
Function: Lock
Brand: Will
Solution: Sliding or Swing Door Operators
Color: Silver
Output: Digital Sensor
Usage: Position Sensor
Theory: Magnetic Sensor
Certification: CE
Automatic: Automatic
Standard: Standard
Condition: New
Material: Mixture
Farwill automatic door factory established in July, 2006 which grows very fast. Farwill has attained ISO9001, ISO14001, SGS and CE certifications. During the past four years We have 2 production bases covering 1, 000

Square meters and more than 100 employees. Our automatic door annual production capacity is 3000 sets of automatic swing doorsAnd 300000 sets of automatic sliding doors, as well as revolving doors.

Farwill integrates Swiss automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.

Today Farwill products are widely used in 89 countries & regions around the world, and more customers are joining us. For some we provide blank products, and for some more we deliver the goods with Farwill as our common brand.

We will open the way!
