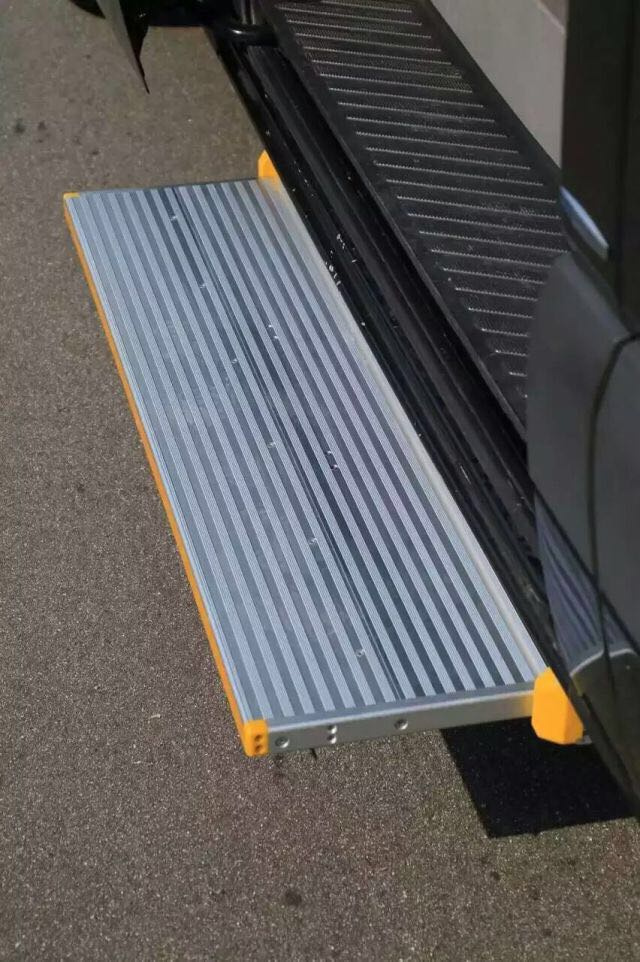

Es-S-1200 Electric Car Step with Ce 250kg Loading

1. INTRODUCTION
ES series electric step is a kind of equipment which can help passengers get into vehicles, such as cars, public bus, taxi, ambulance and so on. This step, with loading capacity of 250 kg, can work steadily, reliably and safely.
We have different steps with several specifications, which can meet different requirements.
This step has a frame with thickness of only 65mm, and it is also suitable for the low-floor vehicle. The operation can be electric or manual. Electric operation is done by remote control.
ES is a kind of electric steps.  It is designed to fit a vast range of accessible vehicles, cars, minibuses, taxis and ambulances.
Description:
Small frames, downy line, smooth platform and easy operation
Reduce the floor height to make entrance easy
Operated by the driver or attendant.
Rated voltage is 12V-24V
Waterproof connectors
If door is closed, this step will stow automatically
If there is an obstruction when extending, the step will stow automatically.
Can be operated fully automatically, that is to say, when door is open, this step will extend; when door is closed, this step will retract
There is sound and light for warning during working
There is interlock function, which can interlock with vehicle brake
Can be stowed for emergency
LED and LED cover are equiped as standard
Has been tested 100000 cycles
Test weight is 500kg
Accessory:
Fully auto operation: simply swap the switch to change to a fully automatic operation on door.
Sensitive edge: It will stow automatically if there is a obstruction. The operator should press the switch again to extend the step.
Buzzer: an equipment for auto alarm



 2. SPECIFICATION

Model	Drive Mode	Voltage	Platform Size (mm)	Installation
ES-S-450	Electric	12-24V	450*300	under vehicle floor
ES-S-600	Electric	12-24V	600*300	under vehicle floor
ES-S-750	Electric	12-24V	750*300	under vehicle floor
ES-S-1000	Electric	12-24V	1000*300	under vehicle floor
ES-S-1200	Electric	12-24V	1200*300	under vehicle floor

3. TECHNICAL PARAMETER

Model	Overall size when fully extend (A*B)	Platform net size (D*C)	Loading capacity	Test weight	Working woltage	Own weight
ES-S-450	525*717.5 mm	450*300 mm	250 kg	500 kg	12-24 V	17 kg
ES-S-600	675*717.5 mm	600*300 mm	250 kg	500 kg	12-24 V	20 kg
ES-S-750	825*717.5 mm	750*300 mm	250 kg	500 kg	12-24 V	23 kg
ES-S-1000	1075*717.5 mm	1000*300	250 kg	500 kg	12-24 V	27 kg
ES-S-1200	1275*717.5 mm	1200*300	250 kg	500 kg	12-24 V	31 kg



Model	Mini ground clearance (E)	Step net height (F)	Overall Height (G)	Overall length when stowed (H)	Platform outer length when stowed (I)
ES-S-450	70mm	32mm	75mm	477.5mm	62mm
ES-S-600	70mm	32mm	75mm	477.5mm	62mm
ES-S-750	70mm	32mm	75mm	477.5mm	62mm
ES-S-1000	70mm	32mm	75mm	477.5mm	62mm
ES-S-1200	70mm	32mm	75mm	477.5mm	62mm

4. Product Function
Technical Function
Voltage: 12V-24V
Max current during extending or stowing under normal situation: 8-10 A
Extending time: 1-2 s
Stowing time: 1-2 s
Test weight: 500 kg/1100 lbs
Safety loading capacity: 250 kgs/550 lbs
Safety Function
The platform surface is the aluminum board with the function of anti-skid
There are sound signal for warning during step working
If the platform touches an obstruction when extending out, it will return back. Then the operator should press the switch again to extend the platform. That function is still available.
This step and the vehicle door are interlocked.
If the motor doesn't work, this step can be operated manually to stow the platform under
5. INSTALLATION
The mounting points on the side of step frame are flexible.
This step can be installed at different place such as door, chassis, or other place of vehicle.
It is suitable for many kinds of vehicle
Every step has its own series number which is easy to track
6. APPLICATION
Vehicle with sliding door, hinge door, electric door or plug door
Cars, mini public bus or taxi
Disabled cars
Ambulance
Minivans and Camping car
7. WARRANTY
12 months warranty support.
