Hubei Fotma Machinery Co., Ltd. >> EPS200 Common Rail Injector Test Bench

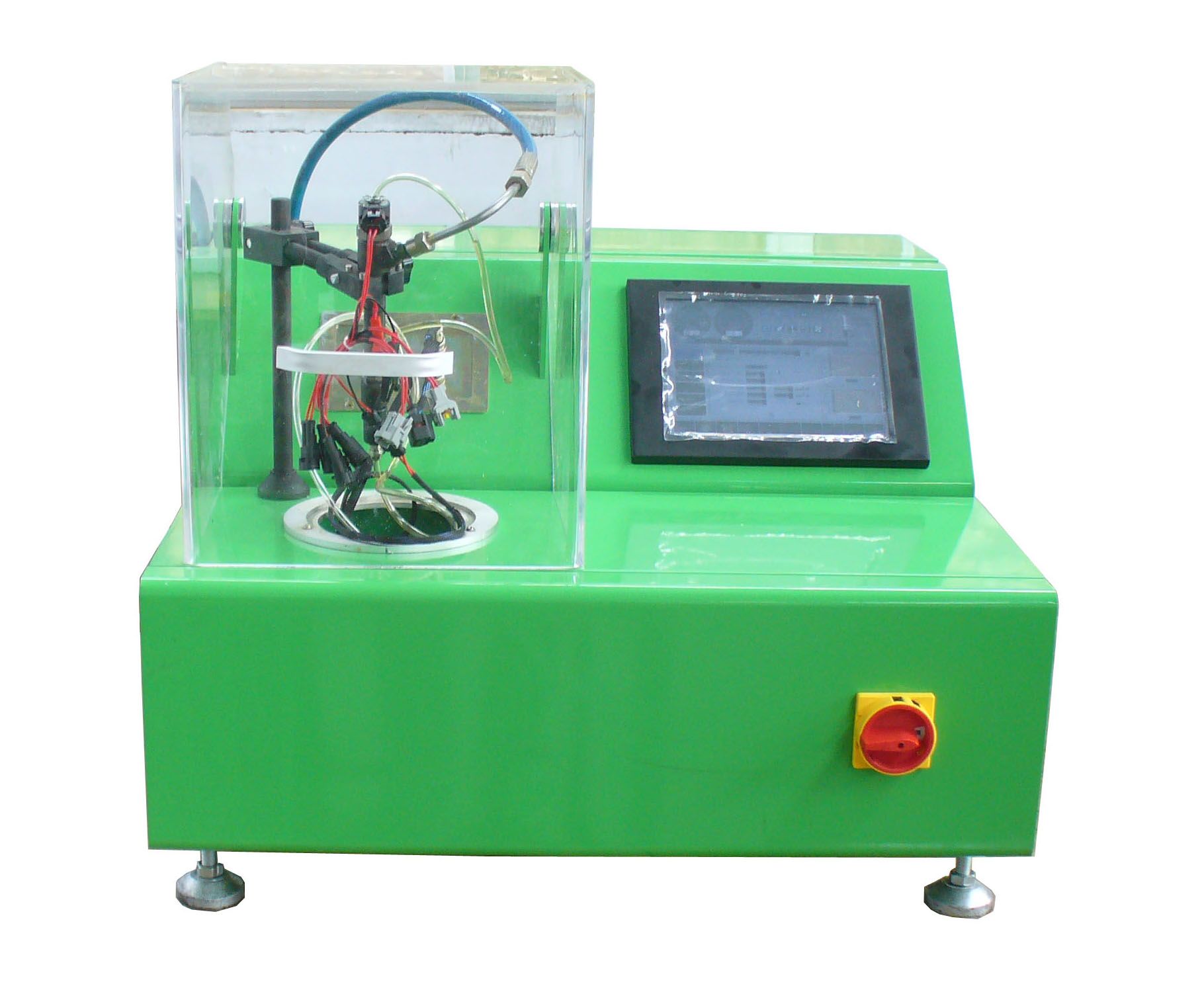

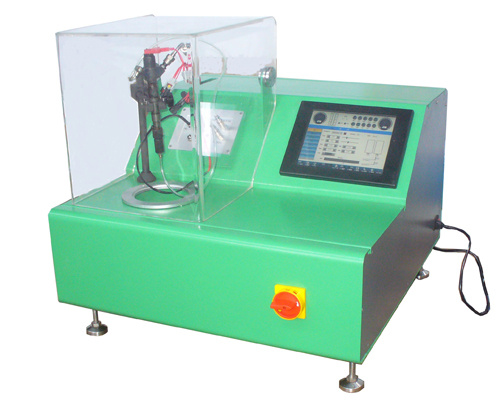

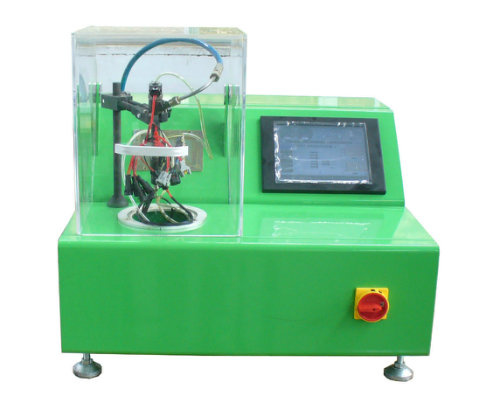

EPS200 Common Rail Injector Test Bench

EPS200 Common Rail Injector Test Bench
Price: US $ 3400-3600/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
EPS200 Common rail injector tester bench

EPS200 test bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH original common rail pump to provide 0~2000 bar for rail pressure. The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement and

 >>>CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4 tactile  LCD screen;
3. More than 700 kinds of injecotors data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9.  Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11.Frequency converter inside to keep the RPM.
 >>>FUNCTION
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
   Piezo injector testing(option function)
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring,  automatic testing and detection.
6. Data can be searched and saved.
>>>TECHNICAL PARAMETER
1. output power:1.5KW
2. power voltage:220V 1phase
3. motor speed: 0-3000RPM
4. Oil pressure:0-2000bar
5. flow measure range: 0-600ml/1000times
6. flow measurement accuracy: 0.1ml
7. temperature control range: 40+-2

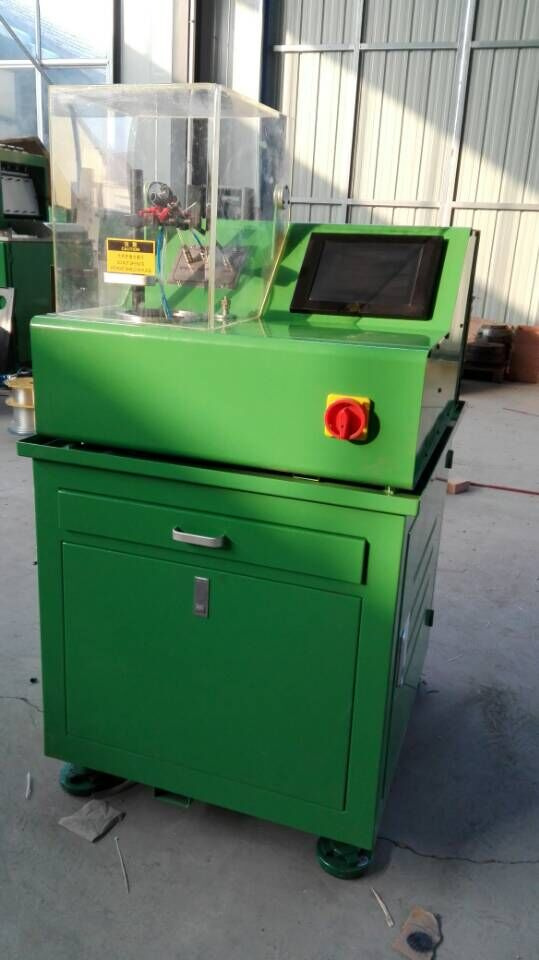

EPS200/NTS200 Common Rail Injector Test Bench with Stand Support
Prod Model: EPS200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test Equipment: Common Rail Injector Tester Bench
Brand: Fotma 12psdw
Function: Testing Common Rail Injector, Bosch, Denso, Delphi
Color: Blue, Yellow, Green
Warranty: 1 Year
Test Data: More Than 1000PCS Test Data
Certification: ISO
Update Method: by Email
Our company was established in 1978 as one of the oldest Chinese agricultural and construction equipment supplier in the overseas market and ISO9001 approved. Annual turn over is over 100 million US Dollars per year.

We supply 18HP-280HP tractor and tractor implements; construction equipment including LIUGONG wheel loader, XCMG wheel loader, truck crane, motor grader, skid steer loader, HC forklift, SD bulldozer, backhoe loader, reach stacker, etc. and its spare parts.

All products are not only well sold in China, but also to Southeast Asia, Middle East, Australia, Africa, Europe and America. In order to meet the requirement of international market, FOTMA will strive to upgrade our products and keep on innovation so as to provide perfect products and best service to the customers both from domestic and abroad.
