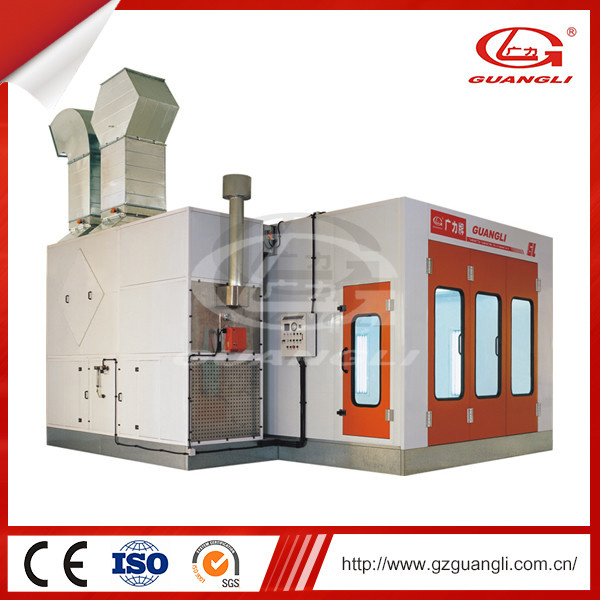

Energy Saving Preheating Air System Spray Booth (GL4000-A2)

Name: Energy Saving Preheating Air System Spray Booth (GL4000-A2)
Brand: ibuyautoparts.com
SKU: 791427285
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

--Wall panel: Sandwich style, g=50mm, polystyrene, rock wool available as required.

--Basement: Steel structure, full grids, ramp: 2 PCS of grids.

--Door: 3 PCS of front door without aluminum side cover. 1PC of emergency door with pressure lock.

--One 11kw intake fan and one 11kw exhaust fan.

--4m straight exhaust ducts, one 90 degree bend, and one 60 degree bend. 4m straight chimney and 2 small bends.

--Electrical VCD. One pressure meter.

--Spraying/baking transition damper, automatically air controlled.

--Fire protection equipment: 1set, the inductor control closed; Energy-saving equipment: 1set.

--Heat exchanger: Stainless steel. Riello/ rg5s burner.

--Roof filter: 6 PCS of filter, mounted above support frame, which is made of steel and powder coated.

--5 PCS of floor filter and 2 PCS of outlet filter.

--Upper light: 10 sets, 4*40w per set. Side lights: 8sets, 4*40w.

--Control box: Imported components, overload, overheat, phase-lacking, phase-locking protection, engine y/ start...

--Automatically stop when preset time is up.

--Constant temperature spraying.
Equipment

Exhibition

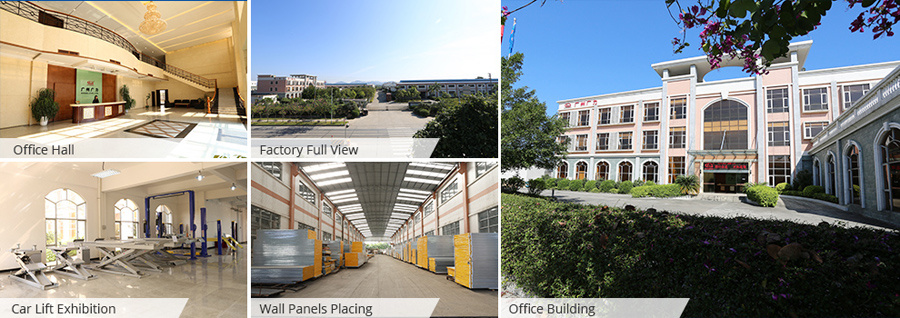

Factory Show

Model	GL4000-A2
External size (m)	7.0x5.6x3.5
Internal size (m)	6.9x3.9x2.7
Entrance Width(M)	3.0
Entrance Height(M)	2.7
Fan capacity(m 3 /h)	25000
Air velocity (m/s)	0.3-0.5
Air ventilation (times/h)	332
Max Drying Temperature	60-80
Oil consumption (L/unit)	6-8
Power (kw)	25
Suitable Automobile Type	Car

Prod Model:	GL4000-A2
Certification:	GS
Airflow Direction:	Cross-flow Type
Heating Mode:	Electric
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Guangli

Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D

Team and material sources, our products are excellent in performance and craftsmanship.

We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.

Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
