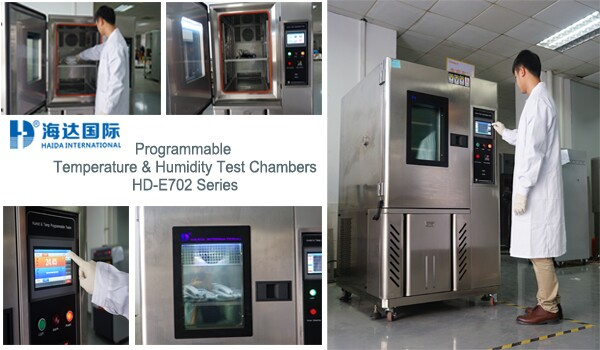

Electronic Environmental Protection Programmable Temperature Humidity Testing Machine
Programmable Temperature Humidity Testing Machine is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment,
vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
System | Balanced Temperature & Humidity Control System |
Temp. range (optional) | -70º C _ 150º C |
Humid. range | 20 ~ 98 %R. H. |
Temp. & Humid. accuracy | ± 0.5º C; ± 2%R. H |
Temp. & Humid. regularity | ± 2º C; ± 5% RH |
Resolution | 0.1º C, 1%, P. I. D control |
Heating up | 20º C~ +150º Cwithin 45 min |
Heating down | 20º C~ -20º Cwithin 40min |
Interior dimension(W× D× H) | 40× 50× 40cm |
Exterior dimension(W× D× H) | 92× 160× 87cm |
Interior material | Stainless steel plate(SUS304) |
Exterior material | Stainless steel plate(SUS304) |
Insulation | Rigid foam |
Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
Display | LCD |
Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector. |

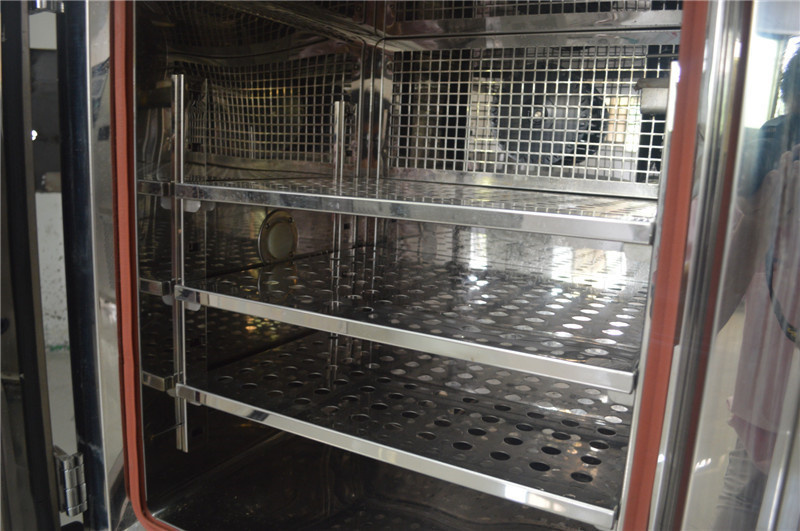

Accessories | Viewing window, Shelves (freely adjustable 2 pcs. ), Cable port(Ø 50mm)Chamber lamp. |
Weight | Approx. 150 kg |
Power | 1#, AC220V± 10% 50/60Hz |
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Able to display the relative date and information of the whole operating system in running mode, graphic display. Precautions, maintenance and troubleshooting appear on the screen instantly.
4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
