Electric Sliding Step Fcan Load 250kg for Van and Minibus

Electric Sliding Step Fcan Load 250kg for Van and Minibus
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: es-s-450
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Load Capacity: 250kg
Material: Aluminum
Type: Auto Parts
Muffler Type: Auto Parts
Deck: Auto Parts

Product Description


1. INTRODUCTION

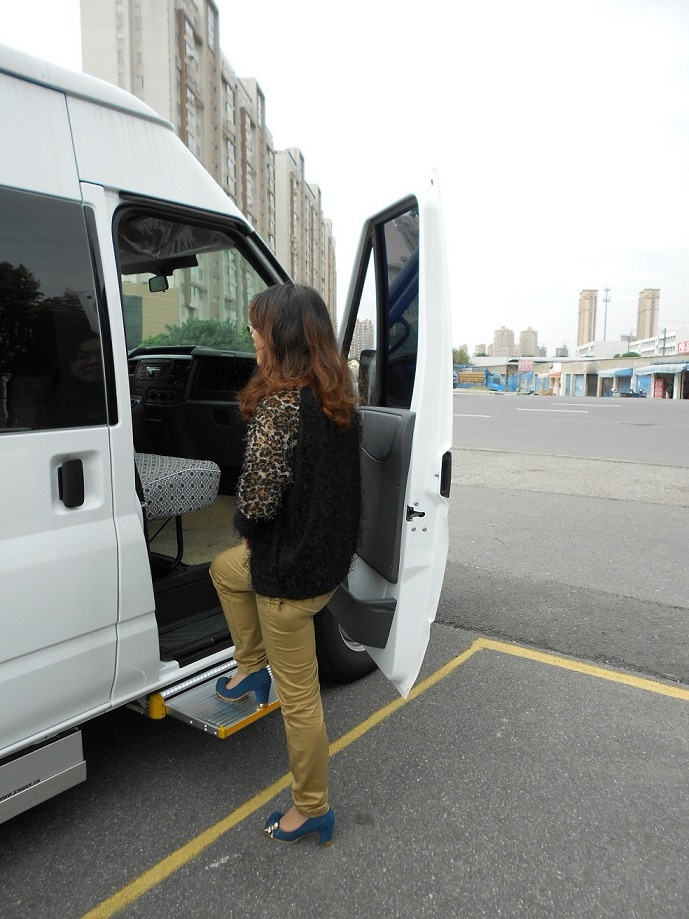

ES series electric step is a kind of equipment which can help passengers get into vehicles, such as cars, public bus, taxi, ambulance and so on. This step, with loading capacity of 250 kg, can work steadily, reliably and safely.
We have different steps with several specifications, which can meet different requirements.
This step has a frame with thickness of only 65mm, and it is also suitable for the low-floor vehicle. The operation can be electric or manual. Electric operation is done by remote control.
ES is a kind of electric steps.  It is designed to fit a vast range of accessible vehicles, cars, minibuses, taxis and ambulances.
Description:
Small frames, downy line, smooth platform and easy operation
Reduce the floor height to make entrance easy
Operated by the driver or attendant.
Rated voltage is 12V-24V
Waterproof connectors
If door is closed, this step will stow automatically
If there is an obstruction when extending, the step will stow automatically.
Can be operated fully automatically, that is to say, when door is open, this step will extend; when door is closed, this step will retract
There is sound and light for warning during working
There is interlock function, which can interlock with vehicle brake
Can be stowed for emergency
LED and LED cover are equiped as standard
Has been tested 100000 cycles
Test weight is 500kg
Accessory:
Fully auto operation: simply swap the switch to change to a fully automatic operation on door.
Sensitive edge: It will stow automatically if there is a obstruction. The operator should press the switch again to extend the step.
Buzzer: an equipment for auto alarm
2. SPECIFICATION



ModelDrive ModeVoltagePlatform Size (mm)Installation
ES-S-450Electric12-24V450*300under vehicle floor
ES-S-600Electric12-24V600*300under vehicle floor
ES-S-750Electric12-24V750*300under vehicle floor
ES-S-1000Electric12-24V1000*300under vehicle floor
ES-S-1200Electric12-24V1200*300under vehicle floor


3. TECHNICAL PARAMETER

Model

Overall size when fully extend (A*B)

Platform net size (D*C)

Loading capacity

Test weight

Working woltage

Own weight

ES-S-450

525*717.5 mm

450*300 mm

250 kg

500 kg

12-24 V

17 kg

ES-S-600

675*717.5 mm

600*300 mm

250 kg

500 kg

12-24 V

20 kg

ES-S-750

825*717.5 mm

750*300 mm

250 kg

500 kg

12-24 V

23 kg

ES-S-1000

1075*717.5 mm

1000*300

250 kg

500 kg

12-24 V

27 kg

ES-S-1200

1275*717.5 mm

1200*300

250 kg

500 kg

12-24 V

31 kg


Model

Mini ground clearance (E)

Step net height (F)

Overall Height (G)

Overall length when stowed (H)

Platform outer length when stowed (I)

ES-S-450

70mm

32mm

75mm

477.5mm

62mm

ES-S-600

70mm

32mm

75mm

477.5mm

62mm

ES-S-750

70mm

32mm

75mm

477.5mm

62mm

ES-S-1000

70mm

32mm

75mm

477.5mm

62mm

ES-S-1200

70mm

32mm

75mm

477.5mm

62mm


4. Product Function
Technical Function
Voltage: 12V-24V
Max current during extending or stowing under normal situation: 8-10 A
Extending time: 1-2 s
Stowing time: 1-2 s
Test weight: 500 kg/1100 lbs
Safety loading capacity: 250 kgs/550 lbs
Safety Function
The platform surface is the aluminum board with the function of anti-skid
There are sound signal for warning during step working
If the platform touches an obstruction when extending out, it will return back. Then the operator should press the switch again to extend the platform. That function is still available.
This step and the vehicle door are interlocked.
If the motor doesn't work, this step can be operated manually to stow the platform under
5. INSTALLATION
The mounting points on the side of step frame are flexible.
This step can be installed at different place such as door, chassis, or other place of vehicle.
It is suitable for many kinds of vehicle
Every step has its own series number which is easy to track
6. APPLICATION
Vehicle with sliding door, hinge door, electric door or plug door
Cars, mini public bus or taxi
Disabled cars
Ambulance
Minivans and Camping car
7. WARRANTY
12 months warranty support.
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.

Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.

There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.

Our goal is to provide the best solutions for customer's requirements.

Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
