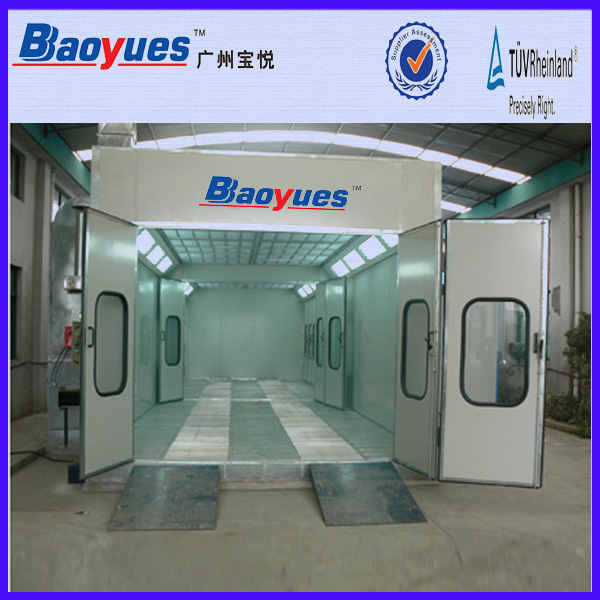

Economic CE Car Spray Booth by-1 with EPS Panel and Pneumatis Damper
| Price: |
US $ 5200-6000set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1set |
| Pay Type: |
T/T |
| Prod Model: |
BY-1 |
| Brand: |
Baoyues |
| Inside Dimension: |
6900*3900*2650 Mm |
| Function: |
Baking and Painting |
| Design: |
European Desgn |
| Intake Unit: |
Turbo Fan |
| Heating Mode: |
Diesel |
| Certification: |
CE |
Product Description
Economic spray booth for car painting and baking
1, CE approved, ISO 9000 safety control
2, Real export manufacture
3, Fibregalss filter
4, Car Paint Room
5, diesel burner and EPS panel
|
Inside Dimension |
6900×3900×2650 mm(L×W×H) |
|
Outside Dimension |
7000×5250×3400 mm(L×W×H) |
|
Front Door |
3-folds, 3000×2600mm(W×H),without any frame, color: blue |
|
Emergency Door |
1 unit, 650×1800mm(W×H), color: white |
|
Basement |
Galvanized steel, 300mm high, 2 rows of grilles and 3 rows of indented plates, painted. 2 pcs ramps, 520×2000mm(W×L) |
|
Wall Panels |
Double skinned, 50mm thick EPS, 0.376mm color steel, tongue and groove interlock structure, width:1150mm, color: white |
|
Light |
Ceiling light: 8units×4pcs=32pcs×36W, with electronic ballast, illuminate≥700Lux
Side light: Optional |
|
Generator cabinet |
Intake from rear side, exhaust from rear upper, quadrate steel frame, galvanized steel cover, with heat preservation material inside. |
|
Intake and exhaust system |
Inlet: 1 unit 7.5KW turbo fan, air capacity is 21000m3/h.
Outlet: Optional |
|
Heating system |
BT18 diesel burner, heating productivity is 180000kcal/h, stainless steel heat exchanger, Max.working temperature is 80 degree, pneumatic damper for spraying to baking cycle. |
|
Purification system |
.Pre-filter, high efficiency filter (ceiling filter), floor filter (fiberglass filter). |
|
Roof |
Galvanized steel |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, temperature controller, failure indicator, power supply. |
|
Total power |
9.5KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
