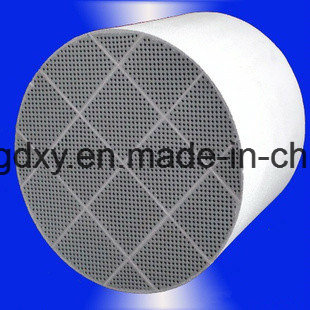

Diesel Particulate Filter

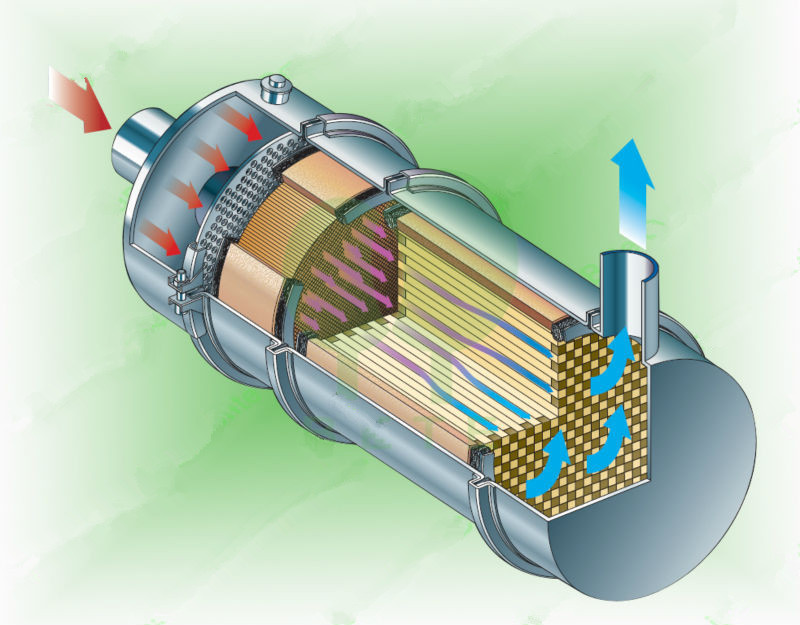

Diesel particulate filter is used to remove black smoke (PM e. G.: Hydrocarbons, soot) from diesel engine exhaust, being a great contribution to the environment because of dealing with the exhaust from diesel engines. The diesel particulate filter can be used in different industrial fields such as environment protection, petrol-chemistry, medicine manufacture, and metallurgy etc.
It has good investment return and broad prospect. The system installed DPF
(Diesel Particulate Filter) been examined for urban bus, forklift, truck & mining constructing equipment.
Characteristics:
*Broad band filtration (the diameters of the filtered particles are 0.2-150 µ M)
*Low back pressure
*High filtration efficiency (can be up to 70%-95%)
*High refractory
*High mechanical properties
| Component | Unit | Data | Component | Unit | Data |
| SiO2 | wt% | 48-51 | Fe2O3 | wt% | <0.5 |
| Al2O3 | wt% | 31-34 | Na2O | wt% | <0.5 |
| MgO | wt% | 14-16 | K2O | wt% | <0.5 |
| Property (uncatalyzed) | 100/17 | 200/12 |
| Cell density | cpsi | 100 | 200 |
| cpscm | 15.5 | 31.0 |
| Wall thickness | inch | 0.017 | 0.012 |
| mm | 0.432 | 0.305 |
| Open frontal area (OFA), % | 34.5 | 34.5 |
| Geometric surface area (GSA) | Inch2 | 33.3 | 47.0 |
| m2/l | 1.31 | 1.85 |
| Hydraulic diameter | Inch | 0.083 | 0.059 |
| mm | 2.11 | 1.49 |
| Modulus of rupture (psi/cpscm) | 350 | 300 |
| Porosity (%) | 48 | 48 |
Coefficient of thermal expansion
102 cm/cm/ (20-800) --maximum average | 5 | 5 |
| Mean pore size (micron) | 13 | 13 |
| Melting temperature (Degree C) | 1460 | 1460 |
| NO. | Item | Our products |

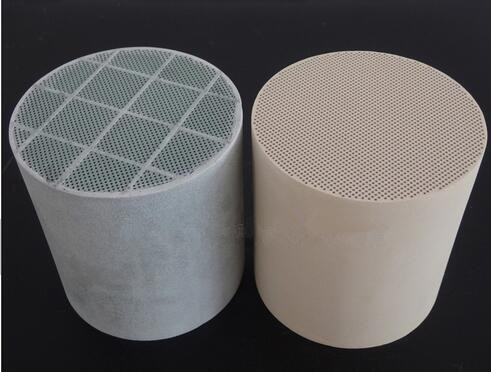

| 1 | Filter material | Cordierite and Silicon carbide |
| 2 | Operating temperature limit (Degree C) | 1000 |
| 3 | Dimension (mm) | Ø144x150,Ø144x152.4,Ø150x150,Ø190x200,Ø190x203, Ø240x240,Ø240x305 Ø260x305, Ø267x305, Ø286x305, Ø286x355,Ø374x270x317 |
| 4 | Cell pitch (mm) | 100 cpsi |
| 5 | Cell wall thickness (mm) | 0.45-0.52 |
| 6 | Cell size (mm) | 2.02-2.09 |
| 7 | Mean pore size (um) | 8-13 |
| 8 | Porosity (gas pocket rate) % | 50-55 |
| 9 | Coefficient of thermal expansion | 1.6x10-6 |
| 10 | Softening temperature (Degree C) | 1360 |
| 11 | Compressive Strength (Mpa) | Lengthwise direction | 10 |
| Lateral direction | 2 |
| 12 | Water absorption rate: | 35% |
