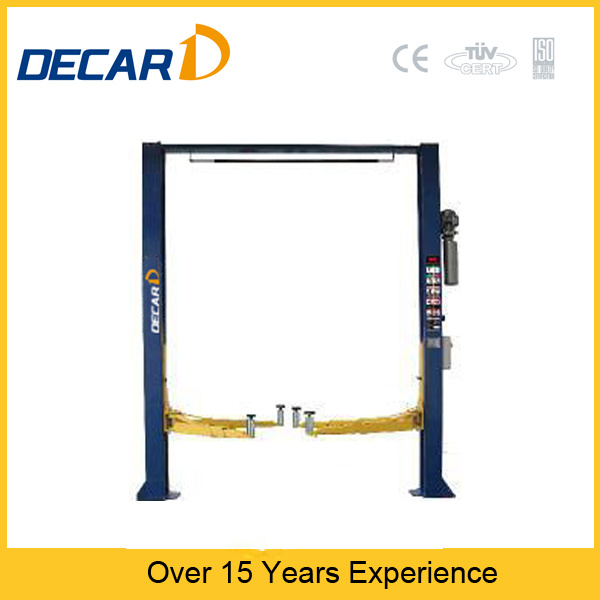

Dk-240we Electric Hydraulic Hoist Two Post Car Lift Price

Prod Model:	DK-240WE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifting Capacity:	4T
Lifting Height(Mm):	1900mm
Overall Width(Mm):	2900*530*700mm
Warranty:	15 Months
Lift Height:	1900mm
Rise & Fall Times:	55s/40s
Type:	Double Cylinder Hydraulic Lift
Design:	Two Post
Certification:	ISO
Brand:	Decar

Product Description

Specification



Model	DK-240WE	DK-250WE
Capacity(kg)	4000kg	5000kg
Lift height(mm)	1900mm	1900mm
Rise time(s)	≤55	≤55
Drop time(s)	≤40	≤40
Power supply(v)	380V/220V	380V/220V
Motor power(kw)	3.0kw	3.0kw



 Main feature

 1.Limit switch

 2.Tray

 3.3+3 corbel

 4.Car protected rubber pad

 5.24V/CE standard ABS control box

 6.SS400 international standard 6mm open flat column

 7.5 degrees lock, swing arm without sway quantity helical

 8.Height from the ground Min:120mm Max:1900mm

 9.Unilateral unlocking device located on one side of the power unit, one-hand operation, safe and convenient

10.Carriage tube adopts 5mm+8mm international standard.

11.Solid 28mm toe board

12.6mm (inside and outside) tube thickness

13.Q235 international 18mm board





Price Terms & Delivery Period


1.Payment Terms: 30% deposit, balance paid before shipment(T/T or L/C or Escrow). You can ask inspector to inspect the machine.

2.Delivery: 5 working days after order confirmed less than one container .

3.Packing: At first use PE film package which can protect this machine very well. Next use plywood box packaging outside, which is suitable for long-distance sea transportation and various types of weather conditions.

4.Guarantee: 15 months quality guarantee.



Service & Support
1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional.

3. Customizd design is avaliable.OEM&ODM are welcome.

4. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers .

5. Special discount and protection of sales area provided to your distributor.

6. Provide different grades of products, to meet market requirements.

7. Purchase the machine from our company, the machine parts are provided within guaratnee period.
