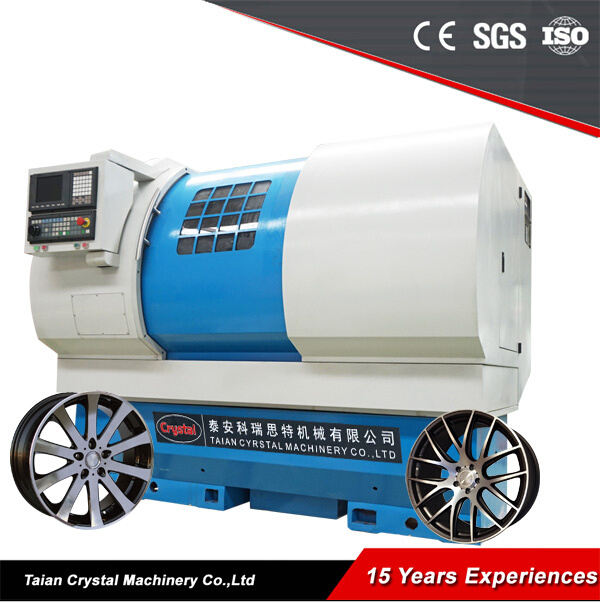

Diamond Cut Wheel Lathe of Refurbishing Car Wheel (AWR3050)

Name: Diamond Cut Wheel Lathe of Refurbishing Car Wheel (AWR3050)
Brand: ibuyautoparts.com
SKU: 698333172
Availability: InStock
Rating: 4.5 (99 reviews)

Price:	US $ 19900/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Diamond Cut Wheel Lathe of Refurbishing Car Wheel (AWR3050 )

Specification:

Supply repairing Alloy wheel up to Max 28"
Automated self plotting Digitization by Probe System
Easy Operate
CE Certification
Free Training video
7x24 hours email or telephone technology supply

Standard Configuration:

SYNTEC 6TA CNC control system
Touch Probe system
Automatic electronic pump lubrication
Manual 3-jaw soft chuck of 10'

ITEMS	AWR3050
Max. swig over bed (mm)(inch)	Φ770(30')
Max. Size of alloy wheel (inch)	28'
Max. swig over cross slide (mm)	Φ550
Cross slide travel (mm)	360
Width of the rail (mm)	400
Length of the rail (mm)	1630
Size of the three-jaw chuck (inch)	15'
Range of spindle speed (RPM)	50~1800
Spindle speed control	Automatic
Spindle bore (mm)	Φ82
Taper of spindle bore	1:20/ Φ 90
Taper of spindle nose	D1-8
Max. size of tool post	25×25mm
Stations of tool carrier	4 position
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8m/min, (X) cross 6m/min
Motor power	7.5KW
Mchine base	Whole cast iron base
Machine size(L×W×H) (mm³)	2690×1850×2010
Net weight	3000kg

Prod Model:	AWR3050
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CNC System:	Syntec
Repairing Alloy Wheel:	Max 28"
Max. Swig Over Bed:	770mm
Max. Swig Over Cross Slide:	550mm
Cross Slide Travel:	360mm
Size Of The Three-Jaw Chuck:	10'
Range Of Spindle Speed:	50-1800rpm
Spindle Bore:	60mm
Stations Of Tool Carrier:	4 Position
Net Weight:	3000kgs
