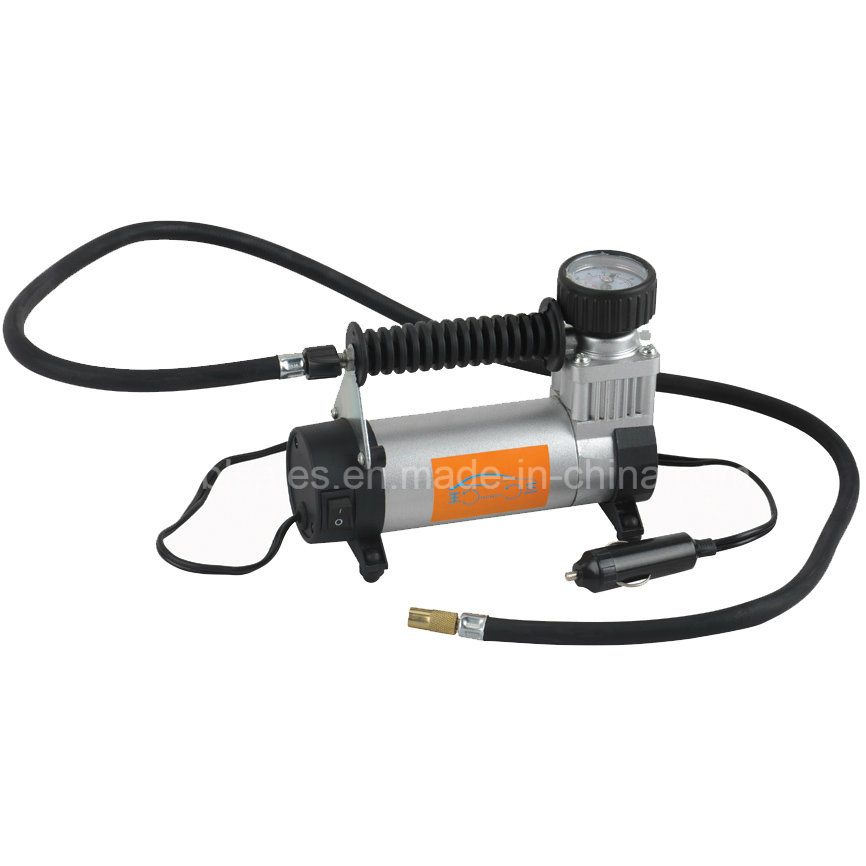

DC 12V 100psi Portable Mini Air Compressor with Gauge Model HD-511

DC 12V 100psi Portable Mini Air Compressor with Gauge Model HD-511
Price: US $ 9-13.7/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T
Heavy duty air compressor with classic design, Hot sale!
Model HD-511

With air gauge 100psi Maximum,show tire pressure during inflating or tire pressure testing.
stainless steel hand, heavy duty ABS strengthened plastic.
ON/OFF switch
Anti-Vibration Rubber feet.
Stainless steel Valves and high performance PTFE piston ring.

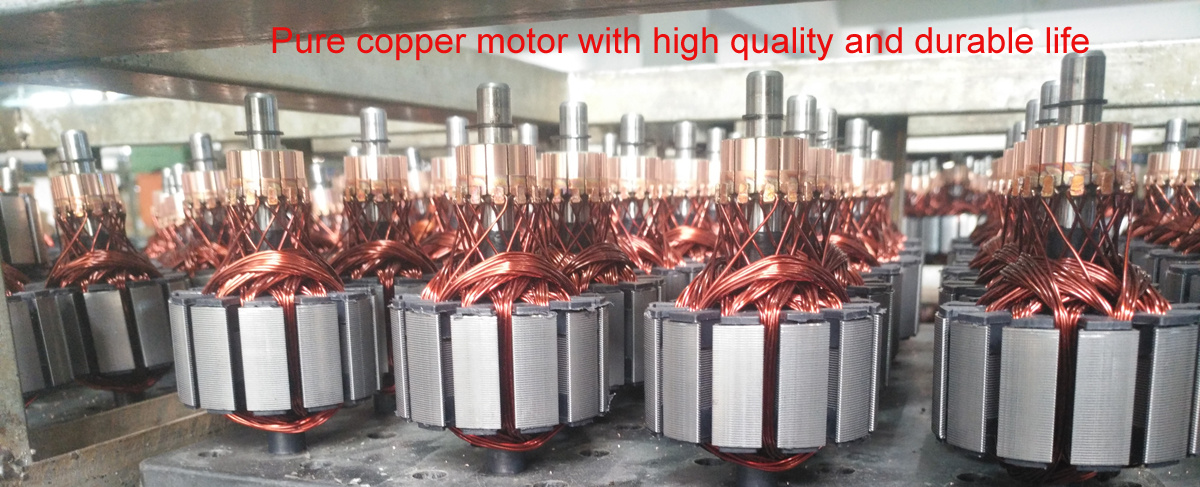

Most powerful permanent magnet mortor by PURE COPPER.





Model code:HD-511
Voltage:DC 12V
Rated Current:12A
Diameter of cylinder:30mm
Air flow:27L/min
Max pressure:150PSI
Inflating time from 0 to 30PSI:
(for tire R15/195/60)
within 3 minutes
Time of continuous work20min
Material of cord & connector:Pure copper
Material of motor coil:Pure copper
Length of hose:1m rubber hose
Length of cord:3m with car cigarette lighter connector plug
Accessories:2PCS nozzle adaptors;
1PC sport needle;
Product size:Length: 17cm, Width: 9cm, Height: 14.5cm

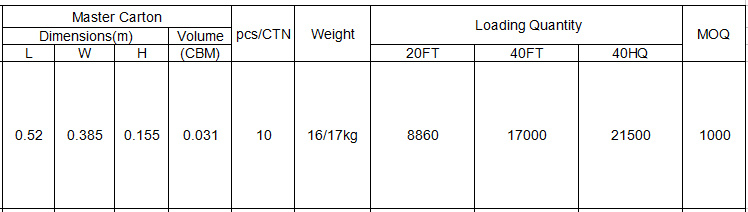

Packaging:PP bag + Gift box +shipping carton or as client's request
Inflatable object:Cars, motorcycles,bikes,rubber boats,sport balls etc.
Product color:As client's request







INSTRUCTIONS FOR USE


1. Plug the power cord into the vehicle cigarette lighter socket.
2. Unscrew the tire valve cap, push the connector firmly onto the tire valve and then secure by depressing the thumlock.
3. Start the compressor using the on/off switch.
4. Ensure the hose is not stretched or kinked during operation.
5.When the correct pressure has been achieved,stop the compressor by pressing the on/off switch.
6. Lift the thumb lock and release the connector from the tire valve.
7. Replace the tire valve cap.


ATTENTION IN USE
*For use with 12V negative earth only.
*Allow unit to cool for 10 minutes after each 10 minutes of continuous operation.
*The gauge fitted to the product provides an indication of approximate pressures only.
*Always ensure the tires are checked after inflation with an accurate gauge.


We are a professional manufacturer of the car air compressor/tire inflator with more than 10 years of the experience in developing, producing, and exporting. OEM service is acceptable,welcome to contact for further communication!










Prod Model: HD-511
Certificate: Ce, GS, RoHS, ISO
Lead Time: 35-40days
OEM Service: Yes
Motor: Pure Copper
Ningbo HengBangLong Electrical Appliance Co., Ltd. Is a professional manufacturer of various air compressors with more than 15 years producing, developing experiences in the compressor area, our products like 12VDC car air compressor, car vacuum cleaner, roadside emergency tools have very good worldwide sales, and popular in USA and European market. Factory covers an area of 14, 000 square meters and with 200 employees, can provide our clients goods on time.

Our factory are ISO 9001: 2000 qualified, we have our own hardware workshop, motor workshop, injection workshop, assembling workshop, and moulding workshop. Most of the main parts of our products are produced in our factory, all completed products are coming from our assemble lines.

We are located in YUYAO, NINGBO city about 1 hours driving away from Ningbo airport or Hangzhou air port, welcome to visit our factory!
