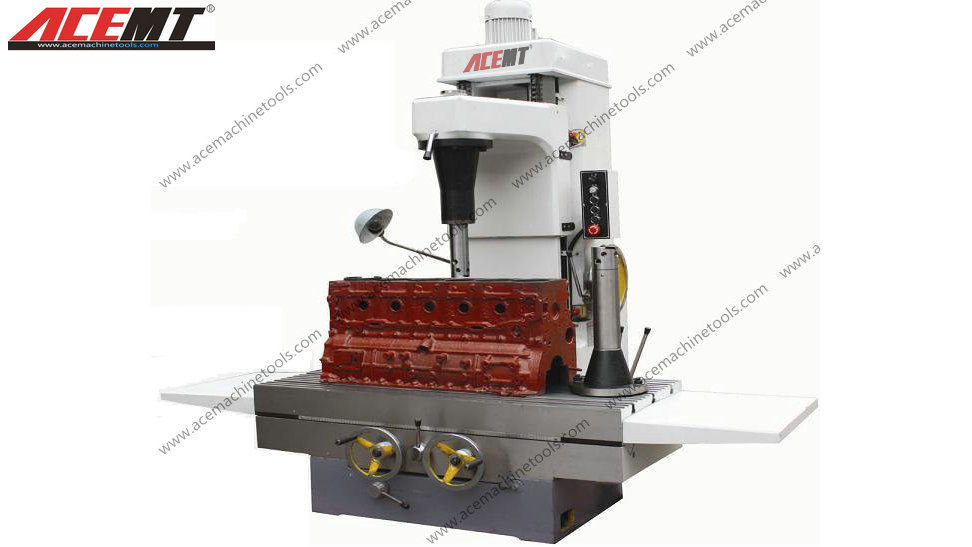

Cylinder Boring Machine (T8018B)

Cylinder Boring Machine (T8018B)
Price: US $ 5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

Product Description:
This machine is mainly used for reboring single line cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.


Features:
1) Reliable performance, processing accuracy and high productivity
2) Easy and flexible operation
3) Air-floating location
4) Quick and precise automatic pressure
5) Spindle speed is suitable
6) With tool setting and measuring devices
7) With a vertical measuring device
8) Good rigidity
Main SpecificationsT8018B
Boring Diameter(mm)30-180
Max. Boring Depth(mm)450
Rotation Speed of Spindle(r/min)175,230,300,350,460,000
Spindle Feed( mm/r)0.05,0.10,0.20
Power(kw)3.75
Overall Dimensions(LxWxH)2000 x 1235 x 1920
Packing Dimensions(LxWxH)1400 x 1400 x 2250
N.W/G.W(kg)2000/2200
Prod Model: T8018B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Boring Diameter(mm): 30-180
Max. Boring Depth(mm): 450
