Cylinder Boring Machine (T170S)

Feature:

Both rotation and teed of the spindle is realized by frequent and stepless saeed-adjutment , and there is character display on the digital readout. The range of speed-adjustment is wide; it is very convenient to operate. The spindle feed and rapid movement may be converted rapidly by regulation resistance.

The hand wheel controlling the vertical movement of spindle is designed on the carriage to make the operation

convenient and easy.

The spindle is designed with fast centering device to improve the working efficiency.

The machine is designed with tool measuring device for the diameter of boring hole to make the Operation convenient and improve the processing operation

The conversation between operator and machine can be realized by the digital readout on the machine, this makes

the operation very convenient and easy

Movement of each part of the machine can be controlled by PLC the machine realizes the automatic processing of boring hole and spindle returning as well as the boring parameter input.

Standard Accessories:

boring spindle  Φ75mm

Tool measuring device

Optional Accessories:

Universal spindle stand

boring spindle  Φ55mm     ( with tool measuring device)

boring bar      Φ40mm

boring bar      Φ20mm

Drilling & reaming chuck

Inner micrometer

Fixture for V-type

Universal fixture for cylinder and head

Quick cylinder fixture

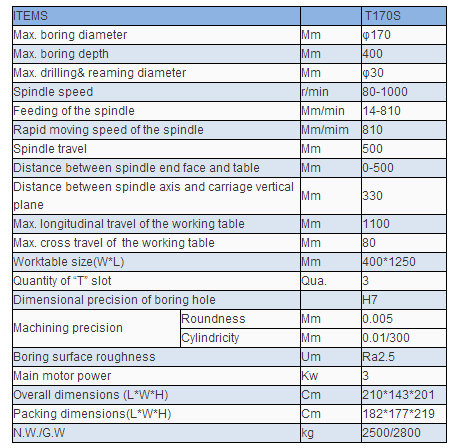

Specification:
