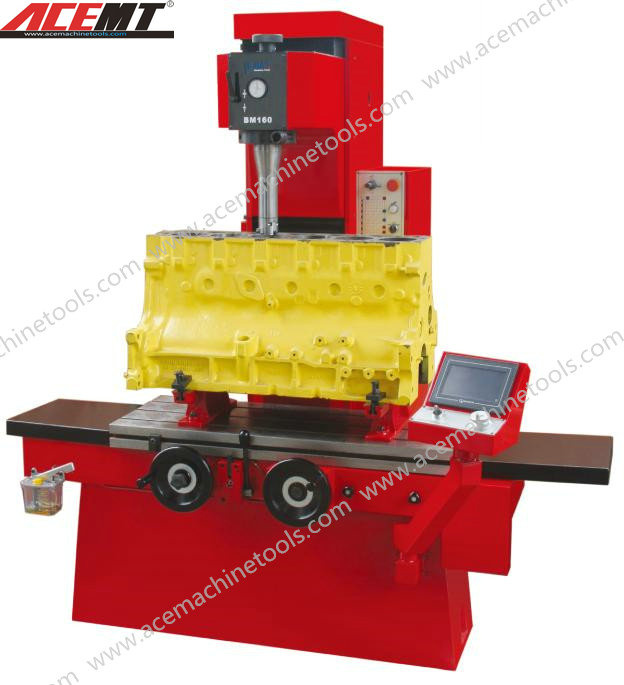

Cylinder Boring Machine (BM160 B160)

Cylinder Boring Machine(BM160 B160)

Feature:
This machine is mainly used for repair small-middle sized engine blocks and head;
Design by Human Engineering, easy to operation;touch screen control.
Spless speed change sevro motor control;
Cutter pouch spindle and the spindle holder, provide high accurate and efficiency.
Centralized lubricate system ensure the long life for the machine use and easy for maintenance;
multi-choice of accessories, boring, milling, drilling and reaming are all available.
As well as motor-cycle blocks.

Specification:

Model		BM160	B160
Control System		EasyTouch 3 Axis	Without
Boring Capacity		160 mm
Max. Boring Depth		350 mm
Max. Milling Area ( L×W )		300×800 mm	Without Milling
Spindle Speed		50 ~ 780 rpm  stepless
Spindle Feeding		10 ~ 900 mm / min(0.01 ~ 0.2 mm / r )
Rated Torque of Boring at 50-500 rpm		120 N.M
Rated Torque of Boring at 500-780 rpm		100 N.M.
Spindle Traverse		550 mm
Distance Between Spindle End Face and Work Table		0 ~ 700 mm
Distance between Spindle Axis and Carriage Vertical Plane		335 mm
Longitudinal Feeding of Work Table by Electric		30 ~ 1200 mm / min	Hand Movement
Longitudinal Quick Travel of Work Table by Electric		1200 mm / min	Hand Movement
Longitudinal Traverse of Work Table		830 mm
Cross Traverse of Work Table		70 mm
Work Table Size  ( L×W )		400×1100 mm
Boring Accuracy		H7
	Roundness for Boring	0.005 mm
Working Accuracy	Cylindricity for Boring	0.015 mm / 300 mm
	Flatness for Milling	0.0127 mm / 305 mm	Without Milling
Surface Roughness	Boring	Ra 0.8
	Milling	Ra 0.8	Without Milling
Power of Spindle Motor		4 kW
Motor Power of Work Table Movement		0.4 kW	Hand Movement
Motor Power of Spindle Vertical Movement		0.4 kW
Overall dimensions ( L×W×H )		2670×1170×1920 mm
Package Size		2200×1200×2200 mm
N.W.		1800 Kg
G.W.		2100 Kg

Standard Accessories
universal adaptor for milling cutter head and bush
spindle 52mm ( Φ50-Φ125mm)
spindel 60mm ( Φ60-Φ160mm)
milling cutter head Φ300mm
toolings
toolholder & boring cutters
measuring device
universal cylinder fixture




Optional Accessories

boring spindle 30mm ( Φ31-Φ54mm)
bush with No.3 morse taper
inner micrometer
cutter grinder
motorcylce cylinder fixture
Universal cylinder head fixture
30 degree and 45 degree V-fixture for boring
30 degree and 45 degree V-fixture for boring & milling
