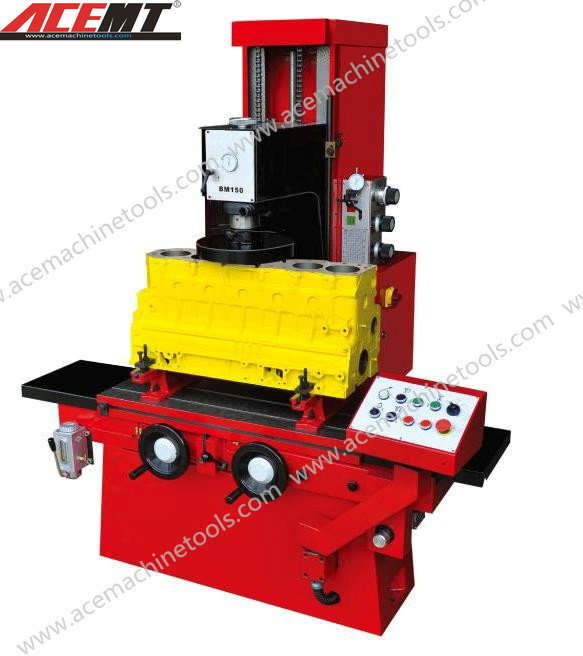

Cylinder Boring Machine (BM150 B150)

Cylinder Boring Machine(BM150 B150)

Feature:



This machine is mainly used for repair small-middle sized engine blocks and head;
Design by Human Engineering, easy to operation;
6 shift speed change from gear transmission box; avoid the torque lose;
Cutter pouch spindle and the spindle holder, provide high accurate and efficiency.
Centralized lubricate system ensure the long life for the machine use and easy for maintenance;
multi-choice of accessories, boring, milling, drilling and reaming are all available. As well as motor-cycle blocks.

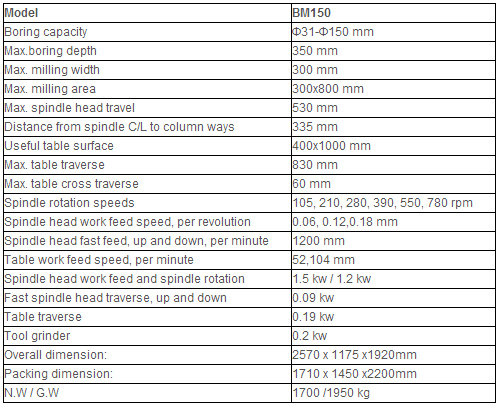

Specification


 Standard Accessories

universal adaptor for milling cutter head and bush
spindle 52mm ( Φ50-Φ125mm)
spindel 60mm ( Φ60-Φ160mm)
milling cutter head Φ300mm
toolings
toolholder & boring cutters
measuring device
universal cylinder fixture





Optional Accessories

boring spindle 30mm ( Φ31-Φ54mm)
bush with No.3 morse taper
inner micrometer
cutter grinder
motorcylce cylinder fixture
Universal cylinder head fixture
30 degree and 45 degree V-fixture for boring
30 degree and 45 degree V-fixture for boring & milling
