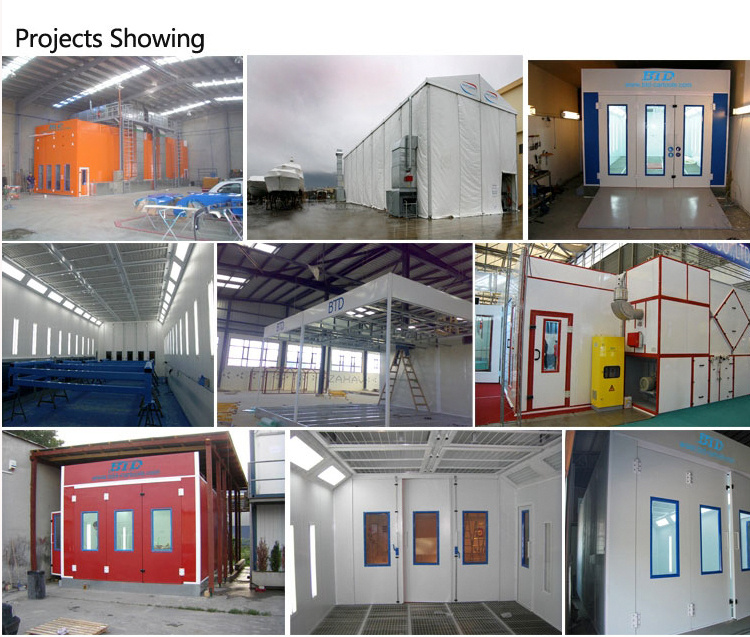

Custom Design Auto Garage Workshop Painting Line
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement | Product:Spray booth non-standard BTD7500-1(7×4×2.65m) |
| Design standard | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |
| Cabin size | |
| Internal size | 7000×4000×2650mm( L×W×H) |
| External size | 7110×5570×3410mm(L×W×H) |
| Basement | |
| Design type of basement | Galvanized plate bend forming, full grids, basement height is 300mm |
| Floor grids load capacity | 650 kg/wheel |
| Filtration surface area | 27m2 |
| Ramps | 6 pieces;size:2000*1030*280 |
| Floor grids description | Size:997*756mm , 40*3mm, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing |
| Cabin | |
| Cabin structure | Wall panel vertical insert |
| Plenum chamber height | 400mm |
| Wall panel | 50mm rock wool panel |
| Roof panel | 50mm rock wool panel |
| Material of wrap edge | 1.5mm galvanized plate bend forming |
| Entrance door | |
| Type of entrance door | Hand made entrance door,2+1 structure |
| Size of entrance door | 3200×2550 mm (W×H) |
| Arrangement and QTY of door | 2 sets, front and rear |
| Description of entrance door | With frame inside, fill with rock wool |
| Service door | |
| Type of service door | Frame structure |
| Size of service door | 800×2000 mm (W×H) |
| QTY of service door | 1 set |
| Description of service door | With safe glass observation window |
| Side lighting | |
| QTY and power | 8 units, each 2×36W, total 576W |
| Lighting arrangement type | On two sides |
| Lighting description | IP55,CE certified electronic ballasts, OSRAM brand light tube |
| Ceiling lighting | |
| QTY and power | 8 units, each 4×36W, total 1152W |
| Lighting arrangement type | On two sides |
| Lighting description | IP55,CE certified electronic ballasts, OSRAM brand light tube |
| Total illumination | >1200Lux |
| Filtration system | |
| Pre-filter | EU3 Grade pocket filter |
| Ceiling filter | EU5 Grade filter, model is SP-600G |
| Bottom paint mist collection | Fiber glass paint-stop filter |
| Exhaust filter | Fiber glass paint-stop filter, with features of big air volume, small resistance and flame resistance and so on |
| Inlet system | |
| Inlet fan type | Direct drive turbo fan |
| Inlet fan power and motor description | 7.5KW,970 rpm, 230 V, 50 Hz |
| Inlet fan parameter | 500pa 28000m3/h |
| Exhaust system | |
| Exhaust fan type | Direct drive turbo fan |
| Exhaust fan power and motor description | 7.5KW,970 rpm, 230 V, 50 Hz |
| Exhaust fan parameter | 500pa 28000m3/h |
| Water based painting fans | Side of cabin install 36 pieces air nozzles, on top of cabin installs 2 sets of 1.5kw centrifugal fans, increase system air supply capacity to dry quicker |
| Equipment empty loaded air speed | +/- 0.32m/ when empty loaded |
| Noise | <78dB |
| Heating system | |
| Heating exchanger material | Stainless steel 1Gr18Ni9Ti(SUS304) |
| Heating exchanger power | 200KW |
| △T temperature increase ability | 20°C(from-10°C to 10°C under painting status) |
| Max working temperature | 80°C |
| Heating time | 3-5 minutes (from 20° to 60°ºС) under baking status |
| Burner model | RG5S diesel burner |
| Ducting configuration | |
| Straight duct | 8 sections |
| 90 degree | 2 sections |
| Rain-hat | 1 section |
| Reducer | 2 sections |
| Control system | |
| Performance standard | Standard Y/Δ step-down start control system |
| PLC | Yes,PLC control,higher reliability,lower failure rate |
| Pressure testing | With pressure gauge to display pressure inside cabin |
| Function | Painting, warm painting, baking, emergency stop, failure indication, over-temperature alarm indication, baking delay stop protection |
| Special noted item | |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
FQA:
Q1: Are you Manufacturer or Trading company? A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.
