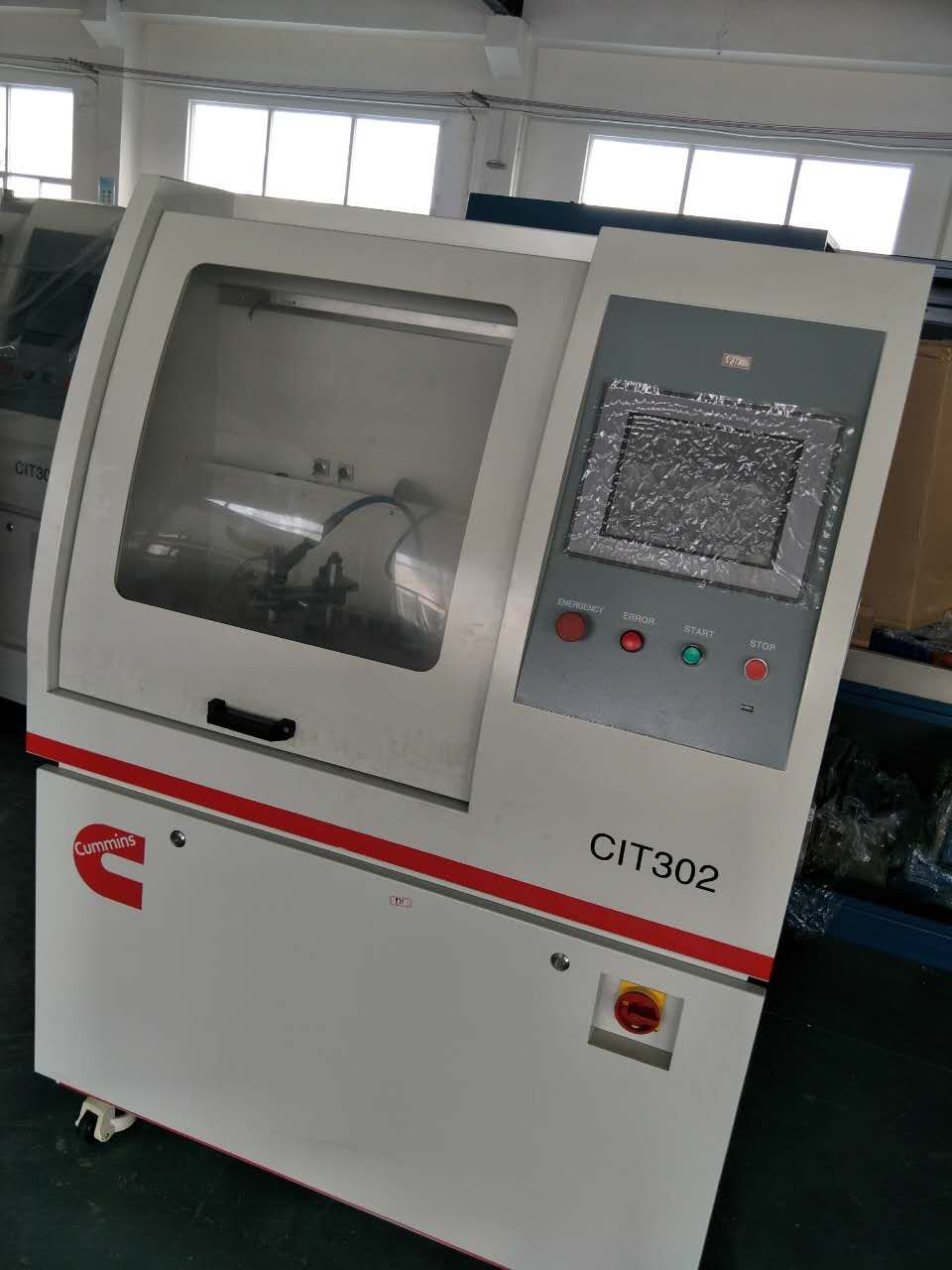

Cummins Cit301 Series Fuel Injector Test Bench for Common Rail Testing Machine

Name: Cummins Cit301 Series Fuel Injector Test Bench for Common Rail Testing Machine
Brand: ibuyautoparts.com
SKU: 825997395
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	US $ 8000-400000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Power: Electronic
Usage: Auto Testing Machine
Color: Dark Blue or on request
Temperature range: 30-50ºC
Motor power: 5.5Kw

Main functions:
1. Test common rail injectors of BOSCH,DELPHI,DENSO,CAT,CUMMINS,PIEZO
2. Check the sealing of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable
10. Determine the injectors are good or bad automatically

Main technical specifications:
1. Motor power: 5.5Kw
2. Variable frequency motor speed range: 0-3000rpm
3. Pressure control range: 10-1800bar
4. Pressure control accuracy: ±1bar
5. Metering range of the flow meter: 0.1ml-2000ml/1000 times
6. Fuel tank capacity: 25L
7. Filter accuracy: 5µm
8. Temperature range: 30-50ºC

Competitive Advantage:
High Quality
Reasonable Price
Good after Service
More Than 8 Years Experience
NEW DESIGN
EASY TO MAINTAIN
High-precision flow meter

Prod Model:	CIT-301-180
Testing Time:	7 Min
Color:	Can Be Appointed by Customer
Frequency:	50Hz/60Hz
Power Supply:	380V/220V
Phase:	Three Phase/Single
Lead Time:	Aroun 15-20 Days
Main Market:	World Wide
Certification:	ISO
Update Method:	by Internet

WABT is committed to provide advanced technical solutions for electronic fuel injection and after treatment system.

WABT has two main business scopes:

1. Intelligent Equipment: Proffessional testing bench and manufacturing equipment for diesel common rail fuel injection system and after-treatment system.

2. Engineering service: Engine&Vehicle consulting and calibration service, precise maintenance intergration solution for after-sales.

WABT is recognized ad a leading enterprise in this area of China.

WABT firmly believe: Accurate testing → Lean production→ Precise matching → Efficient maintenance is a key chain needed for fuel injection manufacturers, engine and vehicle manufacturers, maintenance service station, car owners and even the energy saving and environment-friendly society.
