Crs-4000 Bosch Pumps and Injectors Common Rail System Tester

Crs-4000 Bosch Pumps and Injectors Common Rail System Tester
Price: US $ 1250-1400/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

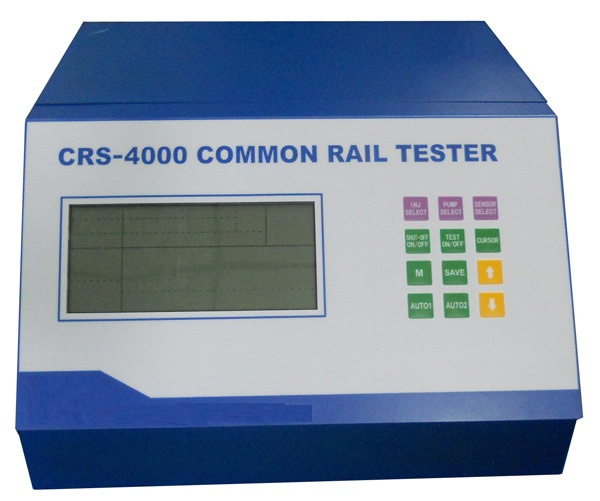

CRS-4000 Bosch Pumps and Injectors Common Rail System Tester

Integrate the mature technologies to test all types of common rail injectors and pumps by Bosch, Delphi, Denso and Siemens.

FOB Price: Get Latest Price
Minimum Order Quantity: 1 Set/Sets
Supply Ability: 50 Set/Sets per Month
Payment Terms: L/C, T/T

It is the electronic equipment for testing all kinds of common rail fuel injection injectors and pumps by Bosch, Delphi, Denso
And Siemens. Upgrade a traditional diesel high pressure pump test bench to a full functioned equipment for all tests of repairing
Common rail injectors, pumps or CR systems.

CR Injector Drivers:
6 solenoid injectors
High voltage for Bosch, Denso injectors
Low voltage for Delphi injectors
6 piezoelectric injectors, made by Siemens
Short circuit protection for both solenoid and piezo injector drivers

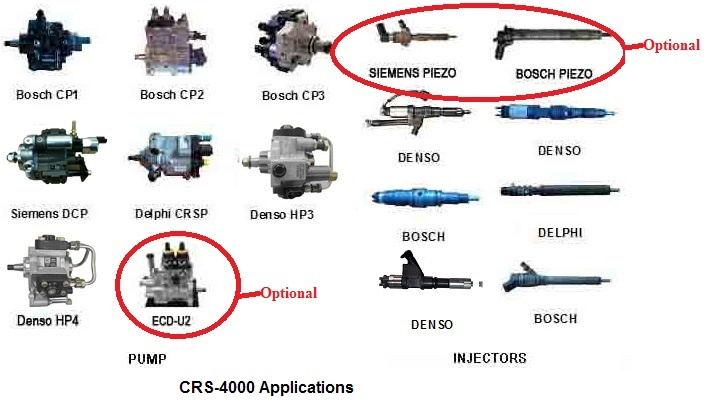

CR Pump Drivers:
Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
Testing pumps with single regulation valve
Bosch CP1/CP2/CP3
Delphi CRSP
Denso HP3/HP4
Testing Siemens DCP pump with two regulation valves
Drive 3 DRVs for testing pump capability
2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump

Fuel Rail Pressure Sensor
Pre-calibrated for Bosch, Delphi, Denso pressure sensors
User calibrateable for different pressure sensor
Automatic rail pressure control
Software based over-pressure protection

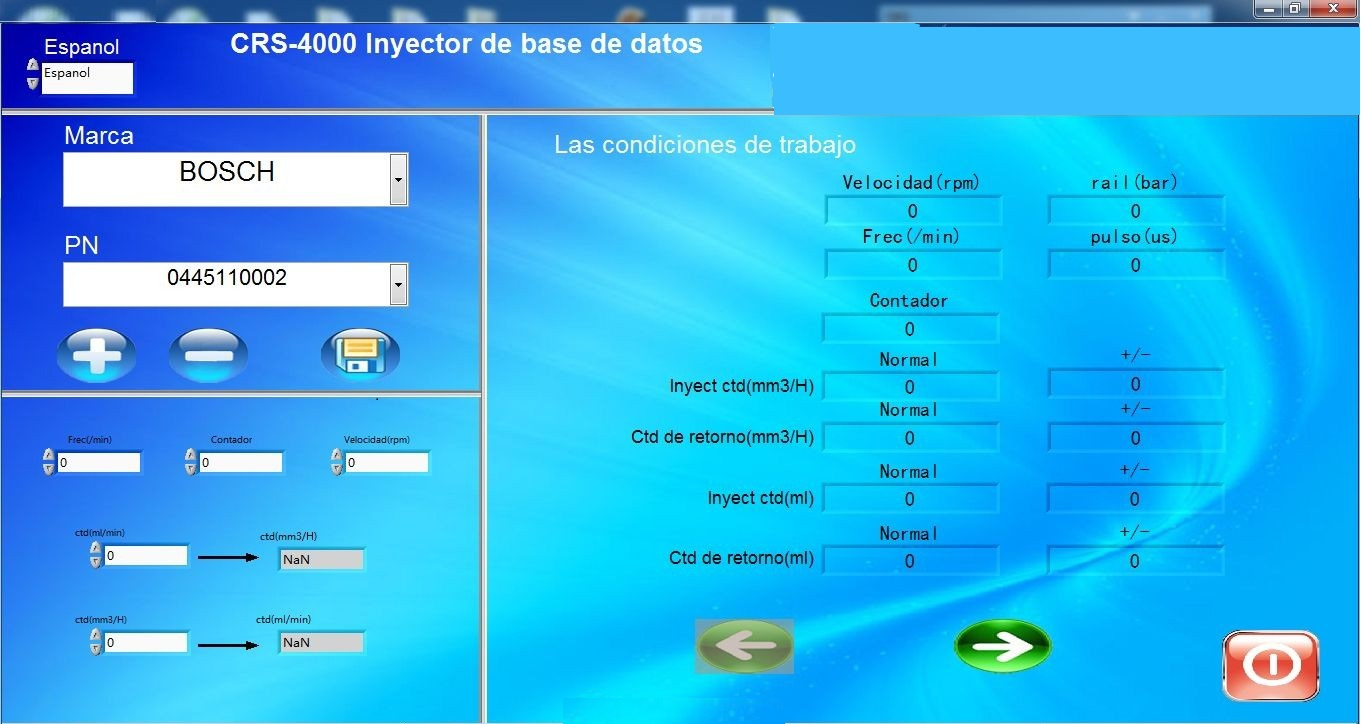

User Interface
Touch screen with a simple 4-key panel
User friendly multi-language interface
User manageable test database
Standard keyboard and mouse
Standard SD card port for system software upgrade, a SD card is included in the package
6 LED to indicate injector status
Standard VGA port for external large screen display

Others
One year manufacture warranty
One year software free upgrade
Injector and pump test procedure and database
DRV adaptor for pump flow rate test (Optional)
Rich accessories
Matching supporting cabinet with 4-wheels(Optional)




Prod Model: CRS-4000
Tester Equipment: Crs-4000 Common Rail System Tester
Test Model: Bosch, Delphi, Denso, Siemens
Tester Function: Common Rail Injectors and Pumps
Quality: Excellent
Price: Competitive
Type: Engine Analyzer
Voltage: AC 220V
Place Of Origin: Hubei, China
Brand Name: 12psdw
Certification: ISO
Update Method: by Hard Disk
Our company was established in 1978 as one of the oldest Chinese agricultural and construction equipment supplier in the overseas market and ISO9001 approved. Annual turn over is over 100 million US Dollars per year.

We supply 18HP-280HP tractor and tractor implements; construction equipment including LIUGONG wheel loader, XCMG wheel loader, truck crane, motor grader, skid steer loader, HC forklift, SD bulldozer, backhoe loader, reach stacker, etc. and its spare parts.

All products are not only well sold in China, but also to Southeast Asia, Middle East, Australia, Africa, Europe and America. In order to meet the requirement of international market, FOTMA will strive to upgrade our products and keep on innovation so as to provide perfect products and best service to the customers both from domestic and abroad.
