Prod Model: |
ETK170/178 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
5/7/10/13HP |
Intake Pressure Impulse: |
Naturally Aspirated |
Speed: |
Speed |
Piston Movement: |
Rotary |
Ignition Mode: |
Compression-Ignition |
Number Of Cylinders: |
Single-Cylinder Machine |
Cooling Cylinder: |
Air-Cooled |
Number Of Strokes: |
Four-Stroke |
Cylinder Arrangement Form: |
Vertical Single Cylinder |
Fuel: |
Diesel Engine |
Product Description
We are a professional factory that can provide diesel engines and diesel generators with high quality.
At the same time, we ues good quality patrs to make up the whole machine.
Welcome to contact with us! It's a pleasure for me to solve problems for you!
Model | 5HP | 7HP | 10HP | 12HP | 14HP |
ETK170F(E) | ETK178F(E) | ETK186F(E) | ETK186FA(E) | ETK188F(E) |
Type | Single cylinder,vertical,direct injection,4-stroke,air cooled diesel engine |
Bore×stroke(mm) | 70×55 | 78×62 | 86×70 | 86×72 | 88×75 |
Displacement(cc) | 211 | 296 | 406 | 418 | 456 |
Compression ratio | 20:01 | 20:01 | 20:01 | 20:01 | 20:01 |
Engine speed(rpm) | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 |
Continuous output(KW) | 2.5/2.98 | 3.4/4.4 | 5.7/6.6 | 5.9/6.9 | 8 |
Maximum output(KW) | 2.8/3.36 | 4.0/4.9 | 6.3/7.34 | 6.5/7.62 | 8.5 |
Fuel consumption rate(g/kw.h) | 280.2/288.3 | 276.1/285.6 | 273.5/281.5 | 273.5/281.5 | 273.5/281.5 |
Fuel tank capacity(L ) | 2.5 | 3.5 | 3.5 | 3.5 | 5.5 |
Lube capacity(L) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 |
Crankshaft direction | Clockwise from flywheel end |
Cooling type | Force air-cooled |
Lubrication type | Pressure splash |
Starting system | Recoil manual start/optional electric start |
Packing dimensions(L×W×H)mm | 450*400*465 | 480*460*520 | 500*460*560 | 500*460*560 | 510*470*555 |
Weight(kg) | 34 | 48 | 51 | 51 | 53 |
20FT container (pcs) | 350 | 240 | 220 | 220 | 200 |
Factory Information

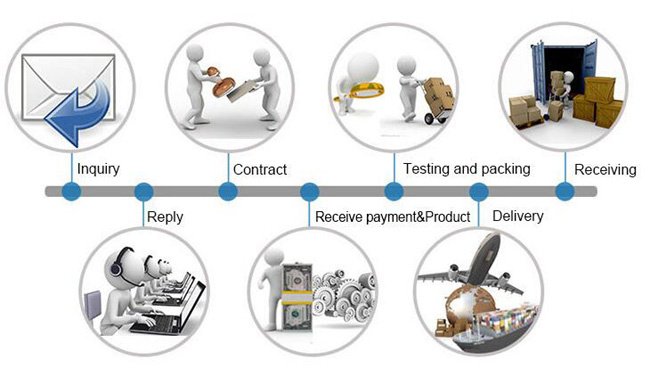

Trading Process
FAQ1.Q:How about guarantee?
A: within 1year after goods is discharged in the destination. We will supply the consumables if it broken under normal using. For example, fuel cock,spark plug,recoil starter,etc
2.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
3.Q:What is you deliver time ?
A: Within 15-20days after got your T/T deposit.
4.Q: What certificate do you have for the engine diesel generator set ?
A: There are ISO 9001:2008, CE etc.
5.Q: If I want to be your products distributor in our country, what is your distribution policy?
A: ETK power welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
