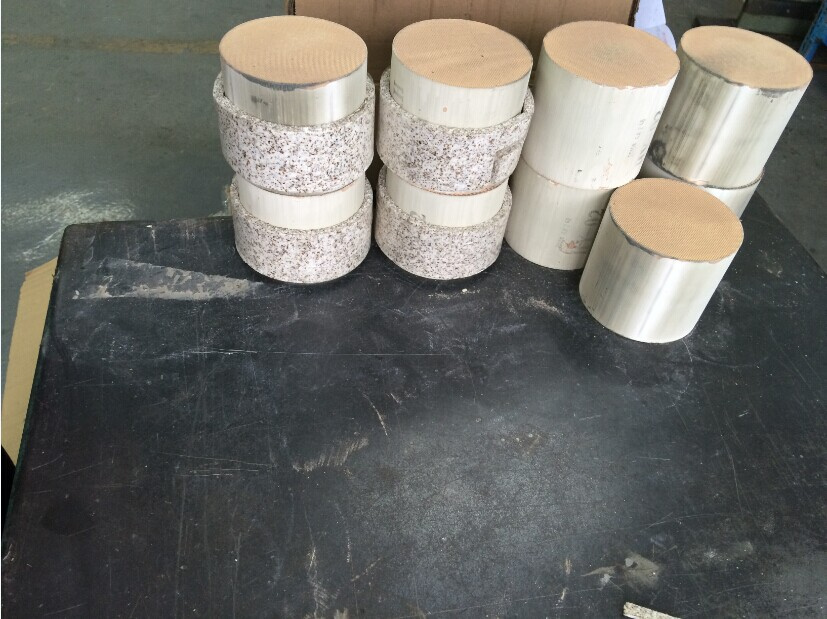

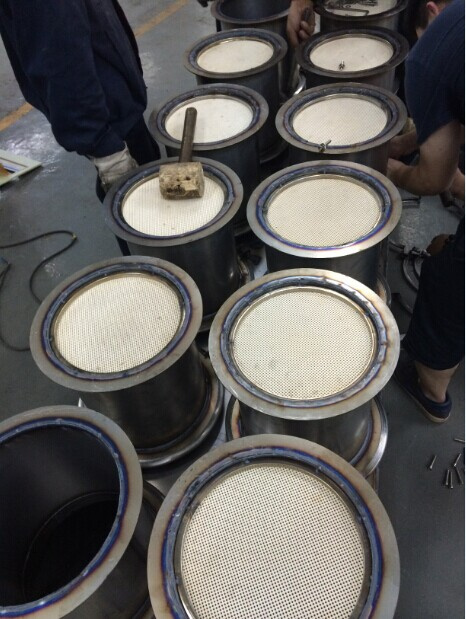

Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.
Because of it's features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It's widely used in many fields. The gasoline engine tail gas purifier carrier coated with catalyst is suitable for and is currently one of the most important means to control tail gas purification for gasoline engine discharge of tail gas in motorized vehicles. Our honeycomb ceramics are characterized by unique honeycomb structure, low expansion coefficient, good thermal stability, large specific area and low pressure loss, and reach domestic advanced level.
Advantages:
*Low thermal expansion coefficient
*High porosity of hole on the wall, good liquidity and uniform distribution
*High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
*The pressure drop is small
*Cold start performance is good, low light-off temperature, high conversion efficiency
Item Type | Alumina | Mullite | Dense Cordierite | Porous Cordierite | Mullite - Cordierite | Stoneware |
Chemical composition , % | Al 2 O 3 | 48~55 | 66~72 | 32~36 | 32~37 | 55~65 | 20~26 |
SiO 2 | 40~45 | 25~30 | 45~52 | 46~52 | 28~36 | 68~75 |
MgO | / | / | 5~8 | 8~12 | 2.5~3.2 | 0.2~0.3 |
K 2 O+NaO 2 +CaO | 4.0~5.5 | ≤ 1.0 | ≤ 3.0 | ≤ 2.0 | ≤ 1.0 | 2.5~4.0 |
Density , g / cm 3 | 2.7 | 2.9 | 2.4~2.6 | 1.9~2.0 | 2.9~3.2 | 2.3~2.5 |
Coefficient of thermal expansion (20~1000), × 10-6. | 5~7 | 5.5~6.5 | 2.5~3.5 | 1.3~2.5 | 2.5~4.0 | 5~7 |
Heat capacity (20~1000),J/kg. | 800~900 | 1100~1300 | 800~1200 | 750~900 | 850~1100 | 840~920 |
Thermal Conductivity (20~1000),W/m. | 1.5~2.5 | 1.5~2.0 | 1.5~2.5 | 1.3~1.5 | 1.5~2.3 | 1.0~1.2 |
Spalling resistance. | ≥ 150 | ≥ 350 | ≥ 250 | ≥ 360 | ≥ 250 | ≥ 150 |
Max. Working temp. | 1300 | 1600 | 1300 | 1300 | 1400 | 1300 |
Shape | Hole density (hole/in 2 ) | Size (mm) | Size (inch) |
Round | 300 CPSI | Φ 101.6 x152.4 | 4 × 6 |
Round | 300 CPSI | Φ 118.4 x100 | 4.66 × 3.94 |
Round | 300 CPSI | Φ 118.4 x152.4 | 4.66 × 6 |
Round | 300 CPSI | Φ 150 x100 | 5.9 × 3.94 |
Round | 300 CPSI | Φ 170 x100 | 6.69 × 3.94 |
Round | 300 CPSI | Φ 190 x100 | 7.48 × 3.94 |
Round | 300 CPSI | Φ 210 x130 | 8.26 × 5.12 |
Round | 300 CPSI | Φ 240 x76.2 | 9.45 × 3 |
Round | 300 CPSI | Φ 240 x100 | 9.45 × 3.94 |
Oval | 300 CPSI | Φ 120.6 x 80 x 152.4 | 4.75 × 3.15 × 6 |
Oval | 300 CPSI | Φ 144.8 x 81.3 x 152.4 | 5.7 × 3.2 × 6 |
Oval | 300 CPSI | Φ 169.7 x 80.8 x 115 | 6.68 × 3.18 × 4.52 |
Round | 400 CPSI | Φ 150 x100 | 5.9 × 3.94 |
Round | 400 CPSI | Φ 144 x 152.4 | 5.66 × 6 |
Round | 400 CPSI | Φ 118.4 x 152.4 | 4.66 × 6 |
Round | 400 CPSI | Φ 115.4 x 152.4 | 4.54 × 6 |
Round | 400 CPSI | Φ 106 x 100 | 4.17 × 3.94 |
Round | 400 CPSI | Φ 103 x 100 | 4.05 × 3.94 |
Round | 400 CPSI | Φ 101.6 x 152.4 | 4 × 6 |
Round | 400 CPSI | Φ 100 x 100 | 3.94 × 3.94 |
Round | 400 CPSI | Φ 93 x 152.4 | 3.66 × 6 |
Round | 400 CPSI | Φ 83 x 152.4 | 3.26 × 6 |
Round | 400 CPSI | Φ 80 x 100 | 3.15 × 3.94 |
Round | 400 CPSI | Φ 76.2 × 50 | 3 × 1.97 |
Round | 400 CPSI | Φ 60 × 85 | 2.36 × 3.34 |
Oval | 400 CPSI | Φ 169 x 85.7 x 115 | 6.65 x 3.37 x 4.52 |
Oval | 400 CPSI | Φ 169 x 80.8 x 115 | 6.65 x 3.18 x 4.52 |
Oval | 400 CPSI | Φ 148 x 84 x 152.4 | 5.82 x 3.3 x 6 |
Oval | 400 CPSI | Φ 144.8 x 81.3 x 152.4 | 5.7 x 3.2 x 6 |
Oval | 400 CPSI | Φ 127 x 63.5 x 152.4 | 5 x 2.5 x 6 |
Oval | 400 CPSI | Φ 93 x 61 x 90 | 3.66 x2.4 x 3.54 |
Oval | 400 CPSI | Φ 120.6 x 80 x 152.4 | 4.75 x 3.15 x6 |
Oval | 400 CPSI | Φ 143 x 98 x 152.4 | 5.63 x 3.86 x 6 |
Oval | 400 CPSI | Φ 147 x 95 x 152.4 | 5.78 x 3.74 x 6 |
Oval | 400 CPSI | Φ 177.8 x 114.3 x 170 | 7 x 4.5 x 6.7 |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
